POSEIDON Jetstream Service Manual

CYKLON
1.0:E60

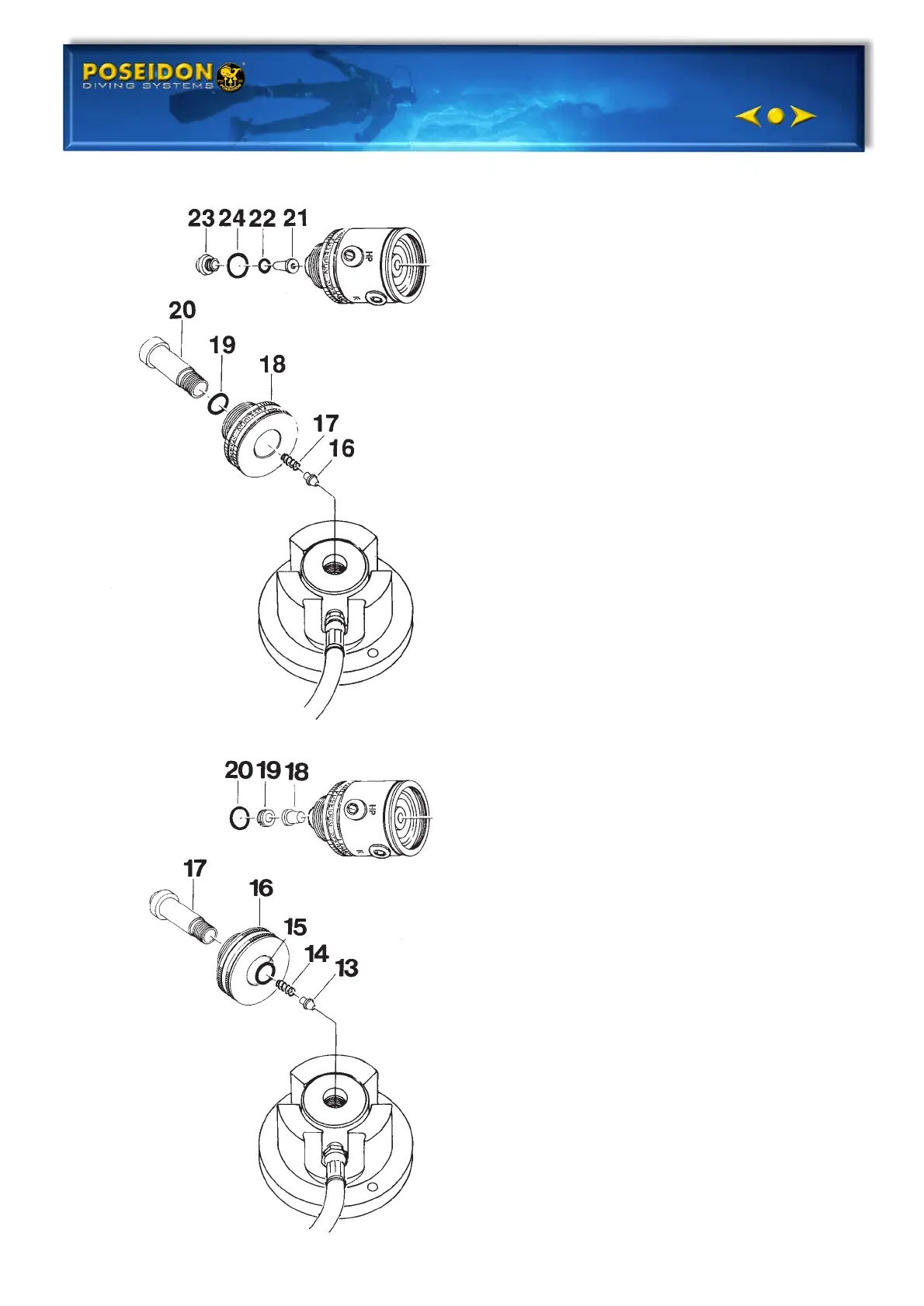

FIRST STAGE
3070 (2422)
1. Remove the locking screw (23) with a 6
mm Allen wrench. 20 Remove the o-
ring (24), cup filter (21) and o-ring (22).
2. Place the first stage in the fixture.
Remove the connection (20) with 6 mm
Allen wrench.
3. Remove the wheel (18) and the o-ring
(19) with an o-ring remover. Make sure
the sealing surfaces are not damaged.
4. Remove the spring (17) and the valve
piston (16).
5. Disconnect the low pressure hose from
the first-stage valve with a 13 mm
open-end wrench.
6. Remove the o-ring from the low
pressure hose. Make sure the sealing
surfaces are not damaged.
FIRST STAGE
2305
1. Remove the o-ring (20) with an o-ring
remover. Make sure the sealing surfaces
are not damaged.
2. Remove the locking screw (19) with a
8.5 mm screwdriver. Remove the cup
type filter (18).
3. Place the first stage housing in the
fixture. Remove the connection (17)
using a 6 mm Allen wrench.
4. Remove the o-ring (15) with an o-
remover. Make sure the sealing surfaces
are not damaged.
5. Remove the wheel (16).
6. Remove the spring (14) and the valve
piston (13).
7. Disconnect the low pressure hose
from the first stage valve with a 13
mm openend wrench.
8. Remove the o-ring from the low
pressure hose. Make sure the sealing
surfaces are not damaged.
