JETSTREAM
1
.0:E14
SEC
OND
ST
A
GE

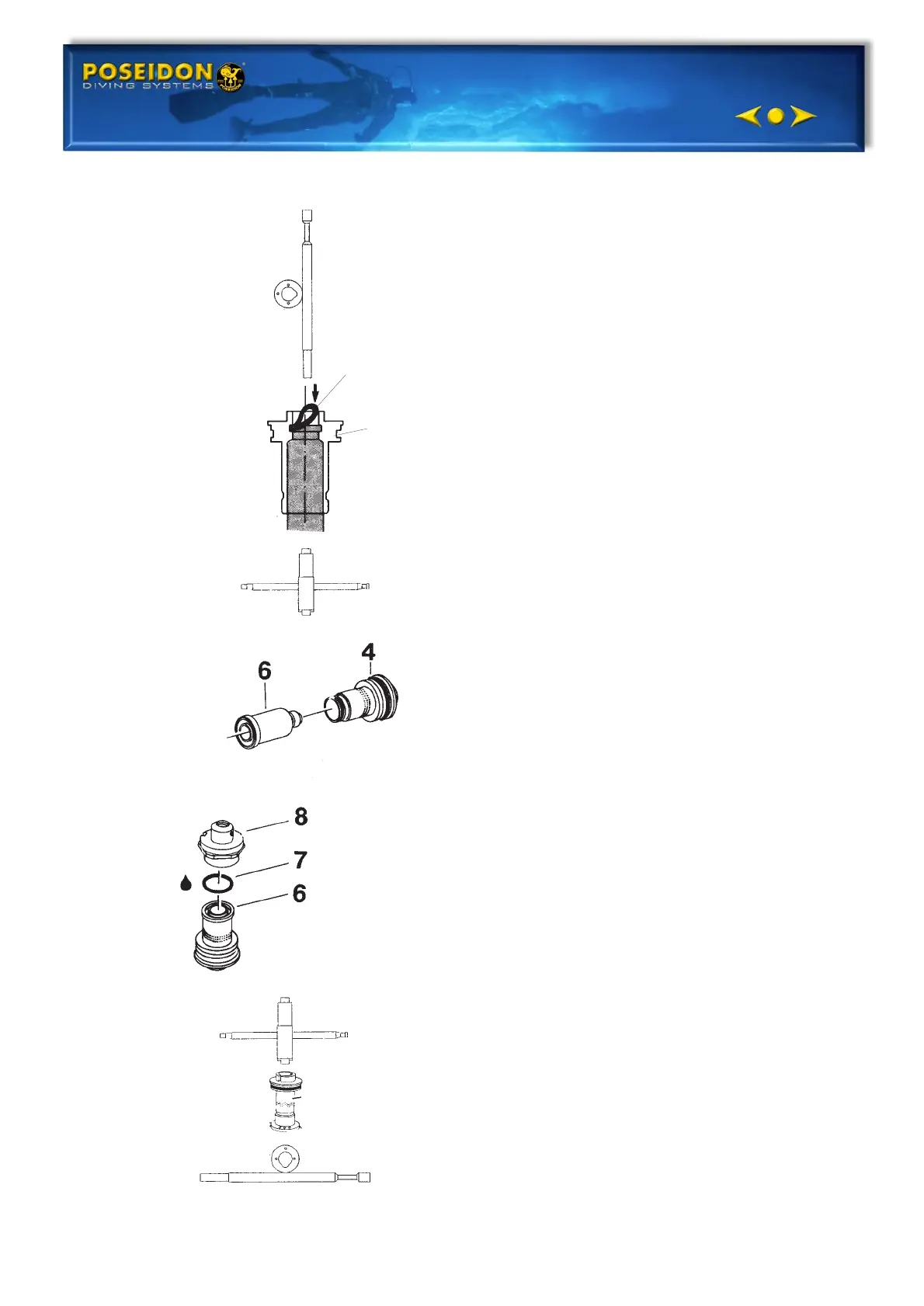

Assembly:
1.
Mount the
o-rings
(5,3)
on
the
val
ve
ho
u
si
n
g
(4
).
Use
th
e
to
ol
s.
See diag
ram.
2.
Install the
valve inser
t
(6)
in
the
val
ve
ho
u
si
n
g
(4
).
3.
Place the
o-ring
(7)
in
the
groove of
the
valv
e inser
t (6).
Lub
r
ic
a
te
th
e
t
h
re
a
d.
Ins
t
al
l
t
h
e
val
ve
ho
u
si
n
g
nu
t
(
8)
.
4.
Place the
valve housing
in
the
handle.
T
ighten with
a
tool.
See diag
ram.
3
4
11
13
Table of Contents
Cleaning
2
Lubricate Used
2
Function
3
Technical Data
4
Repair Instructions Second Stage Demand Valve
8
Second Stage Removal
9
Switch Removal
9
Regulator Cleaning
11
Checks before Installing
11
Second Stage - Assembly
12
Switch Installation
13
Low Pressure Hose with Safety Valve
14
Assembly
14
Repair Instruction First Stage Reducing Valve
15
First Stage Valve Removal
16
Secondary Side
16
Balance Housing Removal
17
First Stage 2962, 3257, 3580, 3585 Removal
18
First Stage 2801 Removal
19
First Stage 2801, 3257 10, 3585 10 Removal
20
First Stage 2801, 2808, 2962, 3257,3580, 3585
21
First Stage Cleaning and Checking
22
First Stage Assembly
24
First Stage 2962, 3257, 3580, 3585 Assembly
25
First Stage 2801, 3257 10, 3585 10 Assembly
26
First Stage 2808 Assembly
27
First Stage Balanced Housing
28
Repair Instructions First Stage Reducing Valve
30
First Stage Valve 3790 Secondary Side
31
First Stage Valve with Yoke
31
First Stage Valve 3790 Removal
32
First Stage Valve 3790 - Parts to be Replaced
35
First Stage Valve 3790 Checking
35
First Stage Valve 3790 Assembly
36
First Stage Valve with G 5/8"
36
Testing and Adjustment of Regulator Jetstream Art. No. 2960, 3960
41
Second Stage: Tightness Testing of Low Pressure Valve Withservo Valve
41
Adjustment of the Inhalation Resistance
41
Checking the Purge Button
41
Testing and Adjustment of Regulator Jetstream Art. No. 2940
42
Poseidon Cyklon 300 Technical Data
44
Second Stage 1133 Exploded View
47
Second Stage 1133, 3224, 3354, 3536 Removal
48
Second Stage 1133, 3224, 3354, 3536 Cleaning
51
Second Stage 1133, 3224, 3354, 3536 Checks before Installing
51
Second Stage 1133, 3224, 3354, 3536 Assembly
52
First Stage Reducing Valve Art. No. 2305, 2422, 3070 Exploded View
57
First Stage Valve 2305, 2422, 3070 Secondary Side Removal
58
First Stage 3070 (2422)
59
First Stage 2305
59
When Servicing the Regulator - Parts to be Replaced
61
Cleaning and Checking
61
Greasing and Assembly
62
First Stage 3070, 2422
63
First Stage 3070, 2422 / 2305
65
Old Type Spring Housing
66
First Stage Reducing Valve View - 2801, 2808, 2962, 3257, 3580, 3585
67
First Stage Valve 2801, 2808, 2962, 3257, 3580, 3585 Removal
68
Balance Housing
69
First Stage 2962, 3257, 3580, 3585 - Removal
70
First Stage 2801 - Removal
71
First Stage 2801, 3257 10, 3585 10 - Removal
72
First Stage 2801, 2808, 2962, 3257, 3580, 3585
73
First Stage 2962, 3257, 3580, 3585 - Assembly
77
First Stage 2801, 3257 10, 3585 10 - Assembly
78
First Stage 2808 - Assembly
79
Repair Instructions First Stage Reducing Valve 3720, 3720 10
82
First Stage Valve 3720 Secondary Side
83
First Stage Valve 3720 Removal
84
First Stage Valve 3720 - Parts to be Removed When Servicing Regulagor
87
First Stage Valve 3720 Checking
87
First Stage Valve 3720 Assembly
88
Testing and Adjusting of Regulator Cyklon 300 Art. No. 2980
93
Adjustment of the Clearance
93
Adjustment of Ejector Sleeve
93
Testing and Adjusting of Regulator Cyklon 5000 (Diveair) 2950, 3950
94
Triton 2000 Technical Data
96
3755 - Second Stage Repair Instructions
97
Second Stage 3755 Removal
98
Second Stage 3755 - Checks before Assembly
101
Second Stage 3755 Assembly
102
Assembly of Low Pressure Valve
102
First Stage Reducing Valve 3880, 3880-10 Repair
105
First Stage Valve 3880, 3880 10 Secondary Side
106
First Stage Valve 3880, 3880 10 Removal
107
First Stage Valve 3880, 3880 10 Cleaning
109
First Stage Valve 3880, 3880 10 - Parts to be Replaced
110
First Stage Valve 3880, 3880 10 Checking
110
First Stage Valve 3880, 3880 10 Assembly
111
Testing and Adjustment of Regulator Triton 2000 Art. No. 3750
116
Checking and Adjustment of the Inhalation Resistance
116
Tools View
117
Tools List
118
1133 Second Stage Cyklon 300, Yellow/Black View
119
3354 Second Stage Cyklon 5000 (Diveair), Black View
119
3536 Second Stage Octopus, Yellow View
119
1133 Second Stage Cyklon 300, Yellow/Black Parts List
120
3354 Second Stage Cyklon 5000 (Diveair), Black Parts List
120
3536 Second Stage Octopus, Yellow Parts List
120
2305 First Stage, Cyklon 300 View
121
2305 First Stage, Cyklon 300 Parts List
122
2801 First Stage, Wheel G 5/8" / 2808 First Stage, Yoke View
123
2801 First Stage, Wheel G 5/8" / 2808 First Stage, Yoke Parts List
124
2961 Second Stage Jetstream,Usa=Odin, Black - View
125
2941 Second Stage Jetstream,Usa=Odin, Yellow/Black - View
125
3546 Second Stage Octopus, Yellow - View
125
2941 Second Stage Jetstream,Usa=Odin, Yellow/Black - Parts List
126
2961 Second Stage Jetstream,Usa=Odin, Black - Parts List
126
3546 Second Stage Octopus, Yellow - Parts List
126
2962 First Stage, Jetstream (USA = ODIN) View
127
2962-10 First Stage, Jetstream YOKE View
127
3257 First Stage, Diveair (USA = Cyklon 5000) View
127
3257-10 First Stage, Cyklon 5000 (Diveair) YOKE View
127
2962 First Stage, Jetstream (USA = ODIN) Parts List
128
2962-10 First Stage, Jetstream YOKE Parts List
128
3257 First Stage, Diveair (USA = Cyklon 5000) Parts List
128
3257-10 First Stage, Cyklon 5000 (Diveair) YOKE Parts List
128
3070 First Stage, Cyklon 300 and Oceanair (Usa=Thor) View
129
3070 First Stage, Cyklon 300 and Oceanair (Usa=Thor) Parts List
130
3580 First Stage, Jetstream / 3585 First Stage, Cyklon 5000 View
131
3580 First Stage, Jetstream / 3585 First Stage, Cyklon 5000 Parts List
132
3580-10 First Stage, Jetstream (YOKE) View
133
3585-10 First Stage, Cyklon 5000 (YOKE) View
133
3580-10 First Stage, Jetstream (YOKE) Parts List
134
3585-10 First Stage, Cyklon 5000 (YOKE) Parts List
134
3790 First Stage G 5/8" View
135
3790 First Stage G 5/8" Parts List
136
3790-10 First Stage Yoke View
137
3790-10 First Stage Yoke Parts List
138
3880 First Stage G 5/8" View
139
3880 First Stage G5/8" Parts List
140
3755 Second Stage, Black / 3755 30 Second Stage, Yellow View
141
3755 Second Stage, Black / 3755 30 Second Stage, Yellow Parts List
142
Service Kit no 3424 for Breathing Regulator JETSTREAM no 2960
143
Service Kit no 3827 for Breathing Regulator JETSTREAM no 3960
144
Service Kit no 3423 for Breathing Regulator OCEANAIR no 2940
145
Service Kit 3430 for Breathing Regulator CYKLON 300 (G 1/8") no 1908
146
Service Kit 3824 for Breathing Regulator CYKLON 300 (UNF 3/8") no 2980
147
Service Kit no 3422 for Breathing Regulator CYKLON 5000 no 2950
148
Service Kit no 3825 for Breathing Regulator CYKLON 5000 no 3950
149
Service Kit no 3769 for First Stage no 3720, 3790 and 3880
150
Kit 3872 for First Stage no 3720, 3790, 3880 W/ O-Rings of Viton
151
Service Kit no 3826 for Breathing Regulator TRITON no 3750
152
Service Kit no 3549 for Second Stage Jetstream/Oceanair
153
Service Kit no 3551 for Second Stage Cyklon 300/5000
154
Other manuals for POSEIDON Jetstream
