JETSTREAM
1.0:E30
FIRST STAGE
BALANCED HOUSING

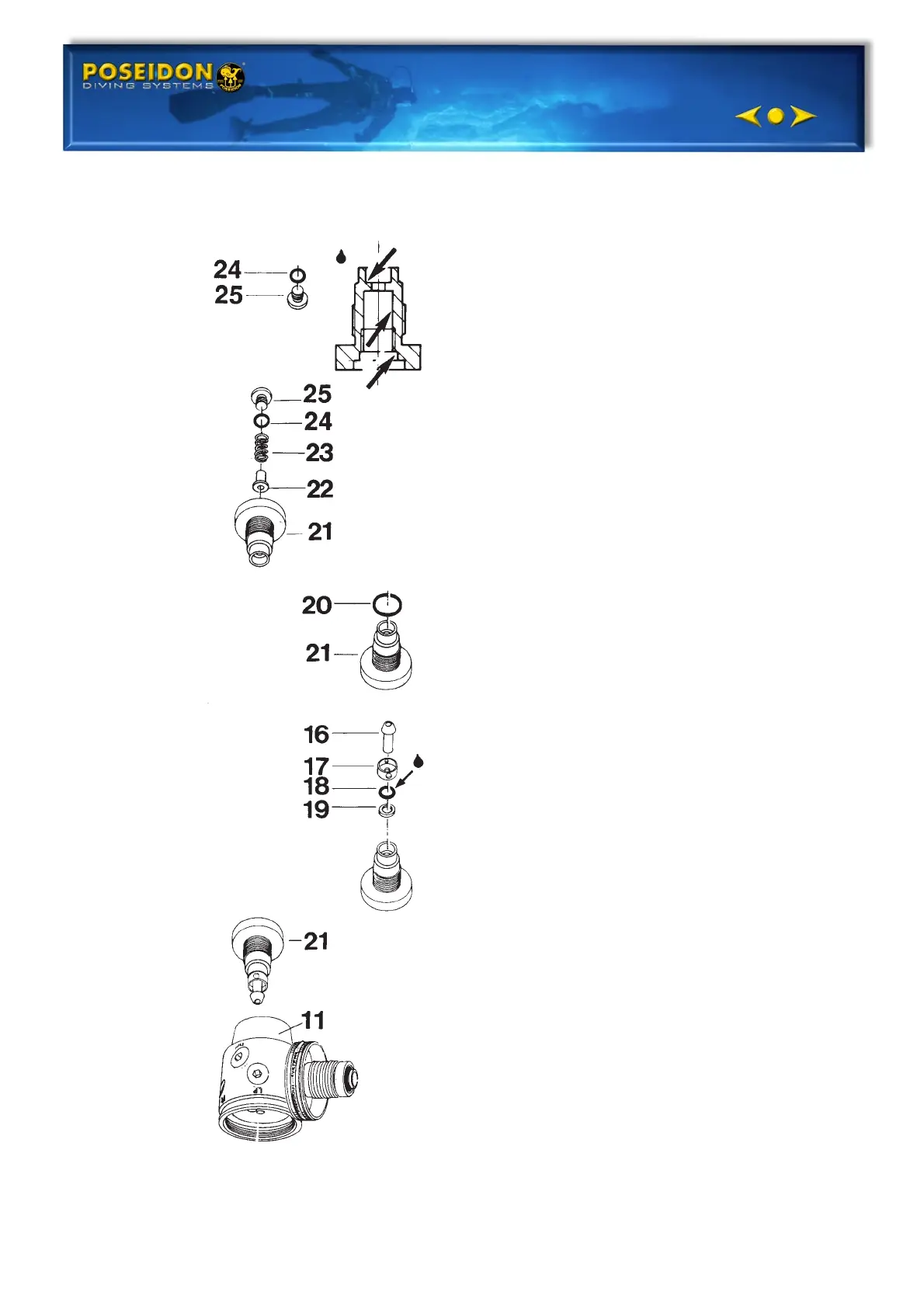

1. Install the o-ring (24) on the
blind screw G 1/8’’ (25).
2. Grease the inside of balanced
housing (21).
3. Install the spring guide (22) and
the spring (23). Screw in the
blind screw (11) with a 5 mm
Allen wrench. The blind screw
should be tightened while the
balanced housing is held in the
valve housing.
4. Install the o-ring (20) at the
balanced housing .
5. Install the washer (19) and the
o-ring (18). Grease the inside of
o-ring and the washer. Install
the spacing sleeve (17) and the
valve piston (16).
6. Install the balanced housing
(21) in the valve housing (11)
and tighten the blind screw
with a 5 mm Allen wrench.
