CYKLON
1.0:E73
FIRST STAGE
2801, 3257 10, 3585 10

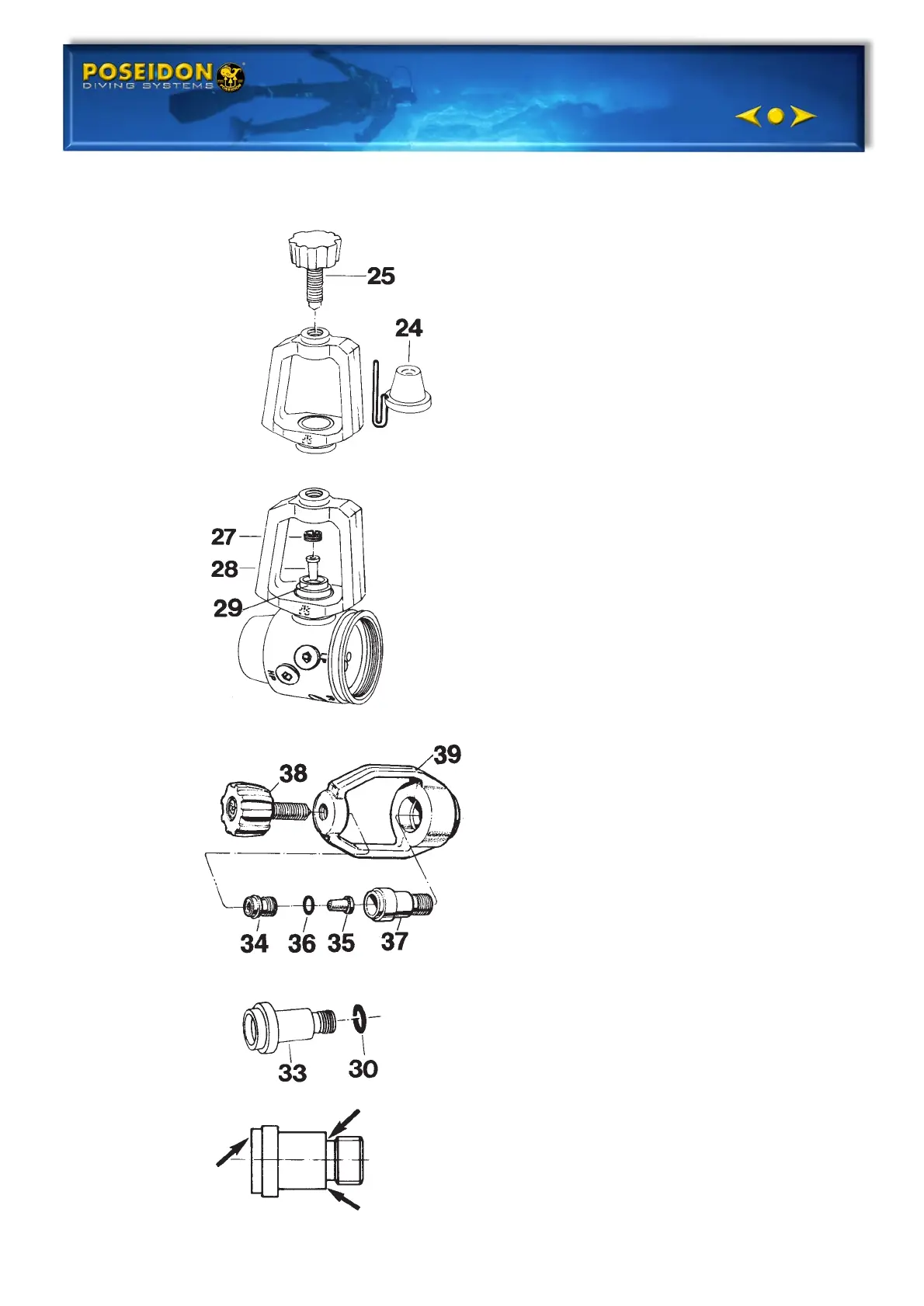

Removal:
1. Remove the protective cap (24).
Unscrew the knob (25).
2. Remove the locking screw (27)
with an 8.5 mm screwdriver.
Remove the cup filter (28).
3. Remove the connection (29)
with a 6 mm Allen wrench.
4. New model, remove the locking
screw (34) with an 6 mm Allen
wrench. Remove the cup filter
(35) and the o-ring (36). Remove
the connection (37) with an 6
mm Allen wrench.
5. Remove the o-ring (30) with an
o-ring remover. Make sure the
sealing surface is not damaged.
Sealing surfaces
