CYKLON
1.0:E78
FIRST STAGE
2962, 3257, 3580, 3585

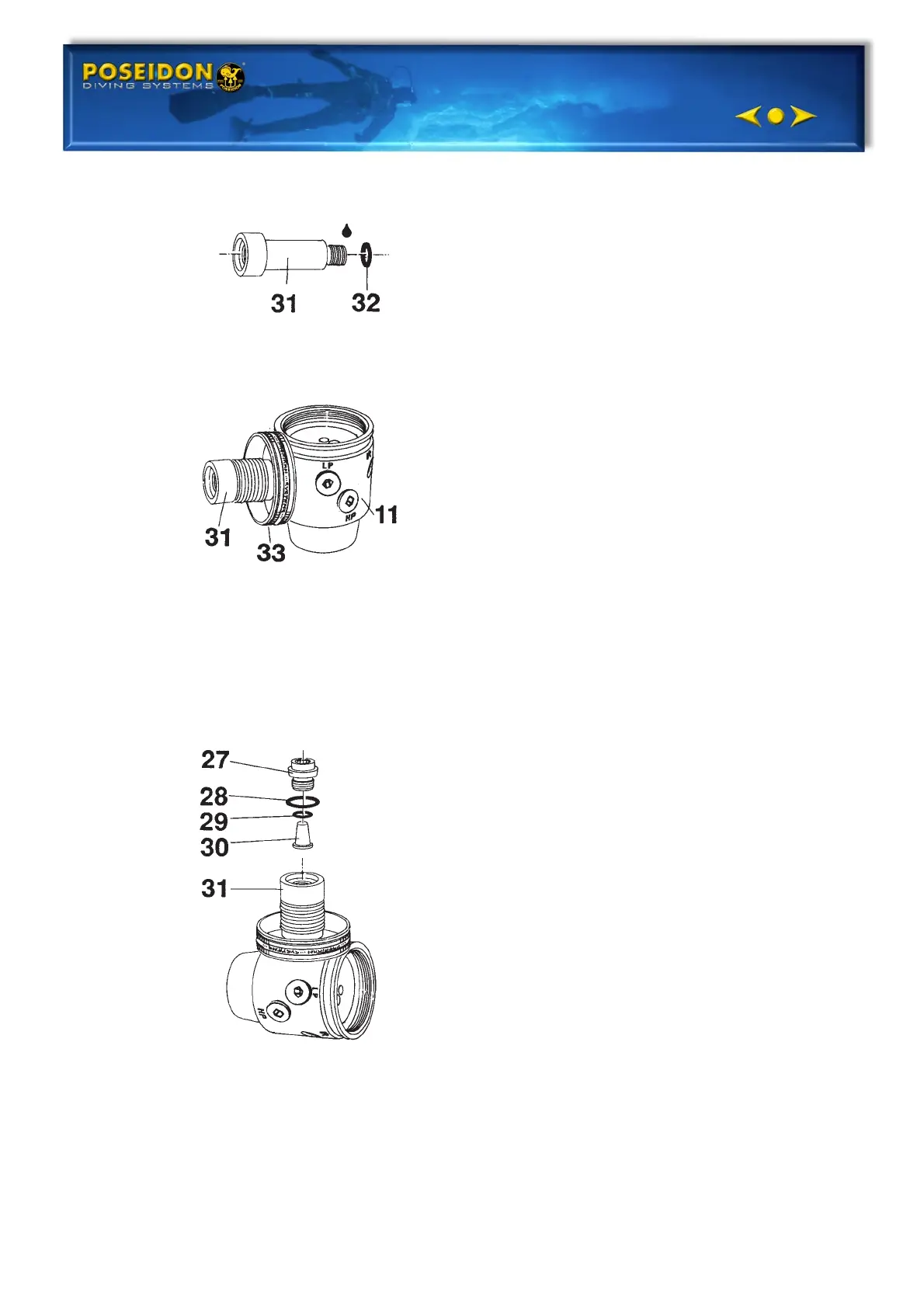

Assembly:
1. Install the o-ring (3 1) on the
connection (30). Lubricate the
o-ring and the thread.
2. Install the wheel (33) on the
connection.
3. Screw the wheel connection
assembly into, the valve housing
assembly with a 6 mm Allen
wrench.
Place the valve housing (11) in a
fixture. Tighten with a torque wrench
to 28 - 30 Nm (20-22 Ibf. ft.).
IMPORTANT! Use bits No 3119
(L = 40 mm). Put o-ring (29) on the
cup type filter (30). Install these and
o-ring (28) and the locking screw (27)
in connection (31). Tighten with a
Allen wrench 6 mm.
