JETSTREAM
1.0:E21
FIRST STAGE
2801

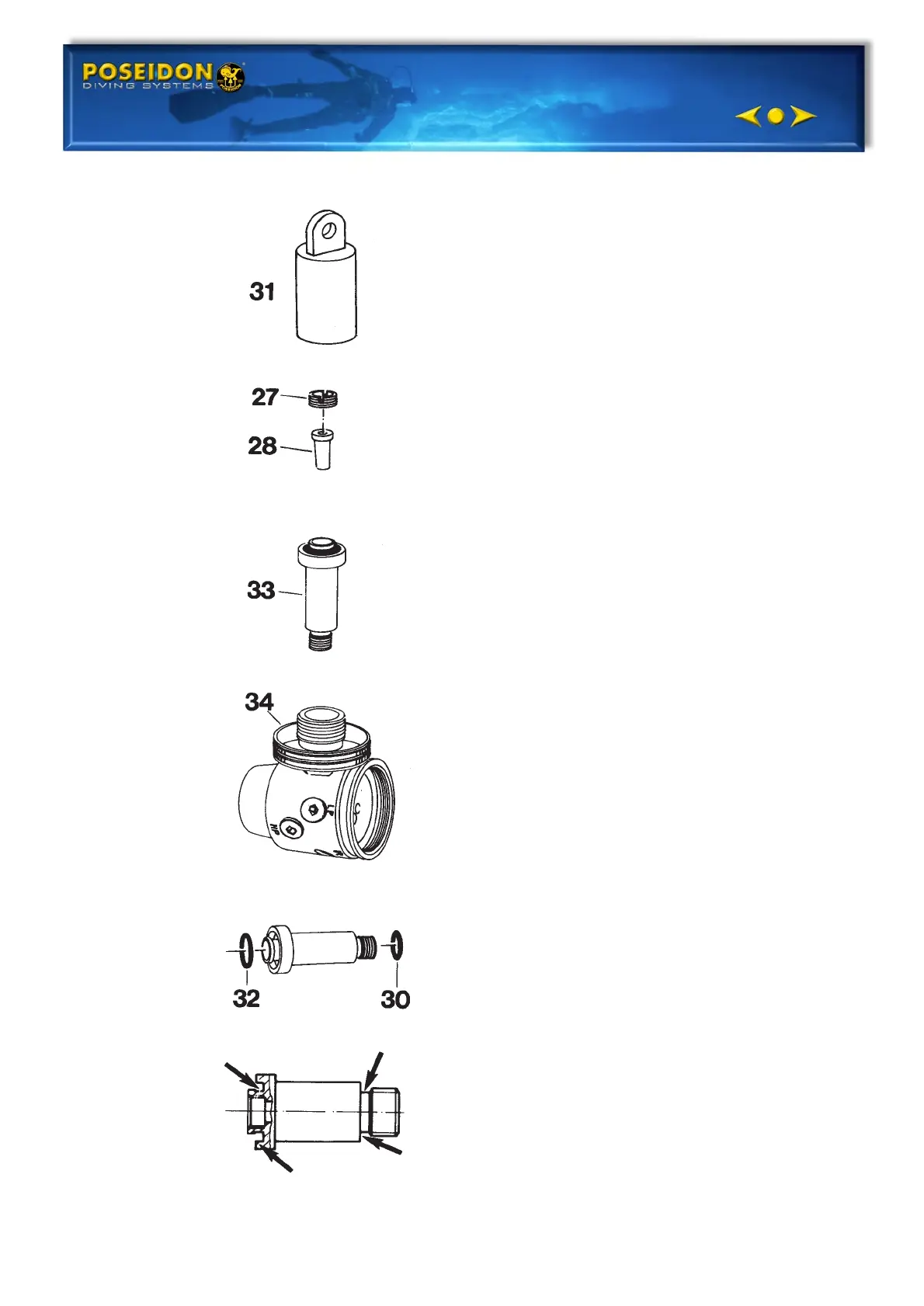

Removal:
1. Remove the protective cap (3 1).
2. Remove the locking screw (27)
with an 8.5 mm screwdriver.
Remove the cup filter (28).
3. Place the first stage in the
fixture. Remove the high
pressure valve housing (33) with
a 6 mm Allen wrench.
4. Remove the wheel (34).
5. Remove the o-rings (30,32) with
an o-ring remover. Make sure
the sealing surfaces are not
damaged.
Sealing surfaces
