POSEIDON Jetstream - First Stage 3070, 2422

CYKLON
1.0:E64
FIRST STAGE
3070, 2422

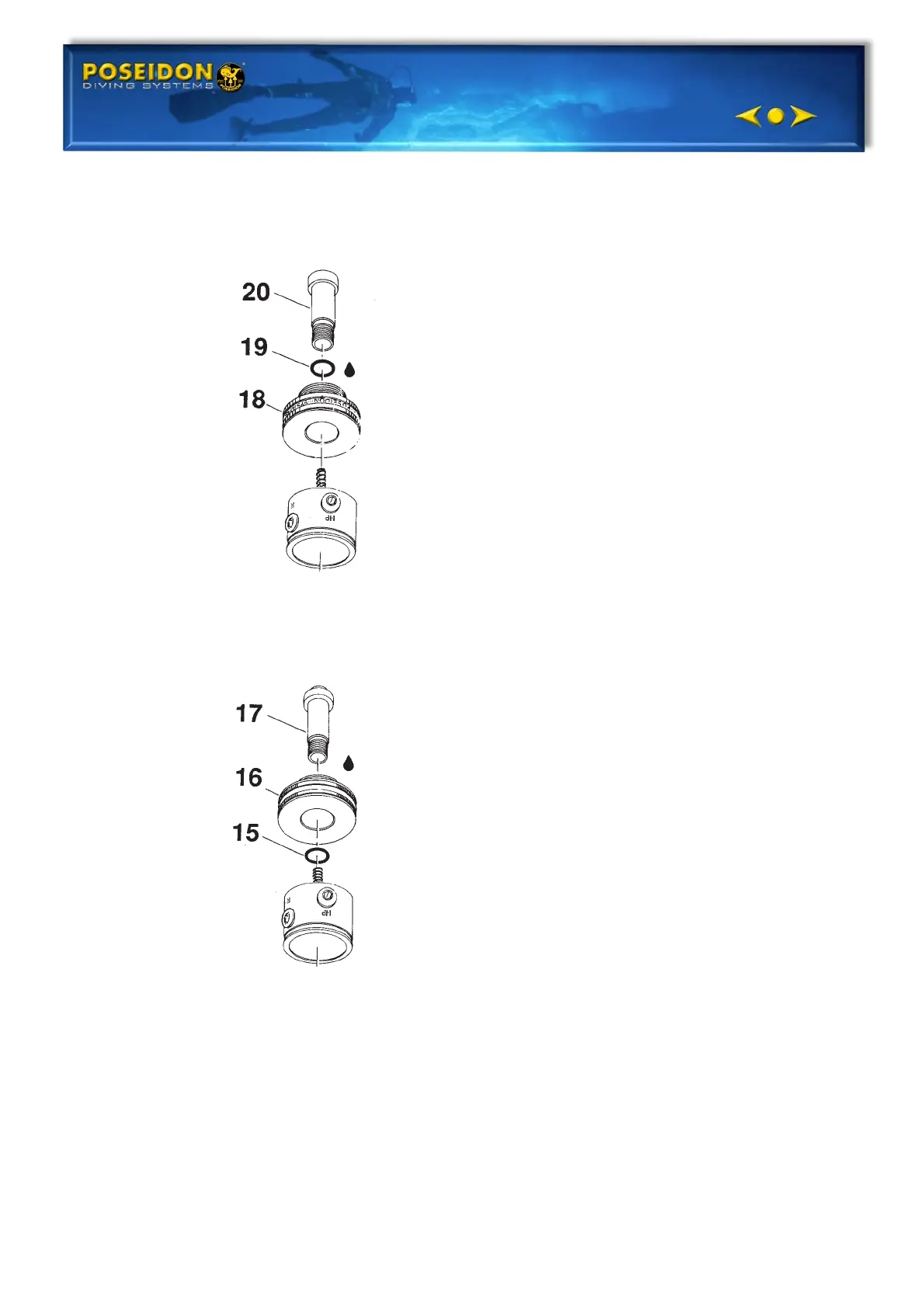

1. Install the o-ring (19) on the
connection housing (20). Lubricate
the o-ring and the thread
2. Install the wheel (18) on the con
nection (20).
3. Screw the wheel connection
assembly into the valve housing
assembly with a 6 mm Allen
wrench. Reverse the valve
housing. Check the movement of
the valve piston by pressing hard
on the diaphragm. The movement
should be about 1.5 mm (1/16”).
FIRST STAGE
2305
1. Install the wheel (16) on the
connection (17). Install the o-ring
(15) on the connection (17).
Lubricate the o-ring and the
thread
2. Screw the wheel connection
assembly into the valve housing
assembly with a 6 mm Allen
wrench. Reverse the valve
housing. Check the movement of
the valve piston by pressing hard
on the diaphragm. The movement
should be about 1.5 mm (1/16”).
