CYKLON
1.0:E63
Assembly
Lubricant:
Grease:

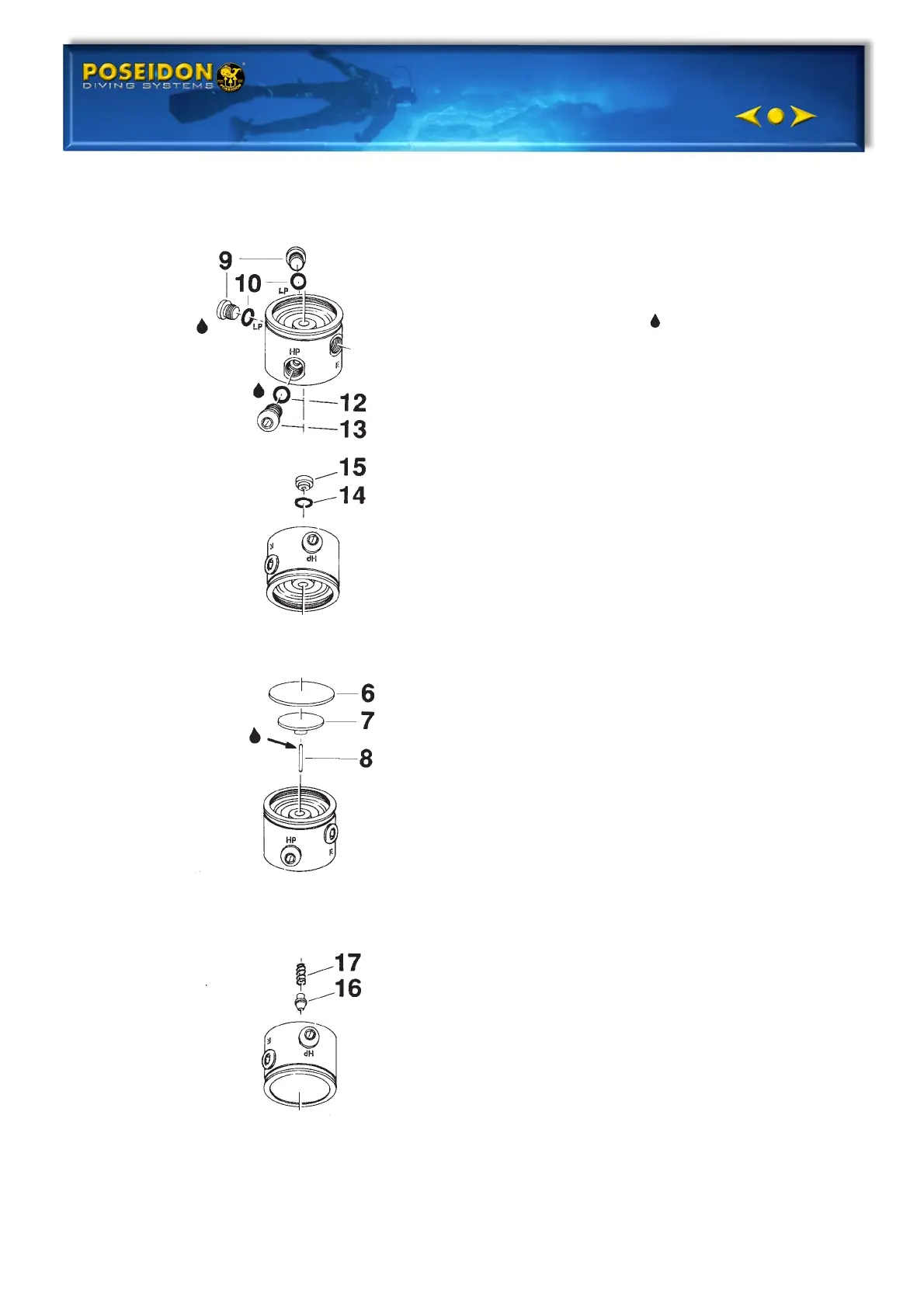

1. Install the o-ring (10) on the blind
screws (9), low pressure supply and the
o-ring (12) on the blind screw (13), high
pressure supply. Lubricate the blind
screws and the o-rings.
2. Screw in the blind screws in the
LP-HP outlets. Use a 5 mm Allen
wrench an tighten hard.
3. Install the o-ring (14) on the valve
seat (15) and then install the valve
seat with a seat drift.
4. Lubricate the point of the valve needle
(8) and install it in the lower diaphragm
center (7). (The grease will help retain
the needle on the lower diaphragm
center during the assembly process).
5. Install needle (8) and center (7) in
the valve housing.
6. Press the diaphragm (6) into the
groove of the valve housing. Use a
blunt-pointed instrument to set it
firmly in place.
NOTE:
The diaphragm (6) must be replaced on
every removal.
7. Reverse the valve housing.
8. Install the valve piston (16) on the
valve needle.
9. Install the spring (17) on the valve
piston.
