1.0:E84

CYKLON

FIRST STAGE VALVE

3720

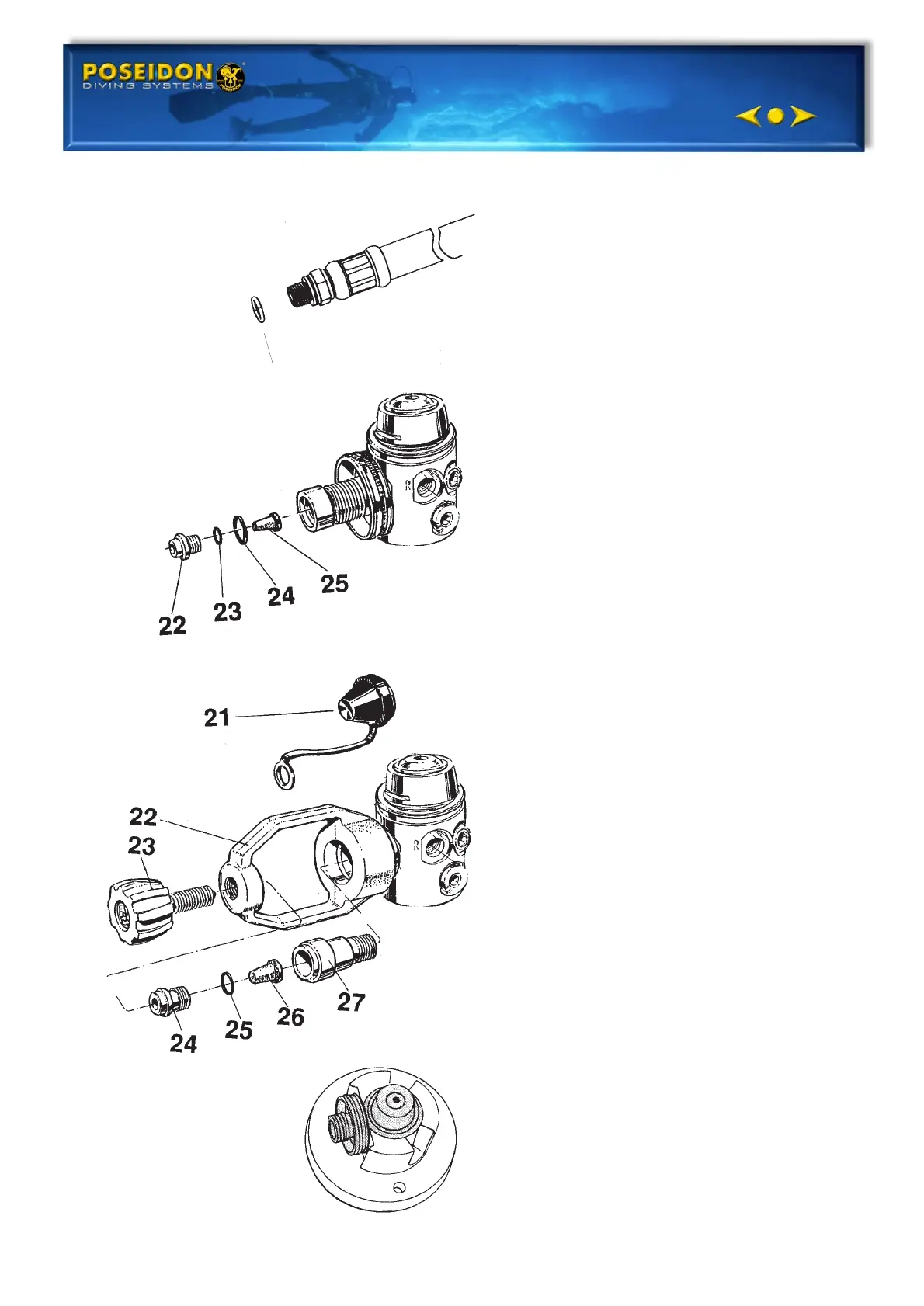

Secondary side:

1. Disconnect the low pressure

hose from the first stage valve

using a 13 mm box spanner.

2. Remove the o-ring (30) from the

low pressure hose with the o-

ring remover.

First stage valve with G 5/8’’:

3. Remove the locking screw (22)

with a 6 mm Allen wrench.

Remove the o-ring (24) and the

cup-filter (25) with o-ring (23).

First stage valve with Yoke:

3. Remove the knob (23) and the

protective cap (21). Remove the

locking screw (24) with a 6 mm

Allen wrench. Remove the cup

filter (26) and the o-ring (25).

4. Place the first stage valve with

the secondary side facing

upwards in the fixture.
