CYKLON
1.0:E59
FIRST STAGE VALVE
2305, 2422, 3070
Secondary side:
Removal:
Place the first-stage valve in fixture
with the secondary side facing
upwards.

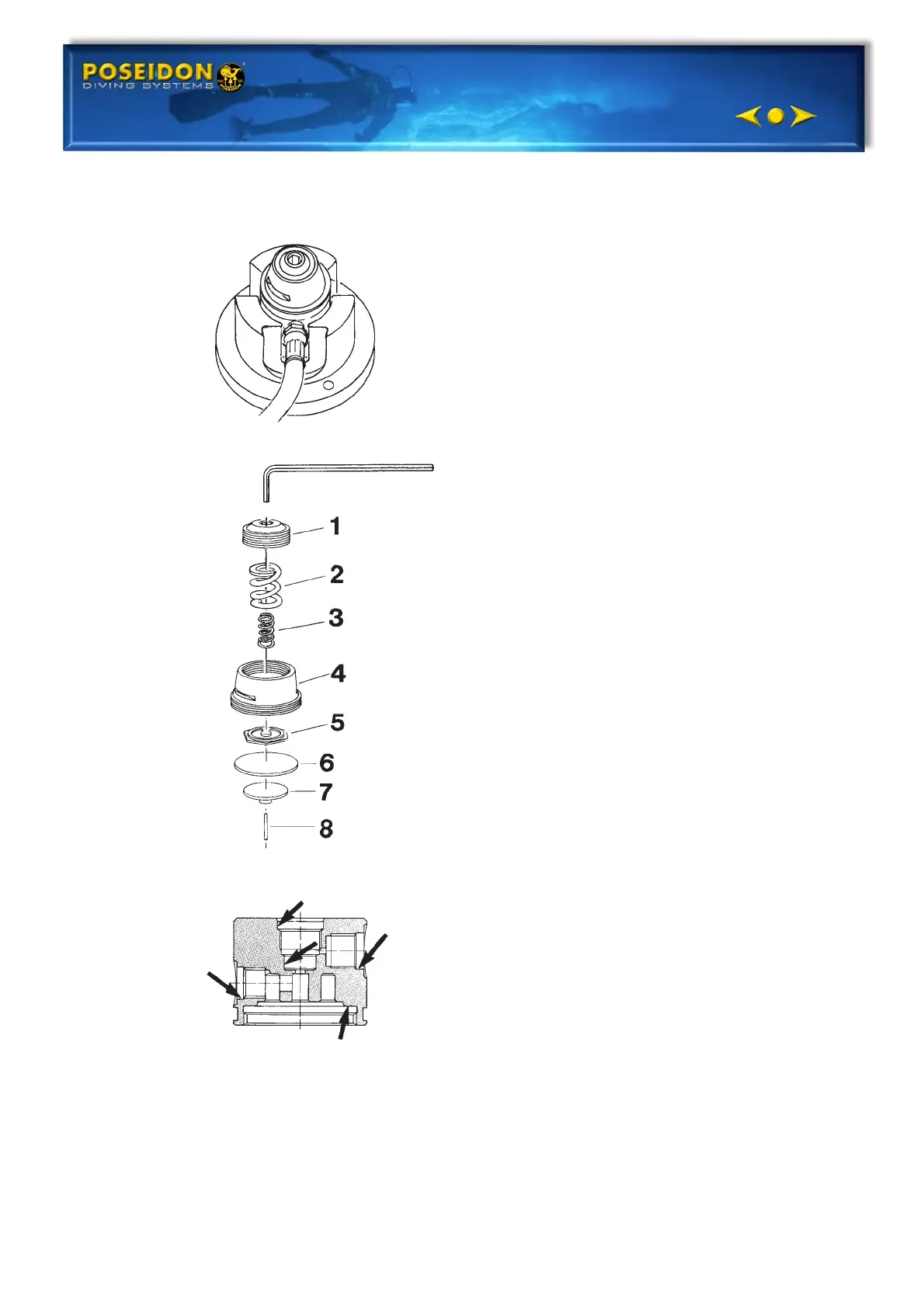

1. Remove the pressure adjusting
screw (1) with a 6 mm hexagon
spanner, and remove the spring
(2) and (3).
2. Remove the cover (4) using a 27
mm crowsfoot wrench. Remove
the upper diaphragm center (5).
3. Remove the diaphragm (6) with
an o-ring remover. Make sure
the sealing surface is not
damaged. Remove the lower
diaphragm center (7) and the
valve needle (8).
