JETSTREAM
1.0:E11
SECOND STAGE
2710, 2941, 2961, 3546
Removal:

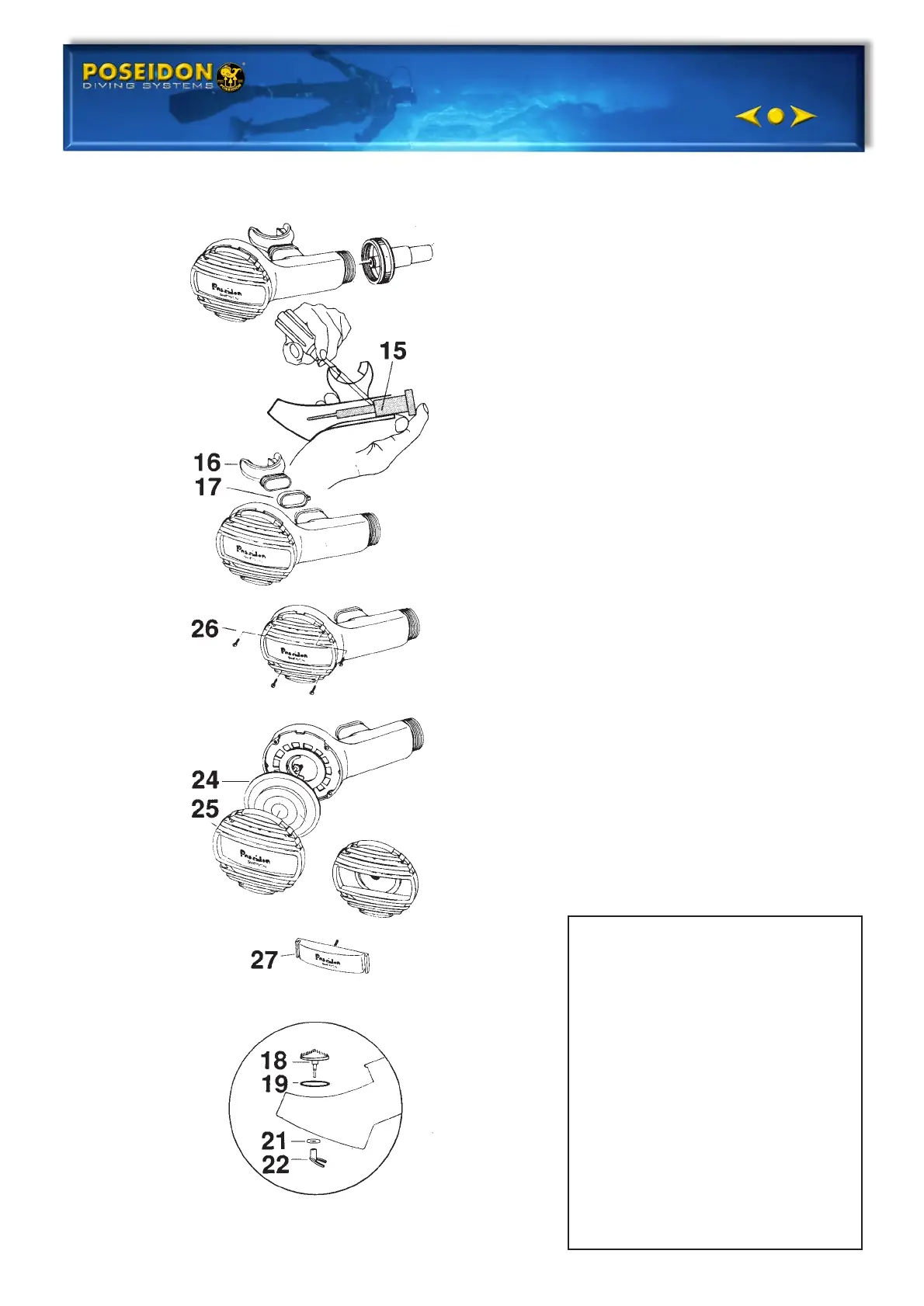

1. Disconnect the low pressure
hose from the second stage.
2. Remove the low pressure valve
from the housing (15) with a
screwdriver. Make sure the servo
valve needle is not bent. Be sure
to hold the low pressure valve
carefully, to avoid dropping it
(see figure).
3. Cut off the locking strap (17)
with cutting pliers. Remove the
mouth piece (16).
4. Unscrew the 4 screws (26) with
a 3.5 mm screwdriver.
5. Remove the cover (25) and the
diaphragm (24).
6. Remove the purge button (27).
IMPORTANT
The switch should not be
removed if it is undamaged.
Removal:
1. Pull out the diaphram cam (22).
2. Cut off the switch (18) with a
pair of cutting pliers close to
the locking washer (21).
Remove the switch.
3. Remove the o-ring (19).
