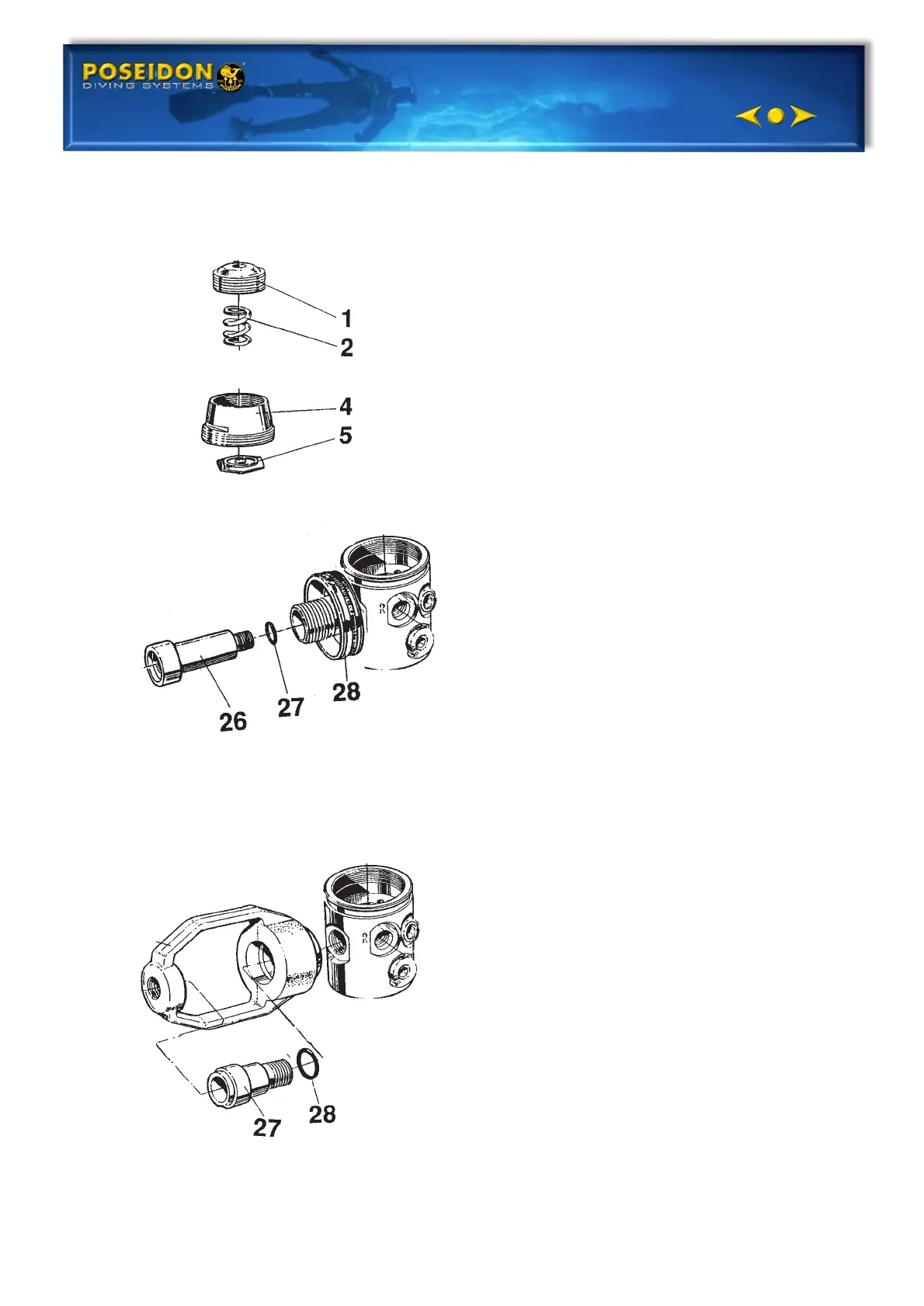

FIRST STAGE VALVE
3790
Removal:
1. Remove the pressure adjusting
screw (1) with a 6 mm Allen
wrench and remove the spring
(2 and 3).
2. Remove the cover (4) using a
27 mm crowsfoot and the upper
diaphragm center (5).
First stage valve with G 5/8’’:
3. Remove the connection (26)
and the wheel (28) with a 6 mm
Allen wrench.
4. Remove the o-ring (27) with an
o-ring remover. Make sure the
sealing surfaces are not
damaged.
First stage valve with Yoke:
3. Remove the connection (27)
and the yoke (22) with a 6 mm
Allen wrench.
4. Remove the o-ring (28) with an
o-ring remover. Make sure the
sealing surfaces are not
damaged.
JETSTREAM
1.0:E34
