FIRST STAGE VALVE
3880, 3880 10

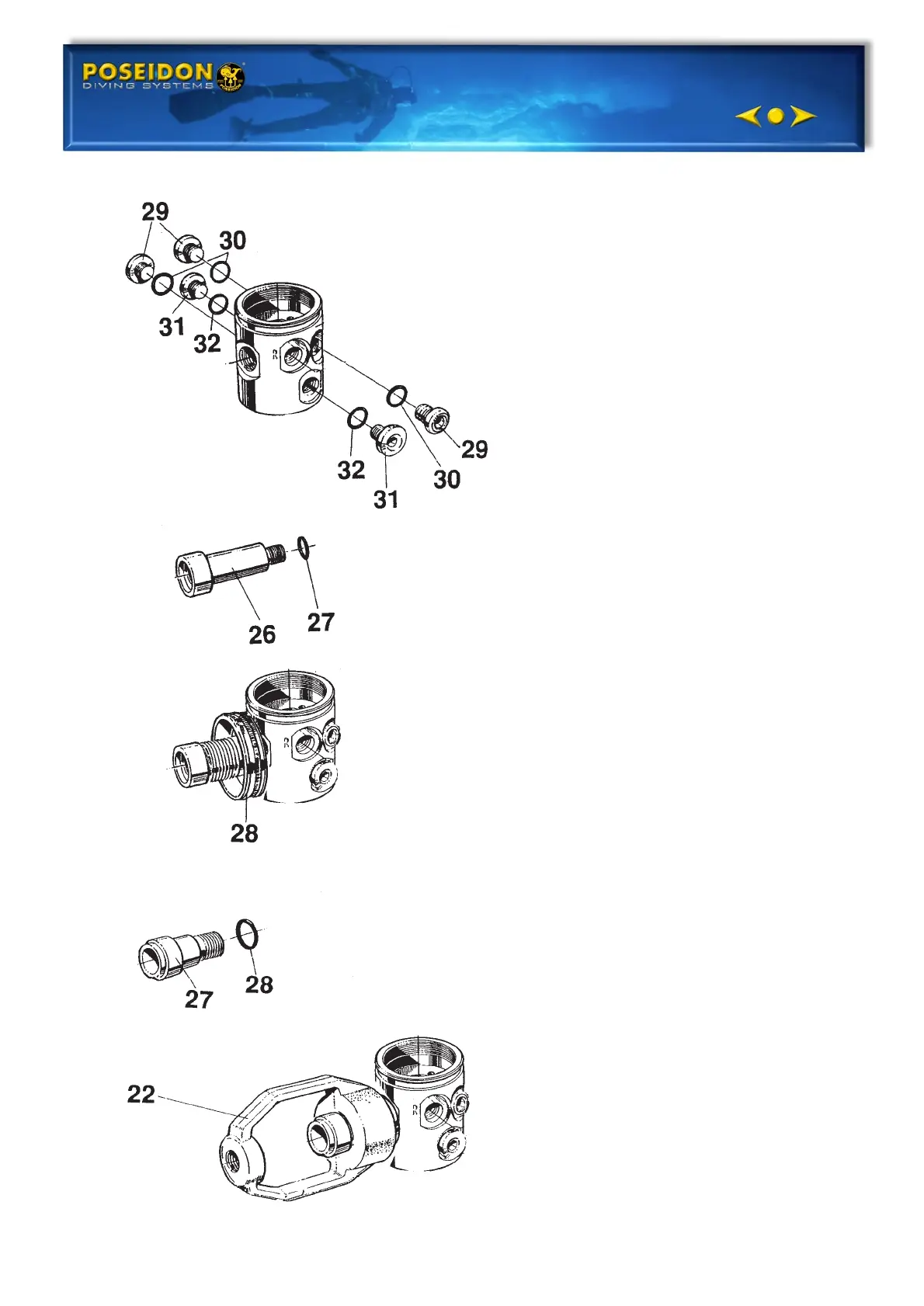

Assembly:
1. Install the o-rings(30 and 32) on
the blind screws (29 and 31).
Lubricate the outlets.
2. Screw the blind screws in the
LP-HP outlets. Use a 5 mm
hexagon spanner and tighten
up by hand.
First stage valve with G 5/8’’:
1. Install the o-ring (27) on the
connection (26). Lubricate the
o-ring and the thread.
2. Install the wheel (28) on the
connection.
3. Screw the wheel connection
assembly into the valve housing
with a 6 mm Allen wrench.
First stage valve with Yoke:
1. Install the o-ring (28) on the
connection (27). Lubricate the
o-ring and the thread.
2. Install the yoke (22) on the
connection.
3. Screw the yoke connection
assembly into the valve housing
with a 6 mm Allen wrench.
TRITON
1.0:E111
