CYKLON
1.0:E62
When servicing the regulator following
parts should be replaced:
See chapter Servicekit.
1. All o-rings
2. Diaphragm
3. Cup filter
4. Valve seat
Cleaning:
If corrosion or salt deposits are in
evidence, place all metal parts in 15
percent hydro-chloric acid.They should be
left in the acid for about 10-15 minutes.
Then, rinse the parts thoroughly and blow
dry with air.
SERVICE INSTRUCTIONS
Checking:

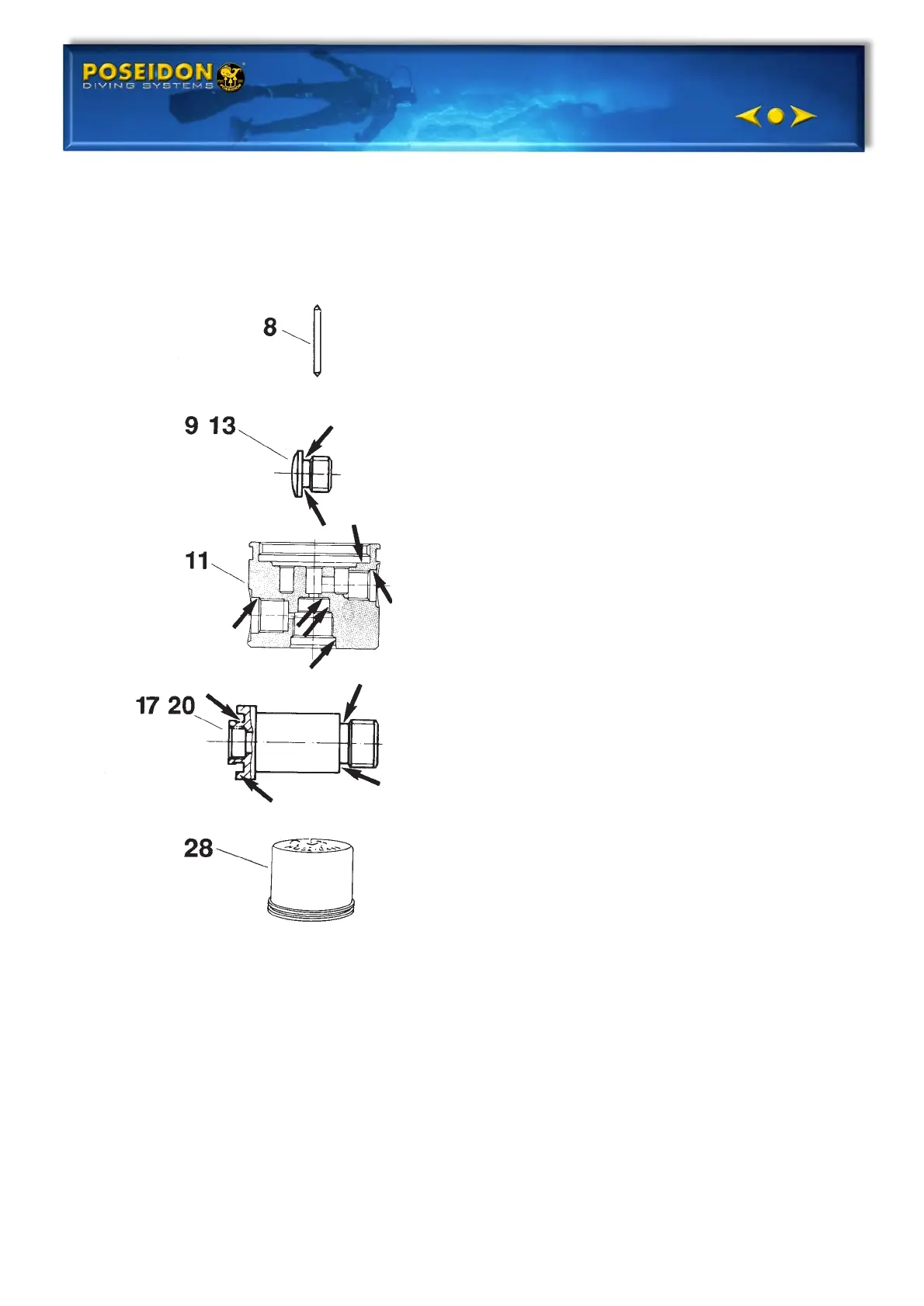

Check the following parts very carefully.
Replace even if only slightly damaged.
Valve needle (8). Check to make sure that
the needle is straight.
The blind screws (9) and (13), check to
make sure the sealing surfaces are
undamaged. Also check that the threads
are not damaged.
The valve housing (11), check to make
sure the threads and also the sealing
surfaces for the o-rings are undamaged.
The connections (17) or (20), check to
make sure the sealing surfaces for the
o-rings are undamaged.
