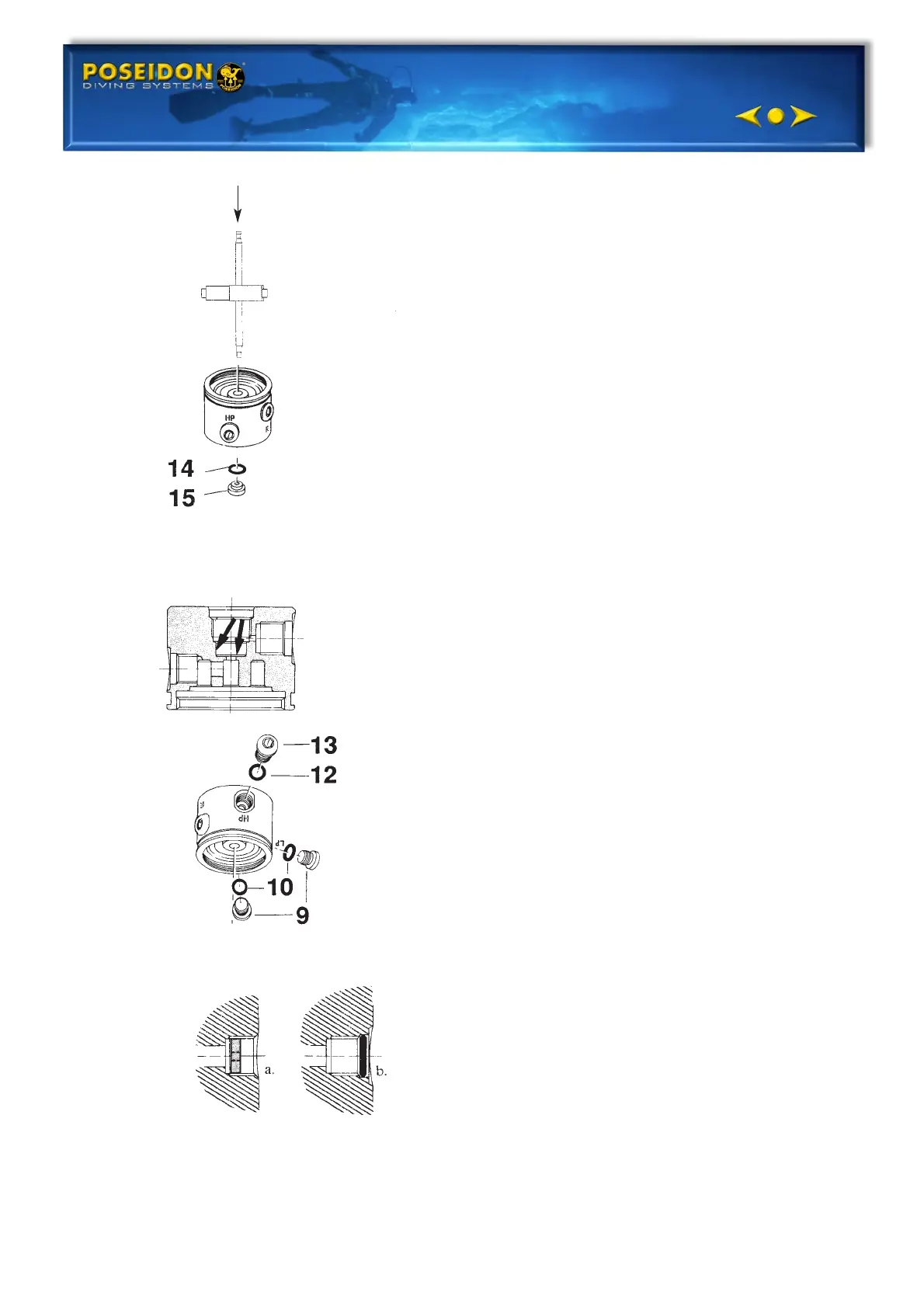

1. Remove the valve seat (15) with
the valve seat remover.
2. Remove the o-ring (14) with an
o-ring remover. Make sure that
the sealing surfaces are not
damaged.
3. Remove the blind screws (9)
and (13) with a 5 mm Allen
wrench. Remove the o-rings
with an o-ring remover. Make
sure that the sealing surfaces
are not damaged.
Old-type fist stage valve housings
with (G 1/8”) threads are equipped
with nylon gaskets seats.
It is not normally necessary to
change these seats during service.
However, if the seats are subjected
to a great deal of over-tightening,
the interior orfices can be reduced
in diameter, significantly reducing
flow and performance. Compare
installed gasket orifices with a new
gasket, and replace as necessary.
Gaskets must also be replaced
after a long time acid-bath.
Sealing surfaces
a. G1/8’’-port with gasket.
b. UNF 3/8’’-port with o-ring
