JETSTREAM
1.0:E13

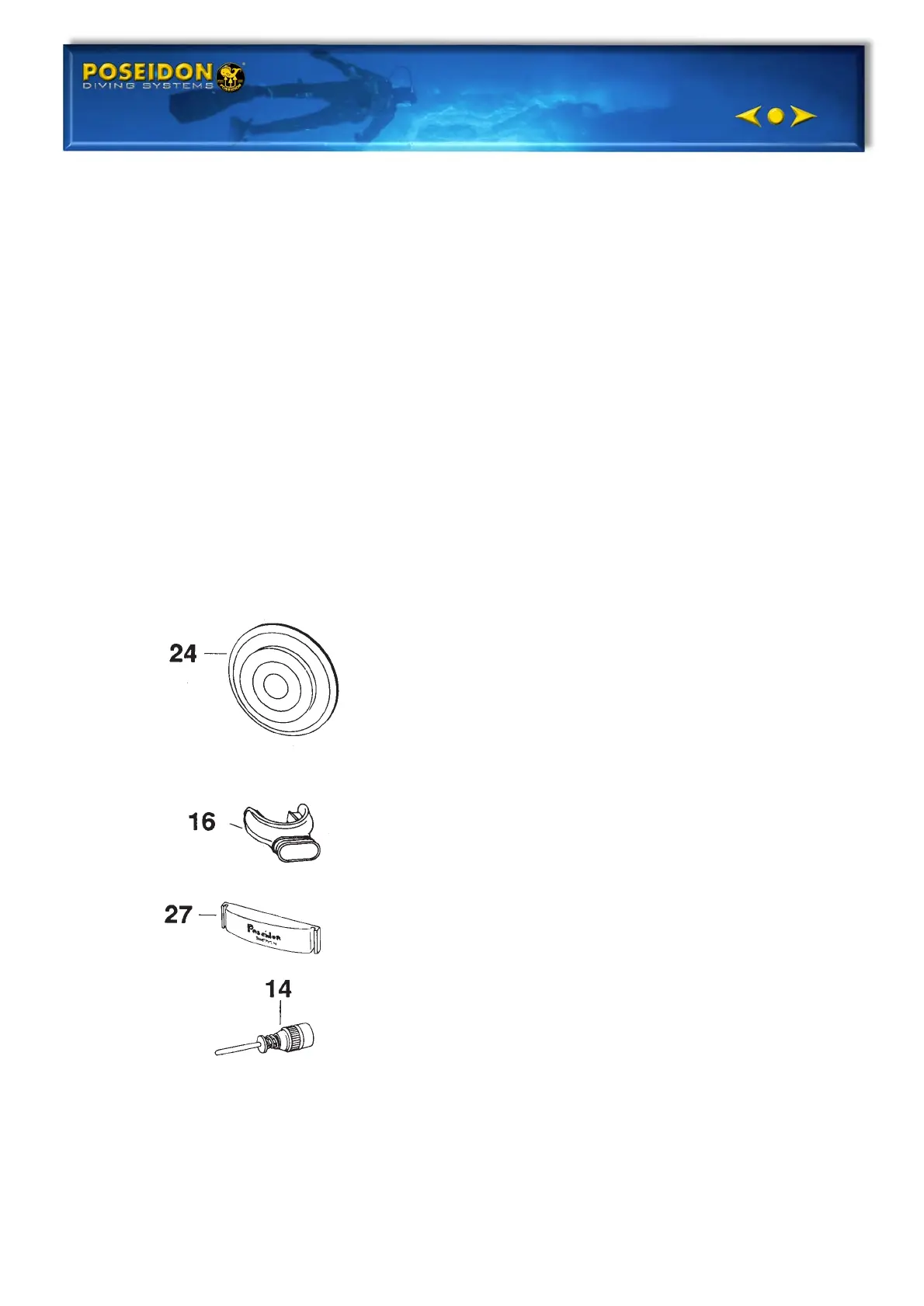

BEFORE INSTALLING CHECK
THE FOLLOWING:
1. Diaphragm (24). Check that the
sealing surface of the diaphragm is
even. Also check that there are no
holes in the diaphragm and that the
diaphragm washer is properly fixed in
position.
2. The mouth-piece (16). Make sure
there are no cracks.
3. The purge button (27). Make sure
there are no cracks. Check to make sure
the spring is undamaged.
4. Servo valve (14). Check to make
sure that the valve bar is not bent.
5. The switch: Put the switch into - and
+position. It should be moved rather
slowly, control the position of the
diaphragm and that it is properly
tighten.
When servicing the regulator the following parts should be
replaced: See chapter Servicekit.
1. All o-rings. Also the ones in the low pressure hose.
CLEANING:
If corrosion or salt deposits occurs, place all metal parts –
concentrated Hempocid* or 15% Hydrochloric acid for about 10
minutes.Then, rince the parts thoroughly and blow dry with air.
The synthetic parts in the second stage must not be treated with
solvent.They shall be cleaned in freshwater only.
*Hempocid = Acid Liquid Detergent Containing phosphoric
acid (5 - 10%) and bactericid for desinfectant cleaning.
