CYKL
ON
1
.0:E72
FIRST
ST
A
GE
2801

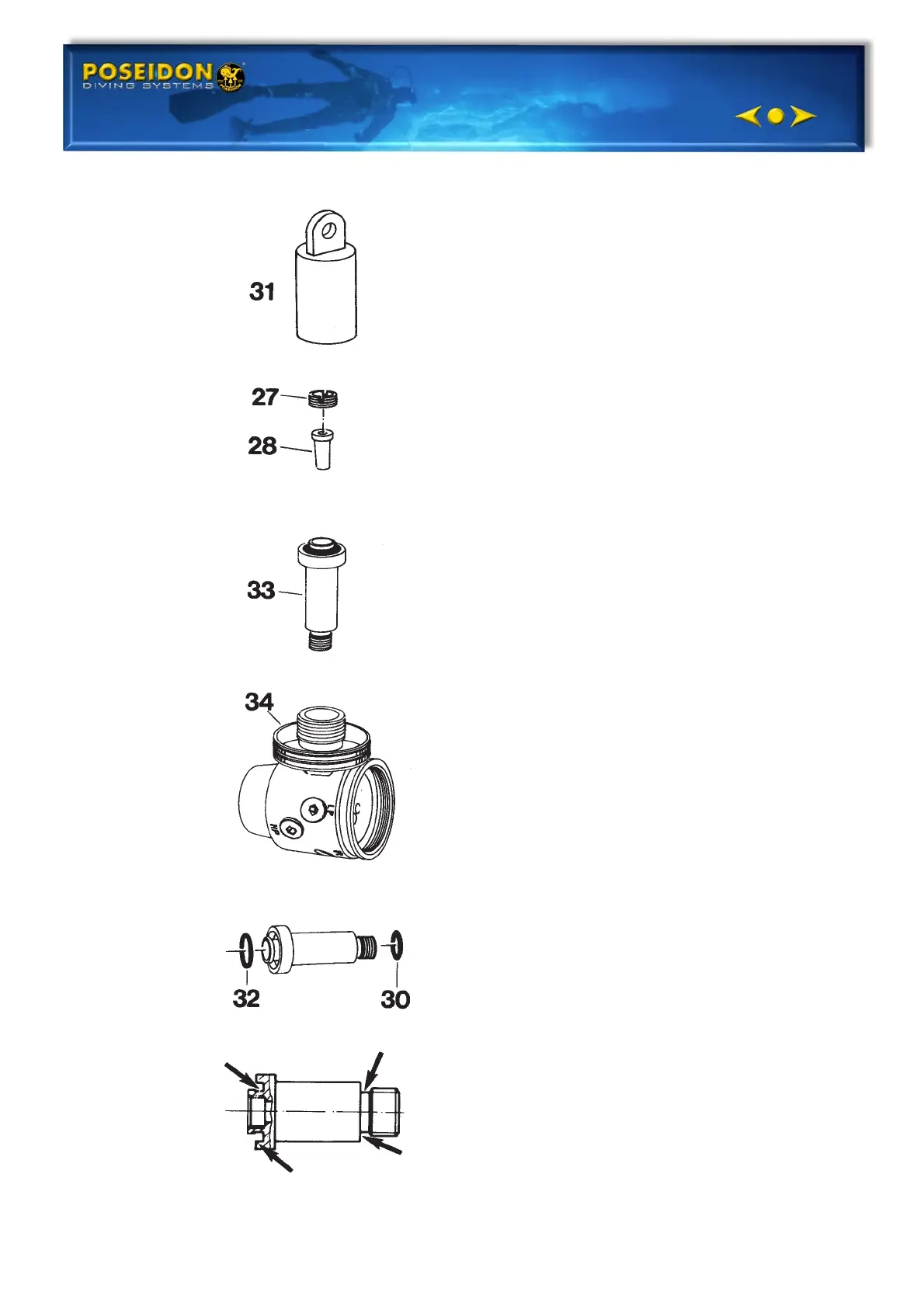

Remov
al:
1.
Remo
ve the
protec
tive cap
(3
1).
2.
Remo
ve the
lock
ing
screw
(27)
with
an
8.5
mm
screwdriver
.
Remove the
cup
filter
(28).
3.
Place the
first
stage
in
the
fixture.
Remov
e the
high
pressure
valv
e housing
(33)
with
a
6
mm
Allen
wrench.
4.
Remo
ve the
wheel
(34).
5.
Remo
ve the
o-rings
(30,32)
with
an
o-ring
remover
.
Make
sure
the
sealing
sur
faces
are
not
damaged.
Seali
ng surfaces
70
72
