JETSTREAM
1.0:E28
FIRST STAGE
2801, 3257 10, 3585 10
Assembly:

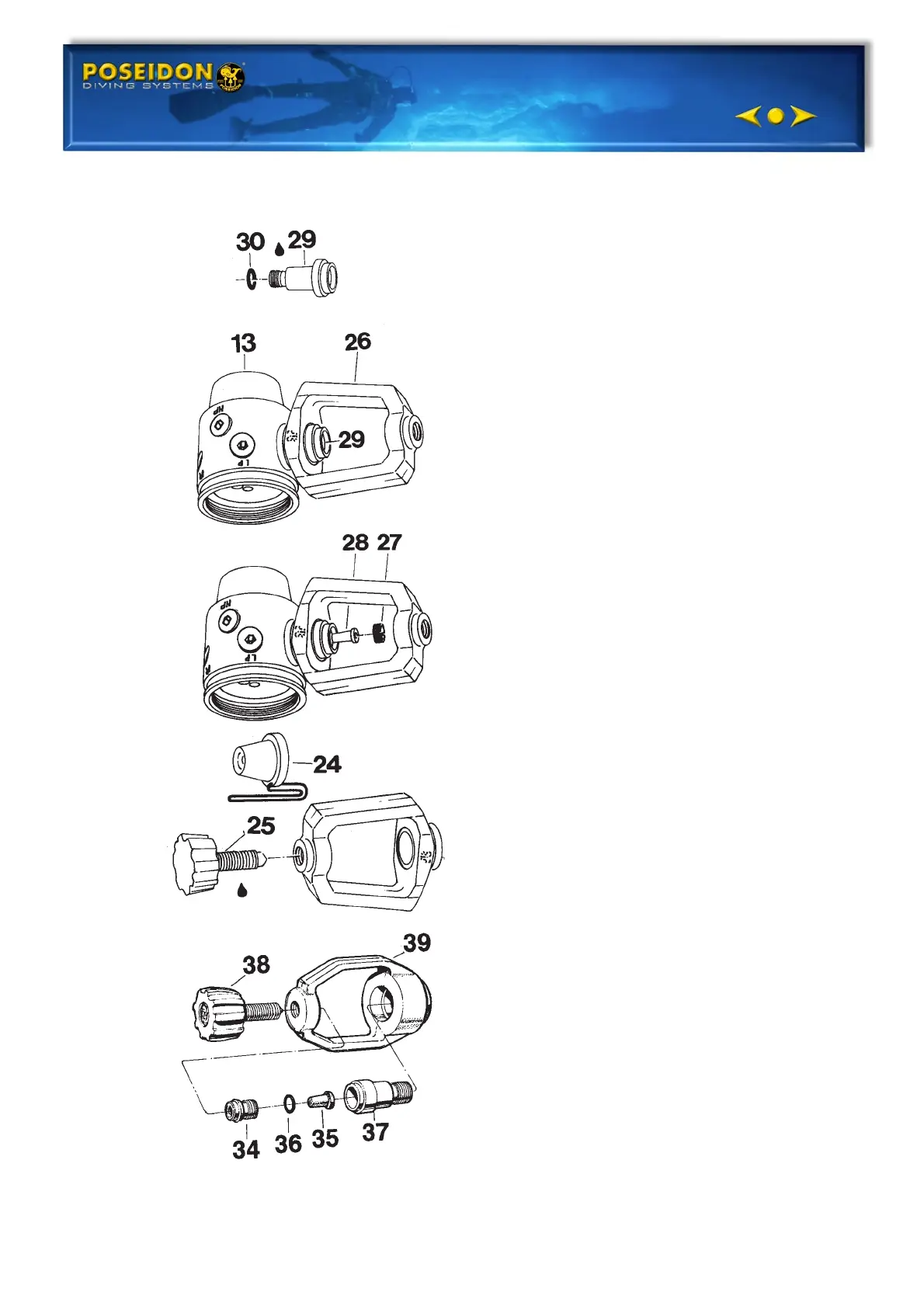

1. Install the o-ring (30) on the
connection (29). Lubricate the
thread and the o-ring.
2. Place the connection (29) in the
Yoke (26) and screw the connec-
tion into the valve housing (13)
using a 6 mm Allen wrench. Place
the valve housing in a fixture.
Tighten with a torque wrench to
28 - 30 Nm.(20-22 Ibf.ft). Use bits
no 2883 (length 30 mm)
3. Install the cup filter (28). Screw in
the locking screw (27) with a 8.5
mm screw driver. Install the
protective cap (24). Grease the
thread and screw in the knob.
4. New model. Place the connection
(37) in the Yoke (39) and screw the
connection into the valve housing,
using a 6 mm Allen wrench. Place
the valve housing in a fixture.
Tighten with a torque wrench to
28 - 30 Nm (20-22 Ibf.ft). Use bits
no 3119 (length 40 mm)
5. Install the o-ring(36) on the cup
type filter (35). Place the filter in
the connection(37).
6. Install the protective cap, grease
the thread and screw in the knob.
