POSEIDON Jetstream - Page 112

FIRST STAGE VALVE
3880, 3880 10

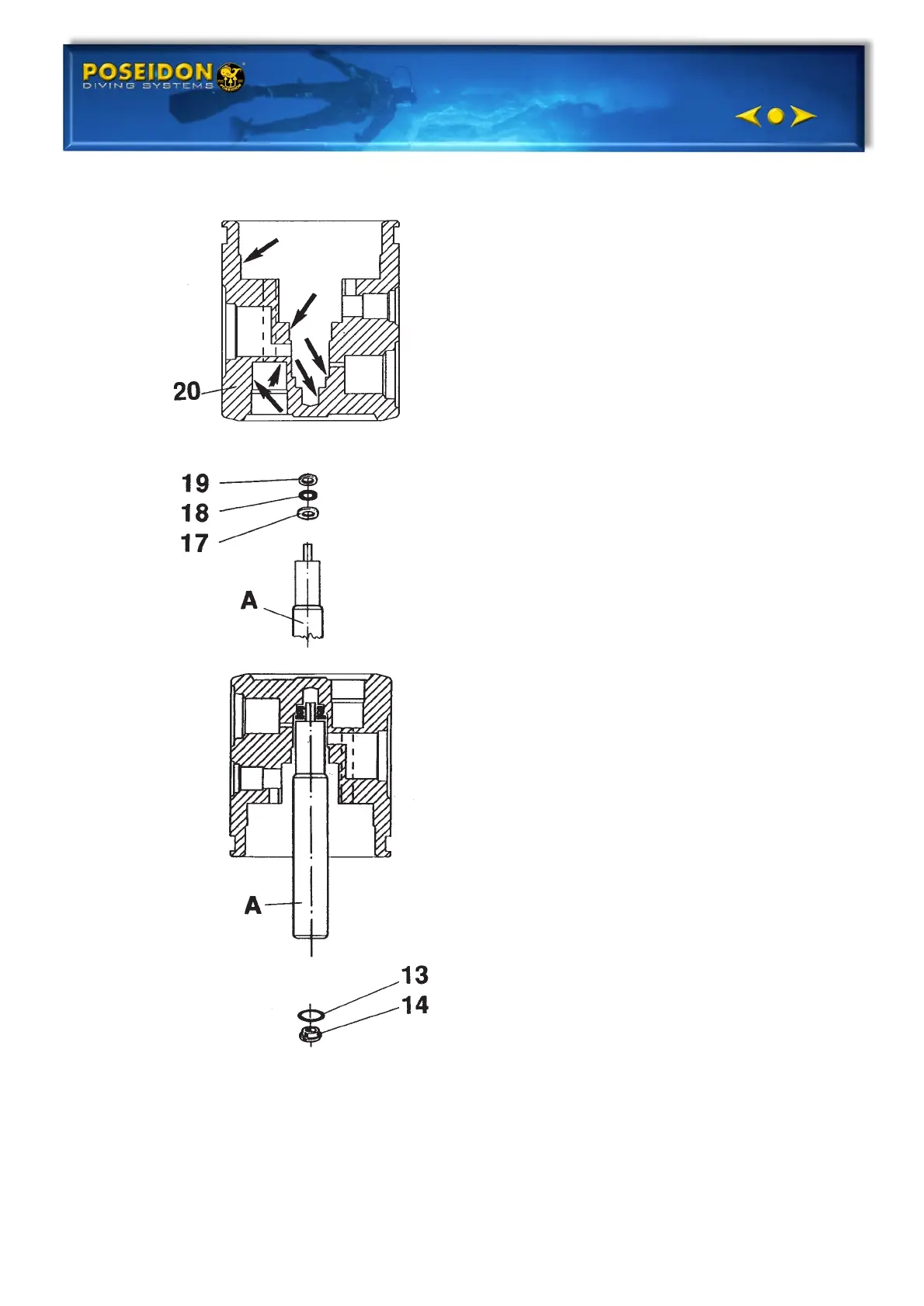

Assembly:
1. Lubricate the valve housing (20).
2. Place on the assembly drift A:
-washer, steel (17)
-O-ring (18)
-washer, teflon (19)
3. Install the valve housing.
Lubricate the washers
and the o-ring.
4. Install the o-ring (13) on the
valve seat (14).
TRITON
1.0:E112
