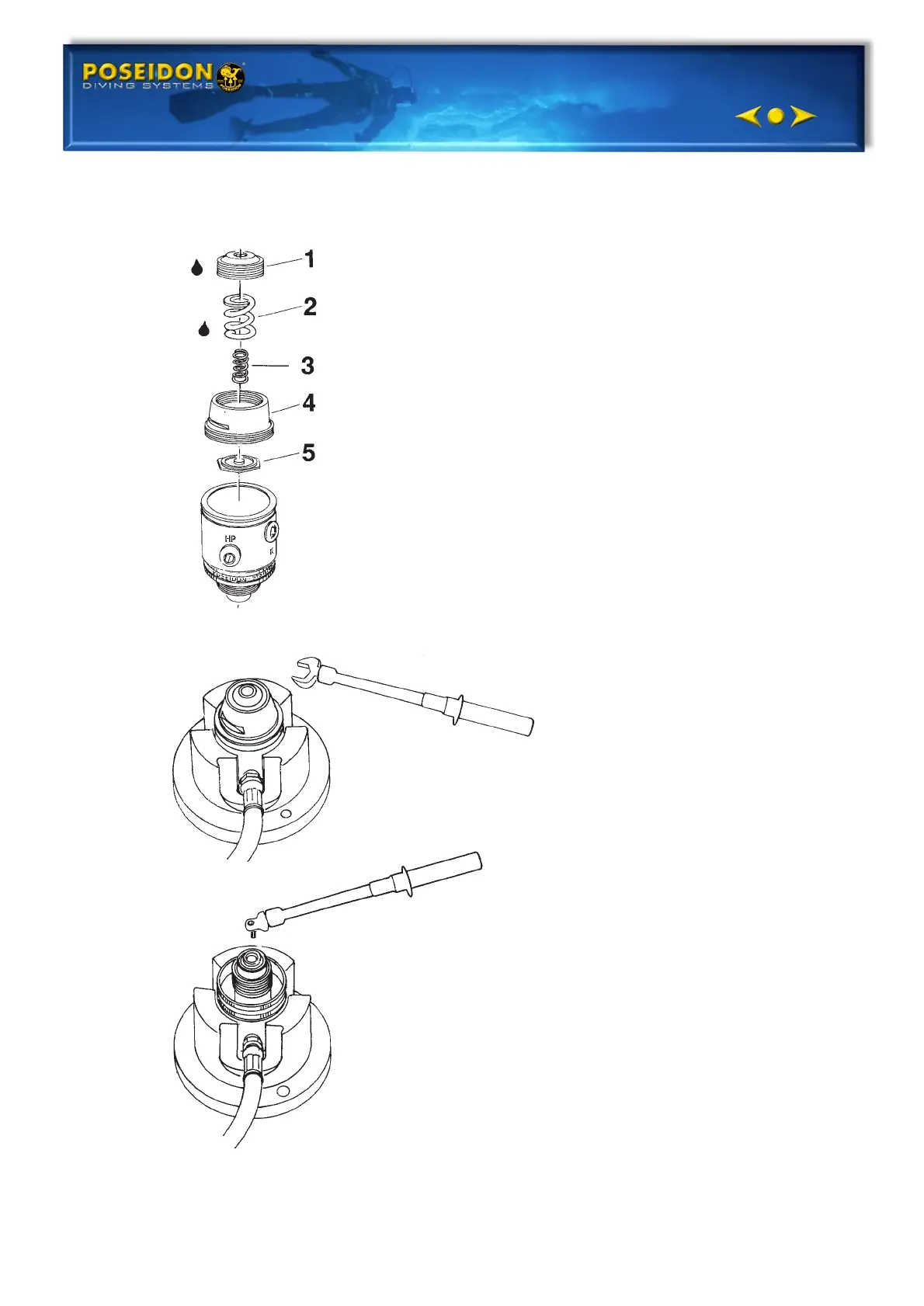

1. Place the upper diaphragm
center (5) on the diaphragm in
the valve housing.
2. Screw the cover (4) into the
valve housing.
3. Lubricate both ends of the
spring (2) and (3). Lubricate the
threads on the pressure
adjusting screw(1).
4. Tighten the pressure adjusting
screw about 5 turns with a 6
mm Allen wrench.
Place the stage assembly in the
fixture. Tighten the valve housing
cover with a 27 mm crowsfoot and
the connection with a 6 mm Allen
wrench. use a torque wrench to
achieve 28-30 Nrn (20-22 Ibf.ft) of
torsion.
IMPORTANT NOTE:Use the right
bits: To all first stages with wheel
connection, bits No. 3119 (length
40 mm) should be used.
