CYKLON
1.0:E77

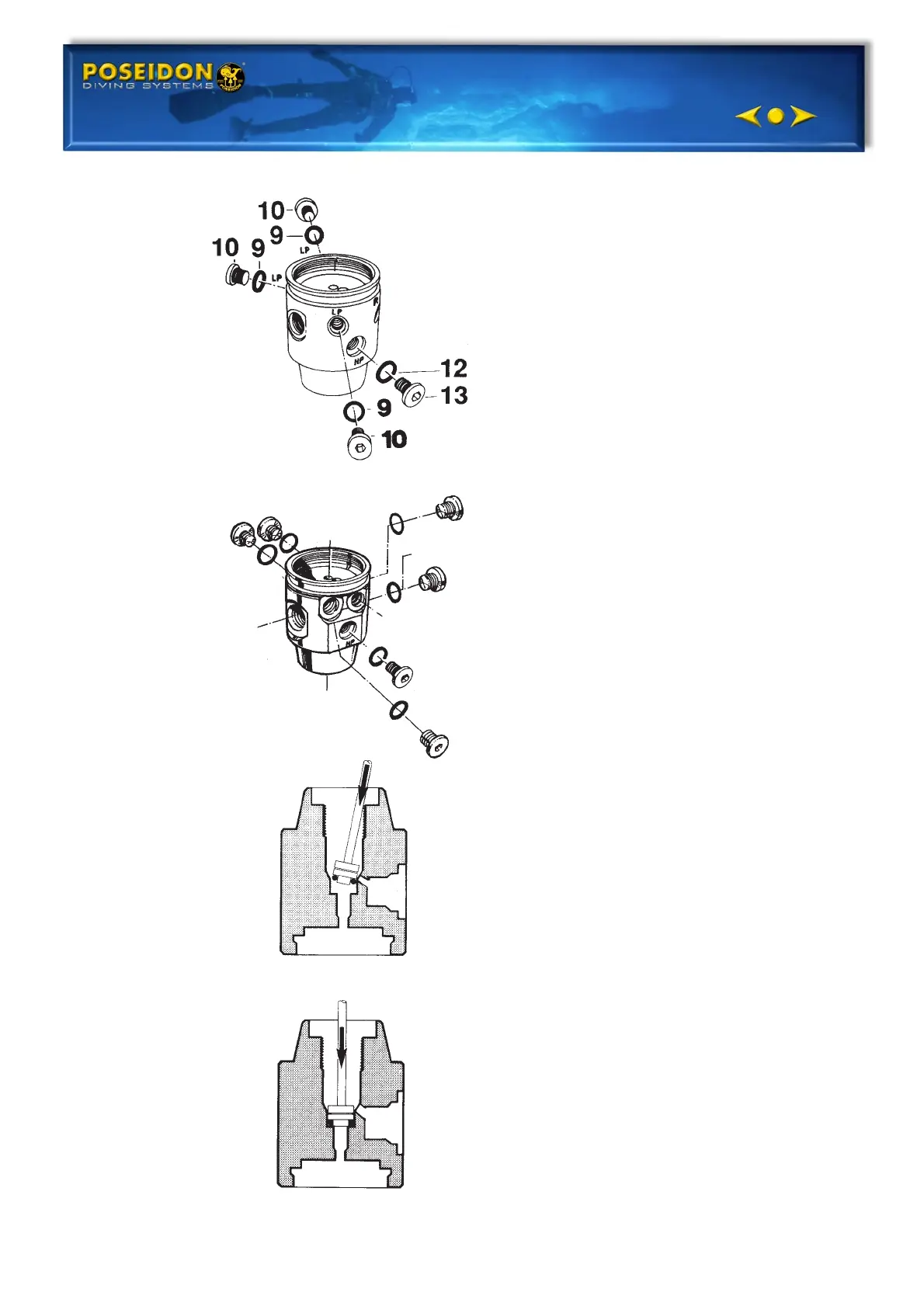

Assembly
1. Install the o-rings (9) and (12) on
the blind screws (10) and (13).
Lubricate through the outlets.
2. Screw in the blind screws in the
LP- HP outlets. Use a 5 mm Allen
wrench and tighten up by hand.
3. Install the o-ring (14) on the
valve seat (15) and the install
the valve seat with a seat drift.
Press the drift diagonally as
shown in the diagram and the
”rock” it to the vertical while
pressing down. The seat and
o-ring should pop into place.
This procedure avoids damage
to the oring from the high
pressure supply outlet.
