CYKLON
1.0:E51

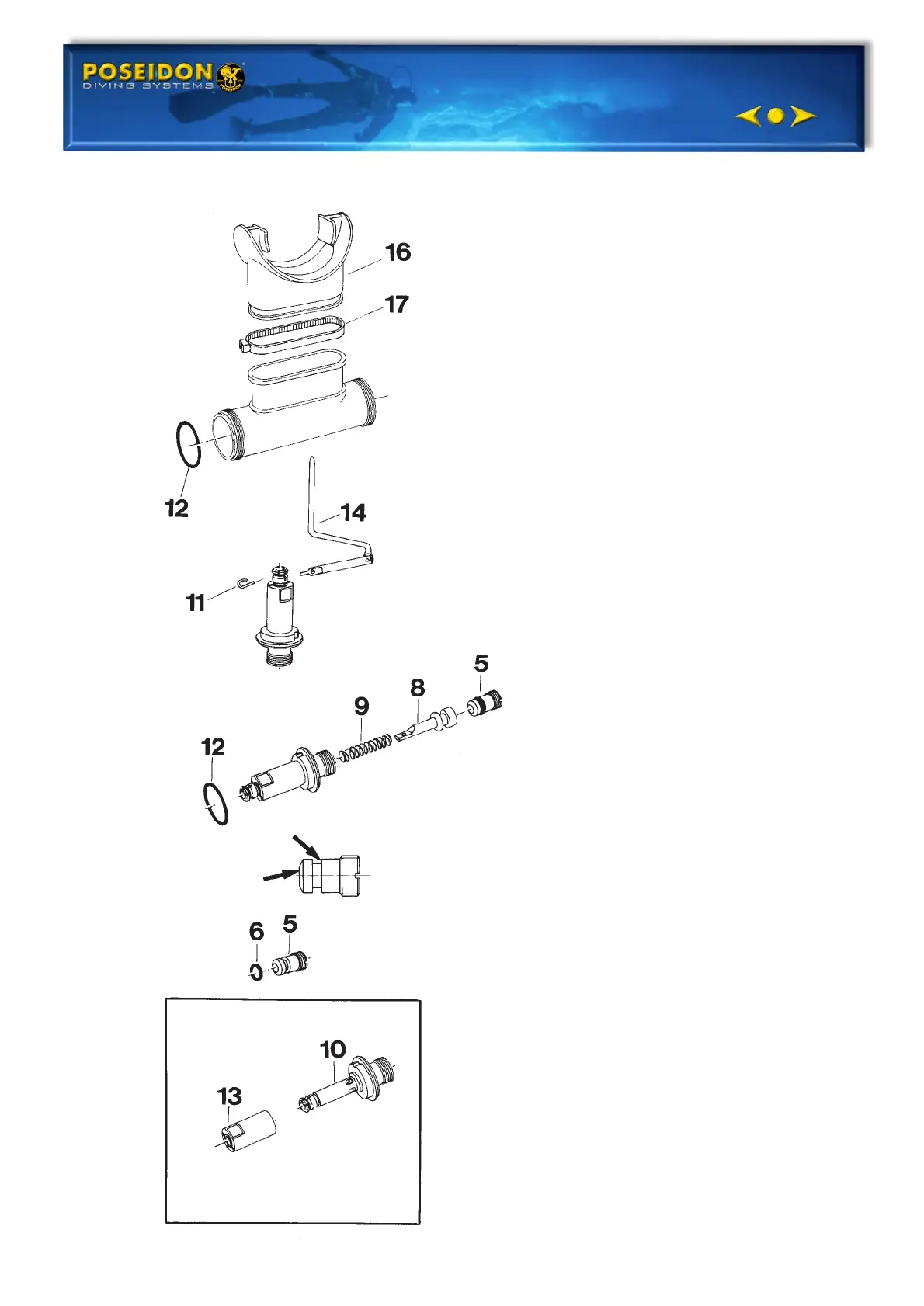

1. Cut off the locking strap (17)
with cutting pliers.
2. Remove the mouth-piece (16)
and the o-ring (12).
1. Remove the lever pin (11).
2. Remove the operating device
(14).
3. Remove the o-ring (12).
4. Unserew the valve seat (5) with
an 8.5 mm screwdriver. NOTE!
the valve seat has a very fragile
tightening edge; put the seat
with the edge upwards.
5. Remove the valve piston (8) and
the spring (9). In order to
protect the piston bond, the old
rubber plate should be kept
until the new shall be fixed.
6. Remove the o-ring (6) with an
oring remover. Make sure the
sealing surfaces ar not
damaged.
IMPORTANT! The ejector sleeve
should not be removed if it is
functional and undamaged.
Check to see that the sleeve can
be rotated to any position, but
that it does not rotate freely.
