CYKLON
1.0:E81
FIRST STAGE
BALANCED HOUSING

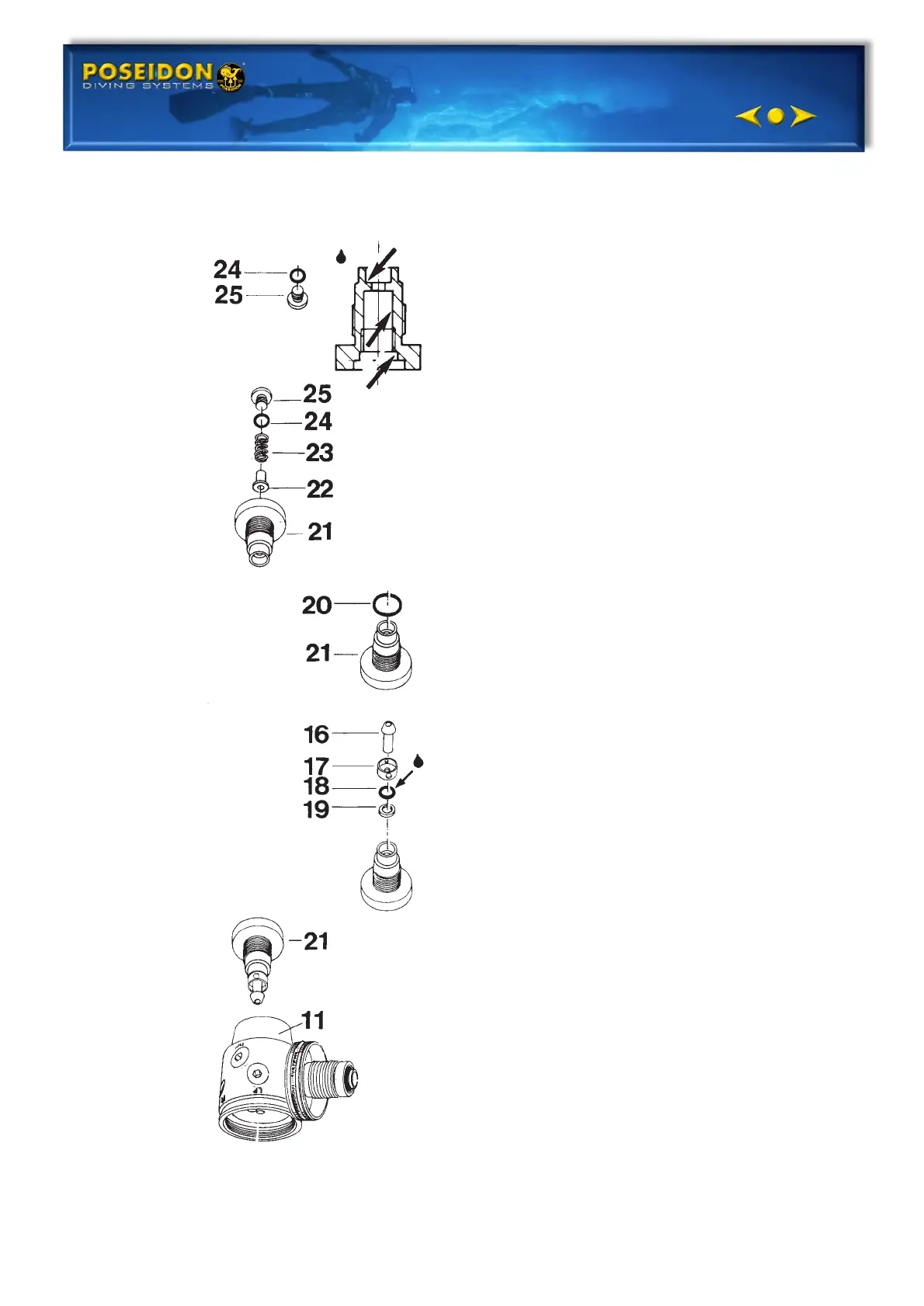

1. Install the o-ring (24) on the
blind screw G 1/8’’ (25).
2. Grease the inside of balanced
housing (21).
3. Install the spring guide (22) and
the spring (23). Serew in the
blind screw (11) with a 5 mm
Allen wrench. The blind screw
should be tightened while the
balanced housing is held in the
valve housing.
4. Install the o-ring (20) at the
balanced housing .
5. Install the washer (19)and the
oring (18). Grease the inside of
oring and the washer. Install the
spacing sleeve (17) and the
valve piston (16).
6. Install the balanced housing
(21) in the valve housing (11)
and tighten the blind screw
with a Allen wrench to 1ONm/7
Ibf.ft.
