FIRST STAGE VALVE

3720

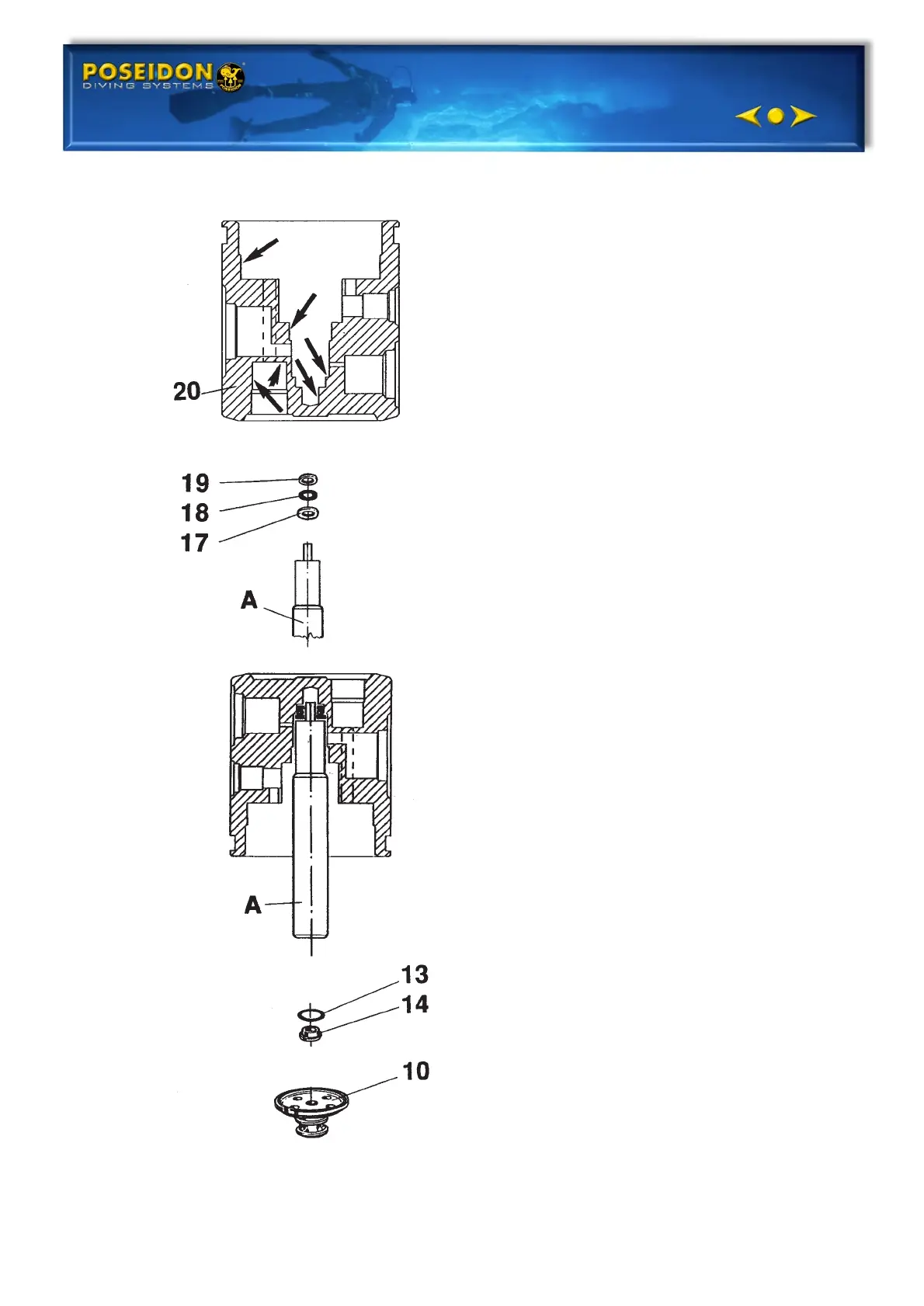

Assembly:

1. Lubricate the valve housing (20).

2. Place on the assembly drift A:

-washer, steel (17)

-O-ring (18)

-washer, teflon (19)

3. Install the valve housing.

Lubricate the washers

and the o-ring.

4. Install the o-ring (13) on the

valve seat (14).

CYKLON

1.0:E90

Cleaning2
Lubricate Used2
Function3
Technical Data4
Repair Instructions Second Stage Demand Valve8
Second Stage Removal9
Switch Removal9
Regulator Cleaning11
Checks before Installing11
Second Stage - Assembly12
Switch Installation13
Low Pressure Hose with Safety Valve14
Assembly14
Repair Instruction First Stage Reducing Valve15
First Stage Valve Removal16
Secondary Side16
Balance Housing Removal17
First Stage 2962, 3257, 3580, 3585 Removal18
First Stage 2801 Removal19
First Stage 2801, 3257 10, 3585 10 Removal20
First Stage 2801, 2808, 2962, 3257,3580, 358521
First Stage Cleaning and Checking22
First Stage Assembly24
First Stage 2962, 3257, 3580, 3585 Assembly25
First Stage 2801, 3257 10, 3585 10 Assembly26
First Stage 2808 Assembly27
First Stage Balanced Housing28
Repair Instructions First Stage Reducing Valve30
First Stage Valve 3790 Secondary Side31
First Stage Valve with Yoke31
First Stage Valve 3790 Removal32
First Stage Valve 3790 - Parts to be Replaced35
First Stage Valve 3790 Checking35
First Stage Valve 3790 Assembly36
First Stage Valve with G 5/8"36
Testing and Adjustment of Regulator Jetstream Art. No. 2960, 396041
Second Stage: Tightness Testing of Low Pressure Valve Withservo Valve41
Adjustment of the Inhalation Resistance41
Checking the Purge Button41
Testing and Adjustment of Regulator Jetstream Art. No. 294042
Poseidon Cyklon 300 Technical Data44
Second Stage 1133 Exploded View47
Second Stage 1133, 3224, 3354, 3536 Removal48
Second Stage 1133, 3224, 3354, 3536 Cleaning51
Second Stage 1133, 3224, 3354, 3536 Checks before Installing51
Second Stage 1133, 3224, 3354, 3536 Assembly52
First Stage Reducing Valve Art. No. 2305, 2422, 3070 Exploded View57
First Stage Valve 2305, 2422, 3070 Secondary Side Removal58
First Stage 3070 (2422)59
First Stage 230559
When Servicing the Regulator - Parts to be Replaced61
Cleaning and Checking61
Greasing and Assembly62
First Stage 3070, 242263
First Stage 3070, 2422 / 230565
Old Type Spring Housing66
First Stage Reducing Valve View - 2801, 2808, 2962, 3257, 3580, 358567
First Stage Valve 2801, 2808, 2962, 3257, 3580, 3585 Removal68
Balance Housing69
First Stage 2962, 3257, 3580, 3585 - Removal70
First Stage 2801 - Removal71
First Stage 2801, 3257 10, 3585 10 - Removal72
First Stage 2801, 2808, 2962, 3257, 3580, 358573
First Stage 2962, 3257, 3580, 3585 - Assembly77
First Stage 2801, 3257 10, 3585 10 - Assembly78
First Stage 2808 - Assembly79
Repair Instructions First Stage Reducing Valve 3720, 3720 1082
First Stage Valve 3720 Secondary Side83
First Stage Valve 3720 Removal84
First Stage Valve 3720 - Parts to be Removed When Servicing Regulagor87
First Stage Valve 3720 Checking87
First Stage Valve 3720 Assembly88
Testing and Adjusting of Regulator Cyklon 300 Art. No. 298093
Adjustment of the Clearance93
Adjustment of Ejector Sleeve93
Testing and Adjusting of Regulator Cyklon 5000 (Diveair) 2950, 395094
Triton 2000 Technical Data96
3755 - Second Stage Repair Instructions97
Second Stage 3755 Removal98
Second Stage 3755 - Checks before Assembly101
Second Stage 3755 Assembly102
Assembly of Low Pressure Valve102
First Stage Reducing Valve 3880, 3880-10 Repair105
First Stage Valve 3880, 3880 10 Secondary Side106
First Stage Valve 3880, 3880 10 Removal107
First Stage Valve 3880, 3880 10 Cleaning109
First Stage Valve 3880, 3880 10 - Parts to be Replaced110
First Stage Valve 3880, 3880 10 Checking110
First Stage Valve 3880, 3880 10 Assembly111
Testing and Adjustment of Regulator Triton 2000 Art. No. 3750116
Checking and Adjustment of the Inhalation Resistance116
Tools View117
Tools List118
1133 Second Stage Cyklon 300, Yellow/Black View119
3354 Second Stage Cyklon 5000 (Diveair), Black View119
3536 Second Stage Octopus, Yellow View119
1133 Second Stage Cyklon 300, Yellow/Black Parts List120
3354 Second Stage Cyklon 5000 (Diveair), Black Parts List120
3536 Second Stage Octopus, Yellow Parts List120
2305 First Stage, Cyklon 300 View121
2305 First Stage, Cyklon 300 Parts List122
2801 First Stage, Wheel G 5/8" / 2808 First Stage, Yoke View123
2801 First Stage, Wheel G 5/8" / 2808 First Stage, Yoke Parts List124
2961 Second Stage Jetstream,Usa=Odin, Black - View125
2941 Second Stage Jetstream,Usa=Odin, Yellow/Black - View125
3546 Second Stage Octopus, Yellow - View125
2941 Second Stage Jetstream,Usa=Odin, Yellow/Black - Parts List126
2961 Second Stage Jetstream,Usa=Odin, Black - Parts List126
3546 Second Stage Octopus, Yellow - Parts List126
2962 First Stage, Jetstream (USA = ODIN) View127
2962-10 First Stage, Jetstream YOKE View127
3257 First Stage, Diveair (USA = Cyklon 5000) View127
3257-10 First Stage, Cyklon 5000 (Diveair) YOKE View127
2962 First Stage, Jetstream (USA = ODIN) Parts List128
2962-10 First Stage, Jetstream YOKE Parts List128
3257 First Stage, Diveair (USA = Cyklon 5000) Parts List128
3257-10 First Stage, Cyklon 5000 (Diveair) YOKE Parts List128
3070 First Stage, Cyklon 300 and Oceanair (Usa=Thor) View129
3070 First Stage, Cyklon 300 and Oceanair (Usa=Thor) Parts List130
3580 First Stage, Jetstream / 3585 First Stage, Cyklon 5000 View131
3580 First Stage, Jetstream / 3585 First Stage, Cyklon 5000 Parts List132
3580-10 First Stage, Jetstream (YOKE) View133
3585-10 First Stage, Cyklon 5000 (YOKE) View133
3580-10 First Stage, Jetstream (YOKE) Parts List134
3585-10 First Stage, Cyklon 5000 (YOKE) Parts List134
3790 First Stage G 5/8" View135
3790 First Stage G 5/8" Parts List136
3790-10 First Stage Yoke View137
3790-10 First Stage Yoke Parts List138
3880 First Stage G 5/8" View139
3880 First Stage G5/8" Parts List140
3755 Second Stage, Black / 3755 30 Second Stage, Yellow View141
3755 Second Stage, Black / 3755 30 Second Stage, Yellow Parts List142
Service Kit no 3424 for Breathing Regulator JETSTREAM no 2960143
Service Kit no 3827 for Breathing Regulator JETSTREAM no 3960144
Service Kit no 3423 for Breathing Regulator OCEANAIR no 2940145
Service Kit 3430 for Breathing Regulator CYKLON 300 (G 1/8") no 1908146
Service Kit 3824 for Breathing Regulator CYKLON 300 (UNF 3/8") no 2980147
Service Kit no 3422 for Breathing Regulator CYKLON 5000 no 2950148
Service Kit no 3825 for Breathing Regulator CYKLON 5000 no 3950149
Service Kit no 3769 for First Stage no 3720, 3790 and 3880150
Kit 3872 for First Stage no 3720, 3790, 3880 W/ O-Rings of Viton151
Service Kit no 3826 for Breathing Regulator TRITON no 3750152
Service Kit no 3549 for Second Stage Jetstream/Oceanair153
Service Kit no 3551 for Second Stage Cyklon 300/5000154
