Section III Operation Keyboard
3-1. Operating keyboard
3-1-1. JP6E8600 specification and function description(Standard)
°C
S
%
V
A
Hz
S
V
%
A
°C
Hz
UNIT
UNIT
Hz
°C
A
%
V
S
S
V
%
A
°C
Hz
UNIT
UNIT
Hz
°C
A
%
V
S
S
V
%
A
°C
Hz
UNIT
UNIT
Hz
°C
A
%
V
S
无单位
S
V
%
A
°C
Hz
UNIT
+
-
ALARM
V
A
Hz
FWD REV
s
%
PRG
FWD
MF1
ESC
STOP
RESET
SET
°C
MF2

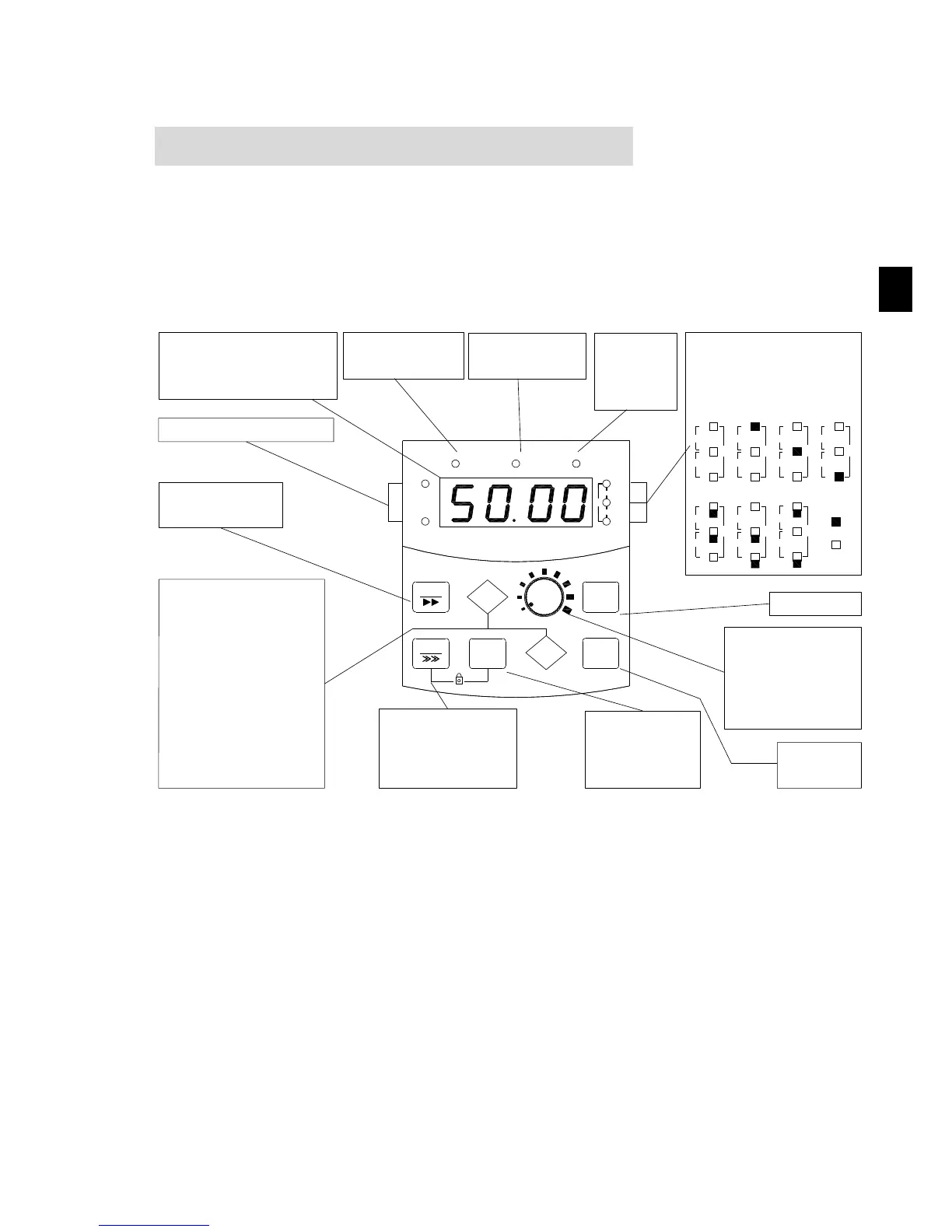

Monitor Select 1 Numerical Display
* display the corresponding values of the
function under query status
* display fault code under fault condition
* display the object set byA00 monitor
select while running
Reverse Lndication Light
* ON：reverse indication
* OFF：not reverse indication
* FLASH：reverse accelerating
Forward Indication Light
* ON：forward indication
* OFF：not forward indication
* FLASH：forward accelerating
Alarm Indication
Light
* ON：faulty
* OFF：good
* FLASH：previous
fault was not
confirmed
Positive And Negative Sign Indication Light
* just for monitor select
Parameter Setting/Shift Key
* start to change parameter
* Functions value adjustments
Modification bit
Multi-function Key MF1/MF2
* MF1 define functions through parameter
A43
* MF2 define functions through parameter
A44
* A43/A44=0 MF defined as plus function
* A43/A44=1 MF defined as minus function
* A43/A44=2 MF defined as free stop
function
* A43/A44=3 MF defined as forward
function
* A43/A44=4 MF defined as reverse
function
* A43/A44=5 MF defined as Punctuality
dynamic function
* A43/A44=6 MF defined as Anti-Jog
function
* A43/A44=7 MF defined as Jog function
* A43/A44=8 MF defined as Up function
* A43/A44=9 MF defined as Down function
Acceleration Select/Parameter
Setting Key
* press SET key and rotate JOG key
while selecting parameter, the
parameter location changes to 10
* finish and save the value changes
* change the object under monitor
Quit Key
* exit the revisement of
parameter
* reture to displaying menu
from submenu or functional
menu
* exit default state
Reset /Stop Key
* drive stop running
* Exception Reset
* fault confirmation
Potentiometer Key
* under checking state, the
function items value has been in
increment or decrement
* under revising state, the edit bit
of function items value has been
in increment or decrement
* under monitoring, setting
frequency to increase or decrease
Forward running key
* drive forward running
OFF
ON
Data Unit Prompt Light
*composed of three indication lights，located
on the right side of the LED digital
tube，Display status corresponding to the six
units，indicate the unit of the parameters
displayed by LED。
*the correspondence is as following：
