Section V Parameter Function Table
78
Section V
H54
7 Segment digital voltage
giving
-100.0~100.0
%
70.0
Y
Digital voltage set function can analogy give frequency, select by F02, F03;analogy give
PID set or feedback, select by P02, P03;it can be shifted by the input terminal o36~o46.
H55
Multi-speed status
1 bit
Current speed step
0~0xF
-
-
N
10 bit
Current acceleration
segment
0~0x7
100 bit
Current running time
segment
0~0x7
1000bit
Current digit voltage
segment
0~0x7
1 bit: Current speed segment
0~16 segment, In hex, can be shifted t by o36~o46
10 bit: Current acceleration segment
0~7 segment, in hex, can be shifted by o36~o46
100 bit: Current running time segment
0~7 segment, in hex, can be shifted by o36~o46, valid when program running
1000 bit: Current digital voltage segment
0~7 segment, in hex, can by shifted by terminal o36~o46

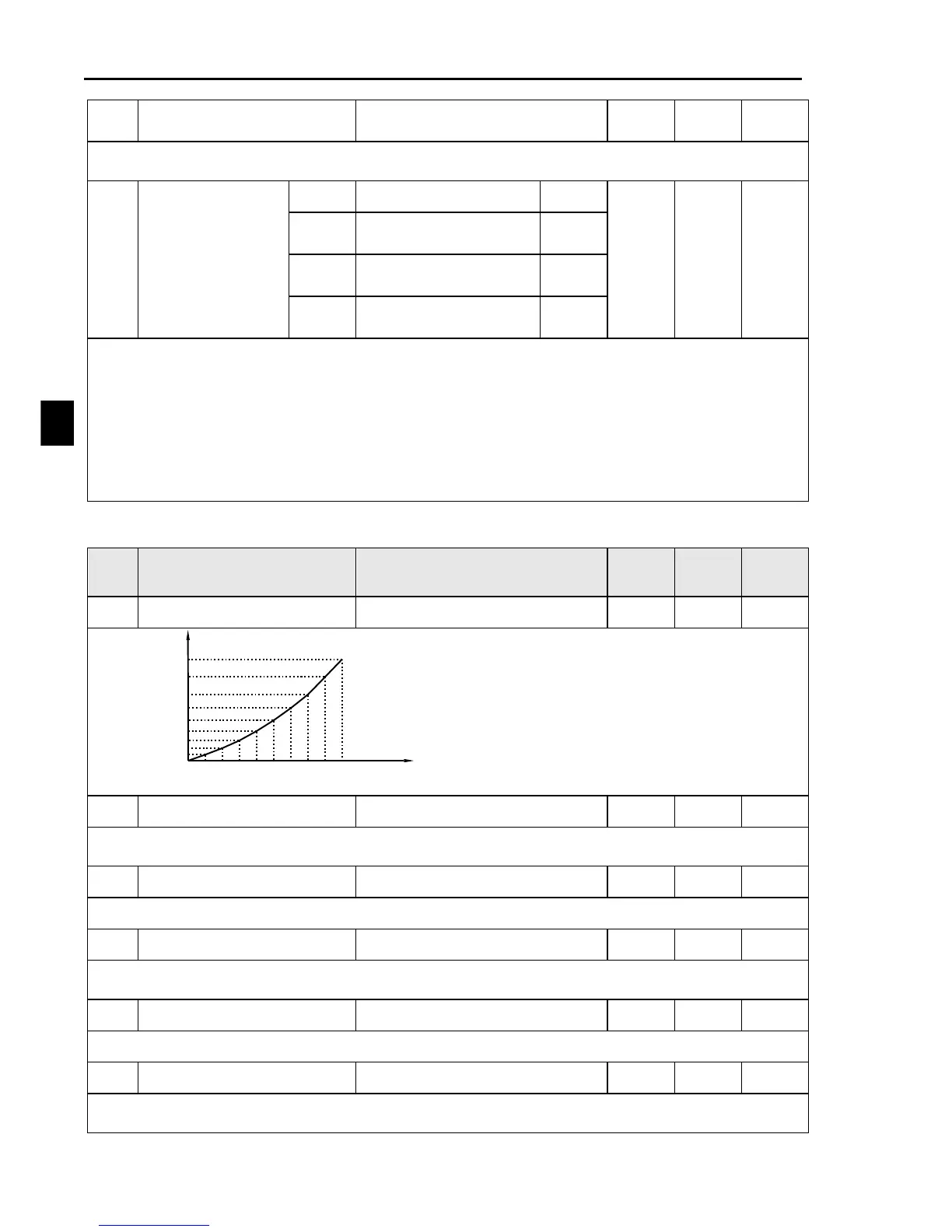

5-7 V/Fcurve Group:U00-U15(0x0400-0x040F)
Code
Description / LCD
Setting Range
Unit
Factory
Setting
Change
Limited
U00
V/F setting frequency1
0.00~U02
Hz
5.00
N
V8
V7
V6
V5
V4
V3
V2
V1
F1
F2 F3 F4 F5 F6 F7 F8
max output
max frequency
(0,0)
output frequency
output voltage
User-defined the first frequency value of V / F curve, corresponding to V1
U01
V/F setting voltage 1
0~U03
%
10
N
User-defined the first voltage percentage of V / F curve, on the base of rated output voltage
100% of frequency inverter, corresponding to F1.
U02
V/F setting frequency2
U00~U04
Hz
10.00
N
User-defined the second frequency value of V / F curve, corresponding to V2.
U03
V/F setting voltage 2
U01~U05
%
20
N
User-defined the second voltage percentage of V / F curve, on the base of rated output voltage
100% of frequency converter, corresponding to F2.
U04
V/F setting frequency3
U02~U06
Hz
15.00
N
User-defined the third frequency value of V / F curve, corresponding to V3.
U05
V/F setting voltage 3
U03~U07
%
30
N
User-defined the third voltage percentage of V / F curve, on the base of rated output voltage
100% of frequency converter, corresponding to F3.
