Section V Parameter Function Table
50
Section V
motor
A53
Reaction for motor over-heat
No reaction for motor
over-heat
0
-
0
Y
Warning and runing
1
Warning and deceleration
stopping
2
Warning and free stopping
3
When the displaying value of motor temperature A5 surpassed value A52, inverter will warn
and react according to reaction for motor over-heat A53 set.
A54
Display of motor
temperature
8000
-50.0~300.0
℃
-
N
Shows the motor temperature or temperature at other point.

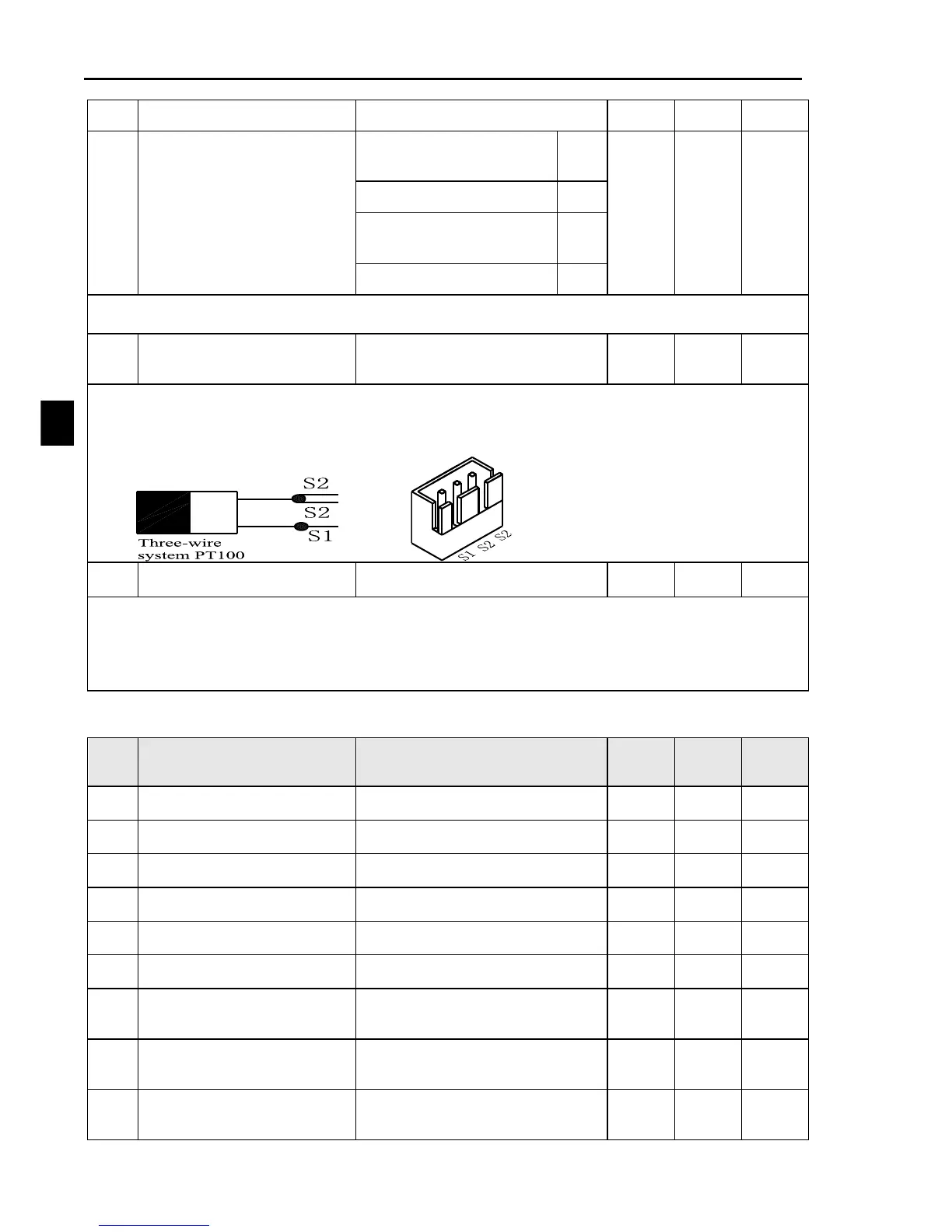

Control card PT100 plug should plug into the optional PT100 thermocouple devices
Three lines PT100
A55
Proportion of linkage ratio
0.10~10.00
-
1.00
Y
In application of proportion of linkage, A55 setting is multiply ratio of that when slave
inverter received setting frequency command from host inverter.
Setting this inverter as one slave inverter of system for proportion of linkage.
Frequency Keyboard F01 set＝proportion of linkage ratio
*
frequency S00 set by host inverte
5-5 IO Function System：o00-o68(0x0200-0x0244)
Code
Description / LCD
Setting Range
Unit
Factory
Setting
Change
Limited
o00
AI1 nput
X1
8000
-
-
-
-
o01
AI1input
X2
8000
-
-
-
-
o02
AI2input
X1
0~100.0
%
0.0
Y
o03
AI2input
X2
0~100.0
%
100.0
Y
o04
AI3
input
X1
0~100.0
%
0.0
Y
o05
AI3
input
X2
0~100.0
%
100.0
Y
o06
AI1 input
X1 corresponding
value Y1
8000
-
-
-
-
o07
AI1 input
X2 corresponding
value Y2
8000
-
-
-
-
o08
AI2 input
X1 corresponding
Value Y1
-100.0~100.0
%
0.0
Y
