Powtran PI8600 Series User Manual

Section III Operation Keyboard
13
Section III
3-2-2. parameter upload to the keyboard
Parameter Item
Description
y01 parameter upload to
the keyboard
No function
0
System parameter upload to the memory area1 in the keyboard
1
System parameter upload to the memory area2 in the keyboard
2
System parameter upload to the memory area3 in the keyboard
3
System parameter upload to the memory area4 in the keyboard
4
Clear memory area in the keyboard 1, 2, 3, 4
5

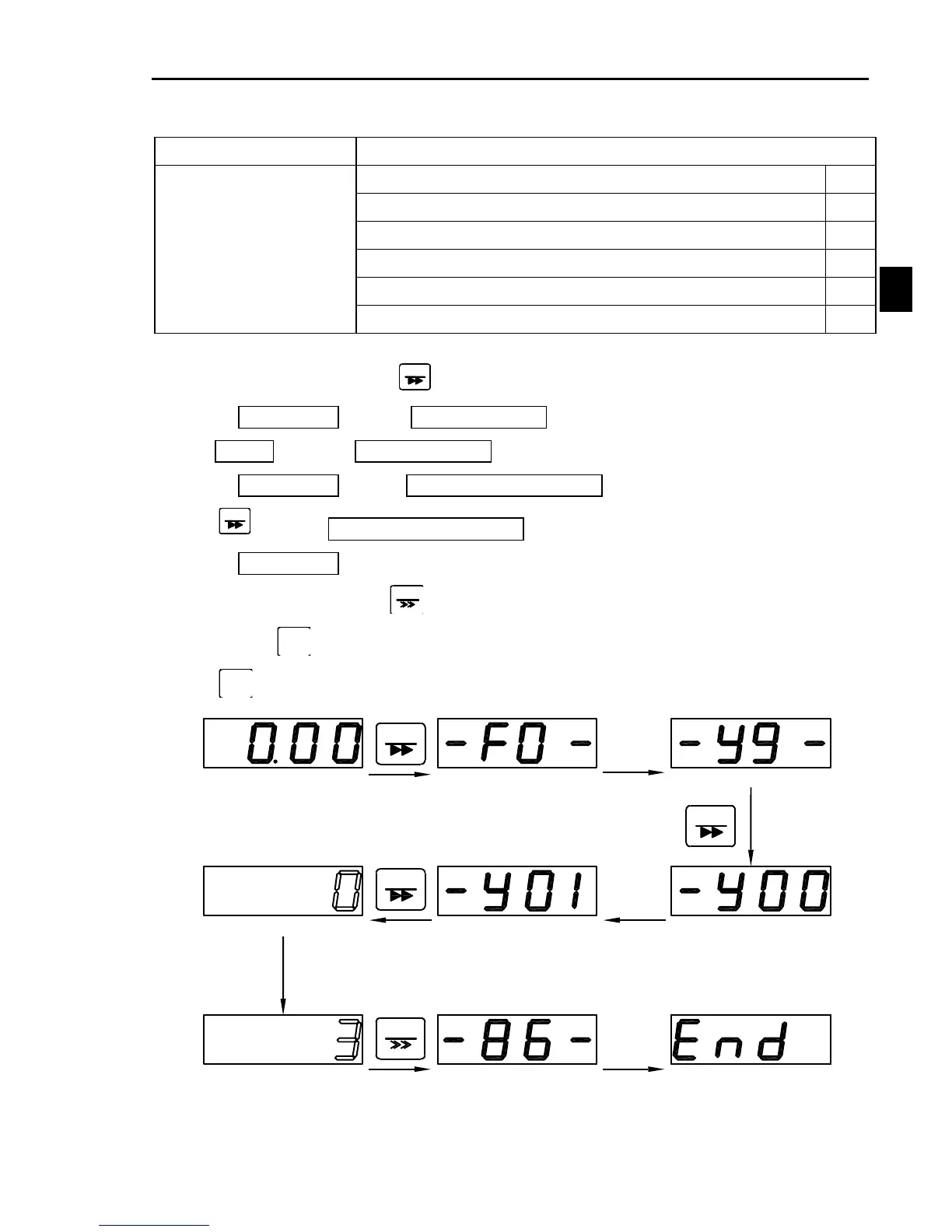

Example . System parameter upload to the memory area3 in the keyboard
1. Under monitoring status, press
PRG
into parameter group to check status;
2. Through potentiometerSwitch to y00-23 System FG;
3. Press ENTER, enter into y00-23 System FG parameter group to check status;
4. Through potentiometerSwitch to y01P Upload To Keyboard;
5. Press
PRG
, enter into y01P Upload To Keyboard parameter modify status;
6. Through potentiometer adjust value to be 3 ;
7. Finish the adjustment, press
SET
;the speed for upload will display on the LED;if cancle the
change, press
ESC
to escape to the modification status;
8. Press
ESC
to exit to previous menu.
PRG
PRG
SET
PRG
Upload
Finished
One Times
One Times
One Times
adjust the value
of parameter
revisement
Potentiometer
Potentiometer
Potentiometer
Two Times
