Powtran PI8600 Series User Manual

Appendix IV
142
Appendix I
V
controlled soft-start pump start and stop.
Soft-start pump terminal control, stop first.
Soft-start pump is not controlled by constant pressure water supply system.Soft-start pump can
be used as sewage pumps and fire pumps.
IV-2-9. Application Guide
3 Pumps constant pressure water supply + sewage pump
a) pump configurations: variable frequency pump 3 units, 15kW,1 unit sewage pump,15kW.
b) The set pressure 0.8Mpa.
c) pressure gauge options: pressure transmitter, DC 4 ~ 20mA output, 1.6Mpa.
d) Inverter choice: PI8000 015F3 and WSC_RS485 water supply board.

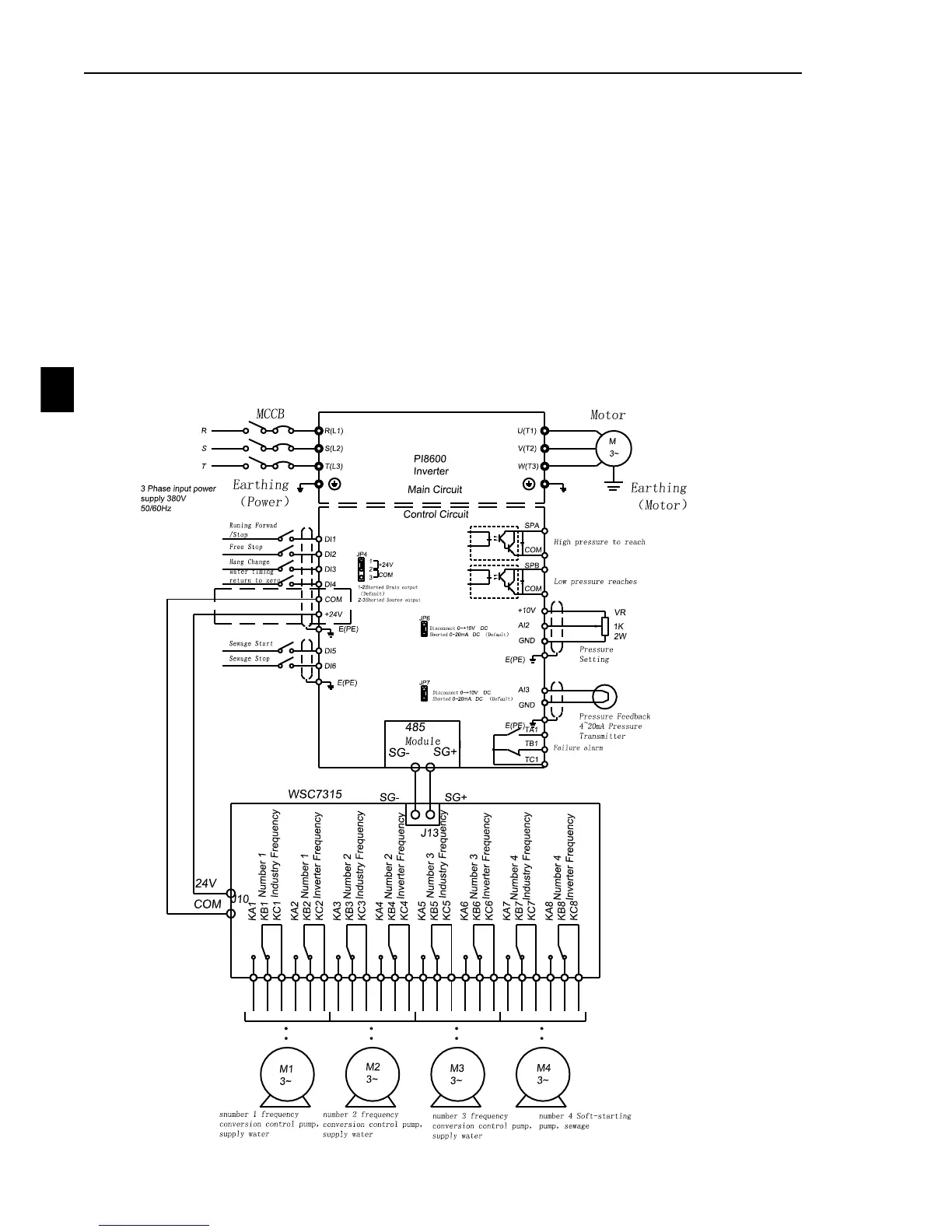

e) Hardware Connection.
f) Parameter setting
