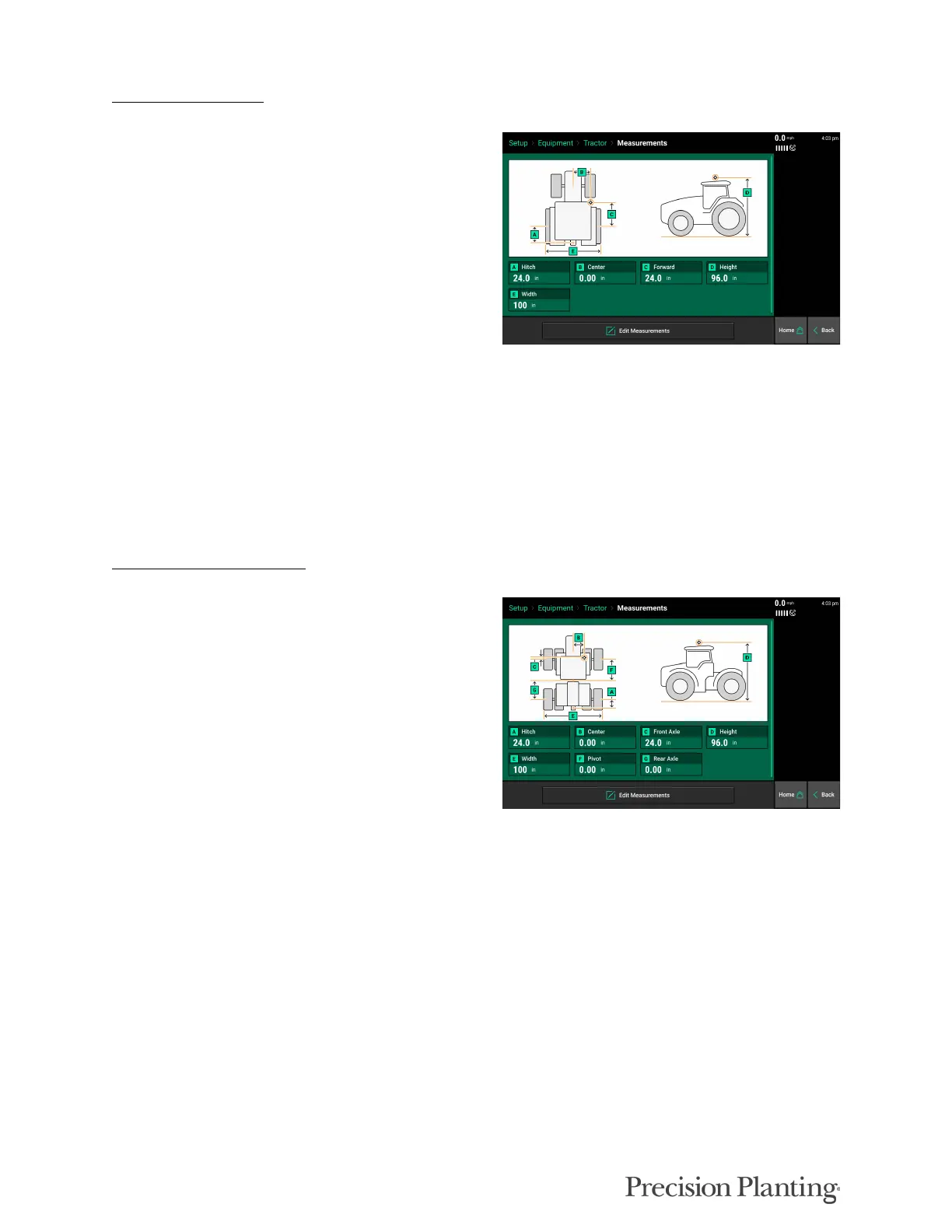

Steering Type: Front
A - Hitch: Measure the distance from the center
of the rear axle the hitch (or pivot point on a two
point pivot planter hitch).
Note: If a 3 pt planter hitch is connected, enter 0.
B - Center: Measure the distance from the center
line of the tractor to the GPS output location.
Then select if the GPS output location is to the
left or right side of the tractor's center line.
C - Forward: Measure the distance from the center of the rear axle to the center of the GPS
antenna.
D - Height: Measure the distance from the ground to the base of the GPS output location.
E- Width: Measure the distance from outside of the left track to the outside of the right track.
Steering Type: Articulated
A - Hitch: Measure the distance from the pivot
location at the hitch to the center of the rear fixed
axle.
B - Center: Measure the distance from the center
line of the tractor to the center of the GPS
antenna. Then select if the GPS receiver is to the
left or right side of the tractor's center line.
C- Front Axle: Measure the distance from the
center of the front fixed axle to the GPS output
location. Indicated if the GPS output location is
in Front or Back of the front axle.
D- Height: Measure the distance from the ground to the GPS output location.
E- Width: Measure the distance from the hitch to the outside of the wheel.
F - Pivot: Measure the distance from the center of the front fixed axle to the articulation point.
G - Rear Axle: Measure from the articulation point to the center of the rear fixed axle.
