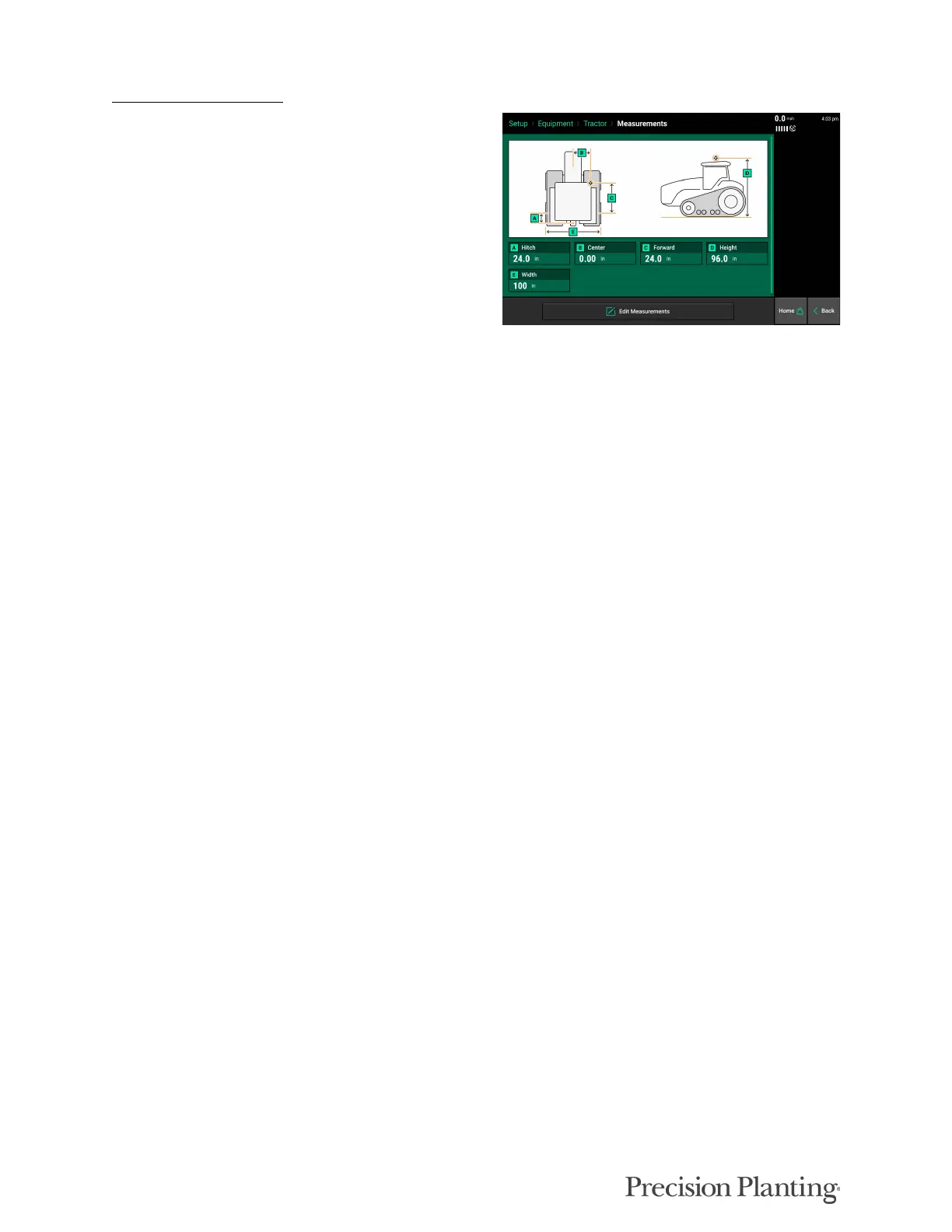

Steering Type: Tracked
A - Hitch: Measure the distance from the pivot
location to the hitch (or pivot point on a two point
pivot planter hitch).
B - Center: Measure the distance from the center
line of the tractor to the GPS output location.
Then select if the GPS output location is to the
left or right side of the tractor's center line.
C - Forward: Measure from the track pivot to the GPS output location. Indicate if the GPS
output location is in Front or Back of the pivot location.
D - Height: Measure the distance from the ground to the base of the GPS output location.
E- Width: Measure the distance from outside of the left track to the outside of the right track.
