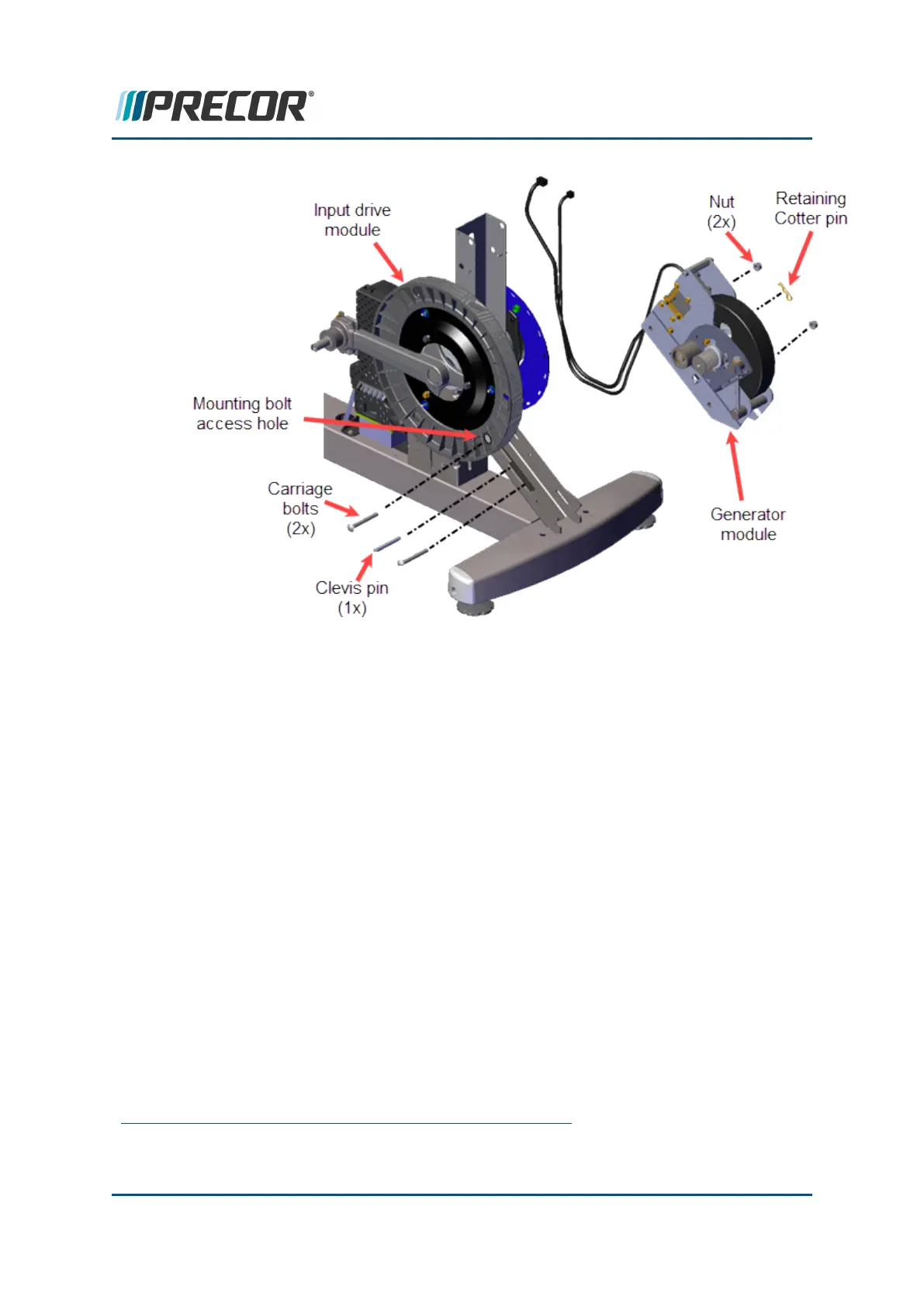

2. Reinstall the two 1/2" carriage mounting bolts. To access the upper generator carriage
mounting bolt hole, rotate the Input Drive pulley until the access hole aligns with the
frame generator assembly upper carriage bolt hole. Fully tighten nuts to 180 in-lbs +/-
54 (20.3 +/_ 4.5 Nm).
3. Reinstall the clevis pin and secure using the retaining cotter pin.
4. Starting from the generator assembly, route the generator input and Eddy Brake load
cables through the drive tower gusset access hole across the outside left side of the
frame to the LPCA board. Reconnect the Generator input cable and Eddy Brake load
cable to the LPCA (J1) and (J7) I/O
1
ports respectively.
1
Input and Output Interface.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 124
6 Replacement Procedures
Generator/Brake Assembly Replacement
