l On touchscreen (P62, P80, and P82) consoles: Access the Service menu
(51765761) and select System Settings > Systems Test > CrossRamp Test.
CAUTION: Be careful to NOT jam the ramp when operating the incline level in
CROSSRAMP TEST mode and there is an active lift error code (E40, E42, E45, or
E46). There are no software position min/max limit stops in this mode of operation to
prevent over extending the ramp beyond the upper and lower limits
4. Disconnect the Lift Motor Assembly input power/control cable.
WARNING:Make sure to disconnect the Lift Motor input power/control cable or it is
possible for the ramp to automatically lower to level 1 under certain circumstances,
such as, if the CrossRamp Test is exited or the console powers down and then the
pedals are moved. This unexpected action could cause personal injury.

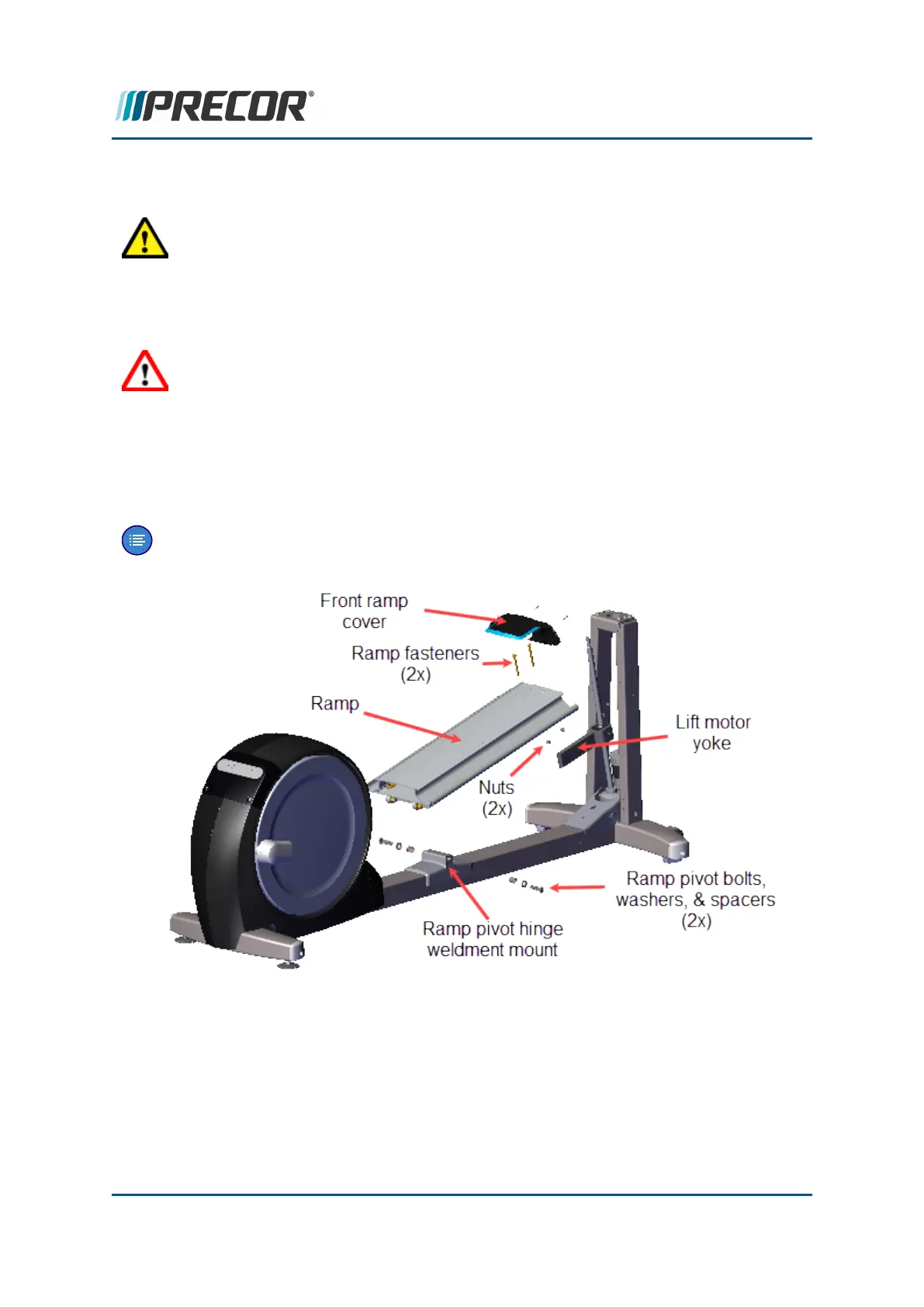

5. Disconnect the Lift Motor Yoke from the Ramp by uninstalling the Ramp, see "Ramp
Assembly Replacement" on page187. The Ramp must be removed to disconnect the
yoke from the Ramp.
Note:Ramp and Ramp Front cover removal is required to remove the Ramp from the
Lift Motor Yoke.
6. Remove the hitch pin from the Lift Motor clevis pin. Then, while holding the lift motor
assembly, slide the clevis pin to the left just enough to clear the bracket right side bolt
hole. Then tilt the lift motor assembly forward enough for the jackscrew to clear the
inside of the frame tower weldment and then lift to remove. Do not fully remove the
clevis pin to remove the Lift Motor Assembly. Retain part(s) and/or fastener(s) for install-
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 163
6 Replacement Procedures
Lift Motor Replacement
