Precor Experience Series User Manual

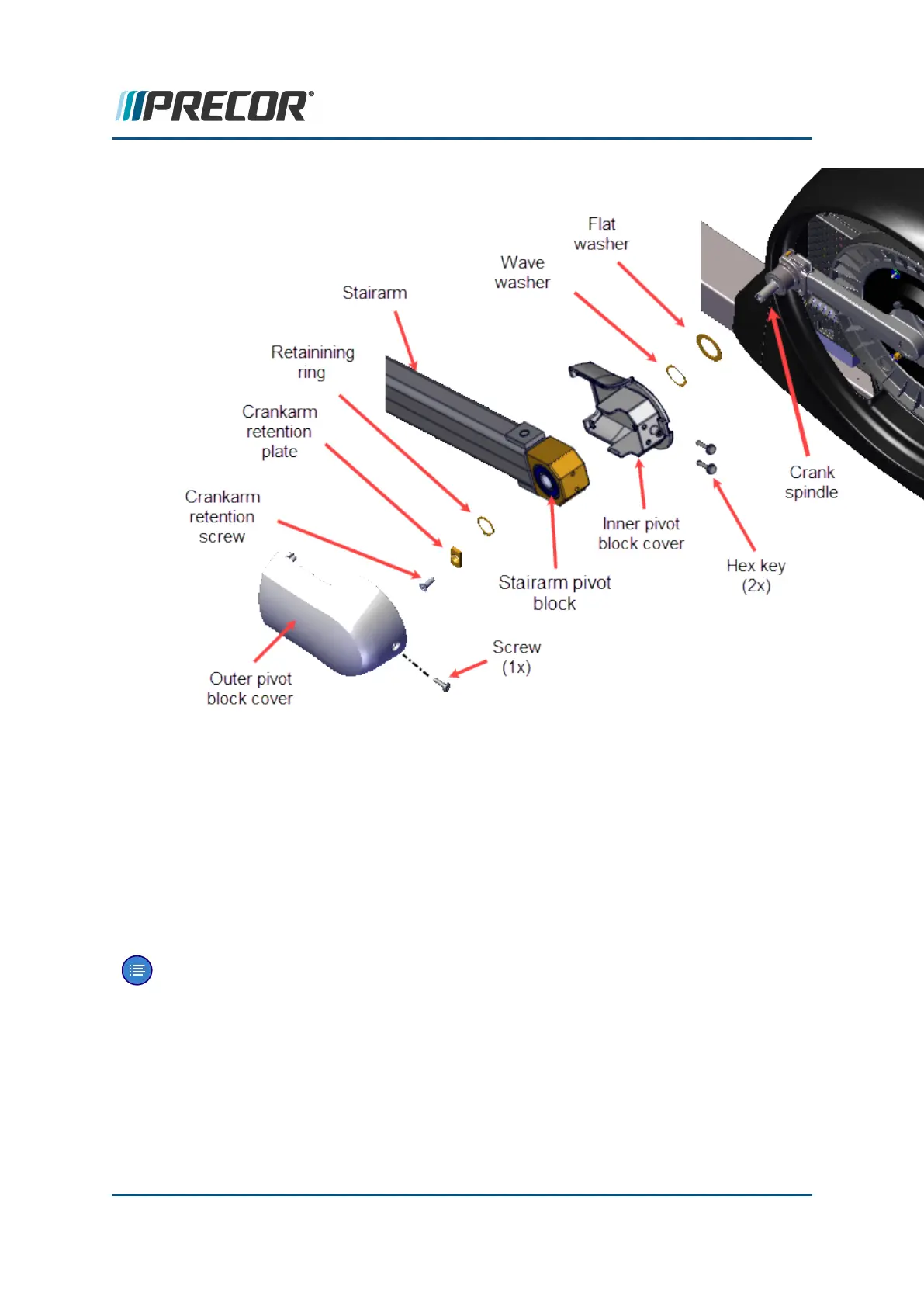

5. Remove the left and right Stairarm wheels from the ramp. Roll the Stairarm wheel down
and off the back of the ramp track. Carefully lay the Stairarm onto the floor.
6. Remove the left and right 3/4" (19 mm) Nylock Ramp Pivot bolts, flat washers, and
spacers. Carefully lift the ramp rearward and rest the ramp onto the frame weldment
behind the weldment ramp pivot mount.Note that the front of the ramp and lift motor
yoke and jackscrew will move side to side when the ramp is moved rearward. There-
fore, hold the front of the ramp steady as it exits the front tower weldment to prevent
damaging the front Lift Side covers. Discard the Nylock Ramp Pivot bolts and do not
reuse for installation.
Note: The rear ramp pivot mount must be removed first so that the ramp can be
moved rearward away from the front tower weldment providing access to the forward
ramp cover fasteners. The front ramp cover must be removed to allow access to the
front ramp-yoke bolts.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 189
6 Replacement Procedures
Ramp Assembly Replacement
