Chapter 3 Hardware Configuration
BE-0986 SERIES USER MANUAL
Page: 3-8
3.4 Setting Connectors and Jumpers
3.4.1 COM3 and COM4 PIN9 Definition Selection Guide

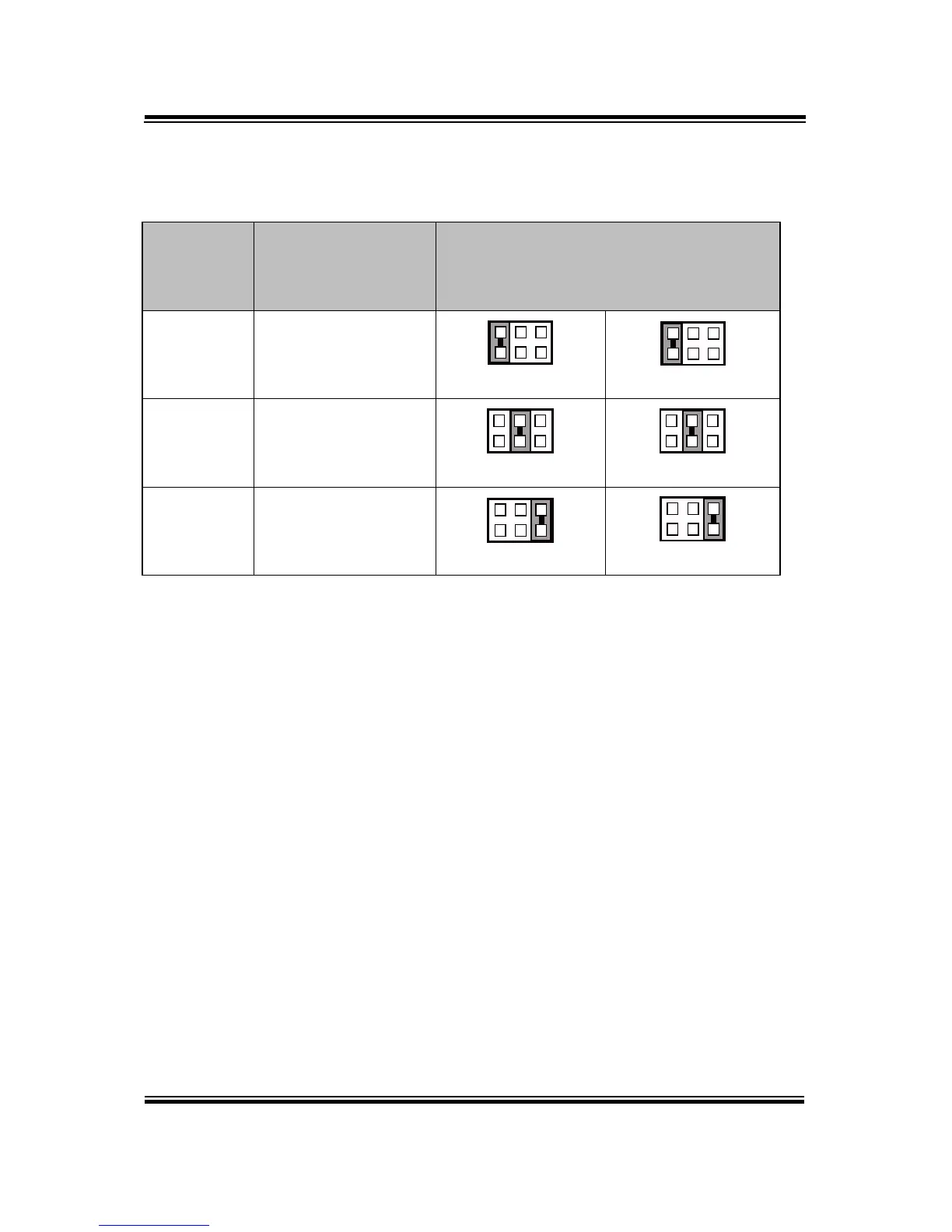

JP_COM3, JP_COM4: COM3 and COM4 Port pin9 RI/5V/12V Selection
SELECTION
JUMPER SETTING
JUMPER ILLUSTRATION
RI
1-2
(Default Setting)
5
6
1
2
JP_COM3
5
6
1
2
JP_COM4
+12V
3-4
5
6
1
2
JP_COM3
5
6
1
2
JP_ COM4
+5V
5-6
5
6
1
2
JP_COM3
5
6
1
2
JP_ COM4
