Pro-Tech BE-0986 - Msata Connector

Chapter 3 Hardware Configuration
BE-0986 SERIES USER MANUAL
Page: 3-17

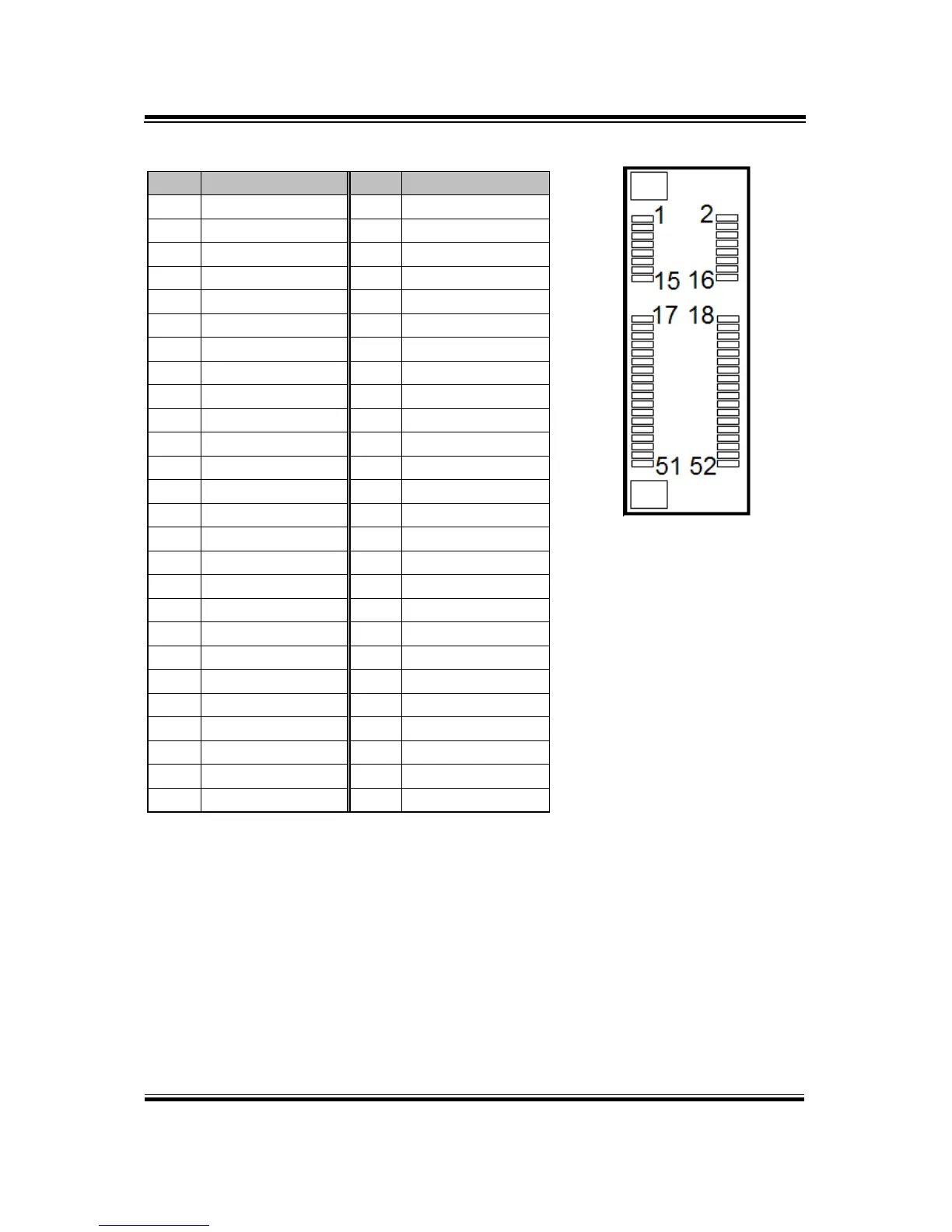

3.4.15 mSATA Connector
M_SATA1: mSATA Slot (USB type mPCIe card is supported.)
PIN
ASSIGNMENT
PIN
ASSIGNMENT
1
NC
2
V3P3S_MSATA
3
NC
4
GND
5
NC
6
NC
7
NC
8
NC
9
GND
10
NC
11
NC
12
NC
13
NC
14
NC
15
GND
16
NC
17
NC
18
GND
19
NC
20
NC
21
GND
22
NC
23
SATA_RXP1
24
V3P3S_MSATA
25
SATA_RXN1
26
GND
27
GND
28
NC
29
GND
30
NC
31
SATA_TXN1
32
NC
33
SATA_TXP1
34
GND
35
GND
36
USB2_P0_DN
37
GND
38
USB2_P0_DP
39
V3P3S_MSATA
40
GND
41
V3P3S_MSATA
42
NC
43
NC
44
NC
45
NC
46
NC
47
NC
48
NC
49
NC
50
GND
51
NC
52
V3P3S_MSATA
M_SATA1
