Chapter 3 Hardware Configuration
BE-0986 SERIES USER MANUAL
Page: 3-16
3.4.14 MINI PCI EXPRESS SLOT

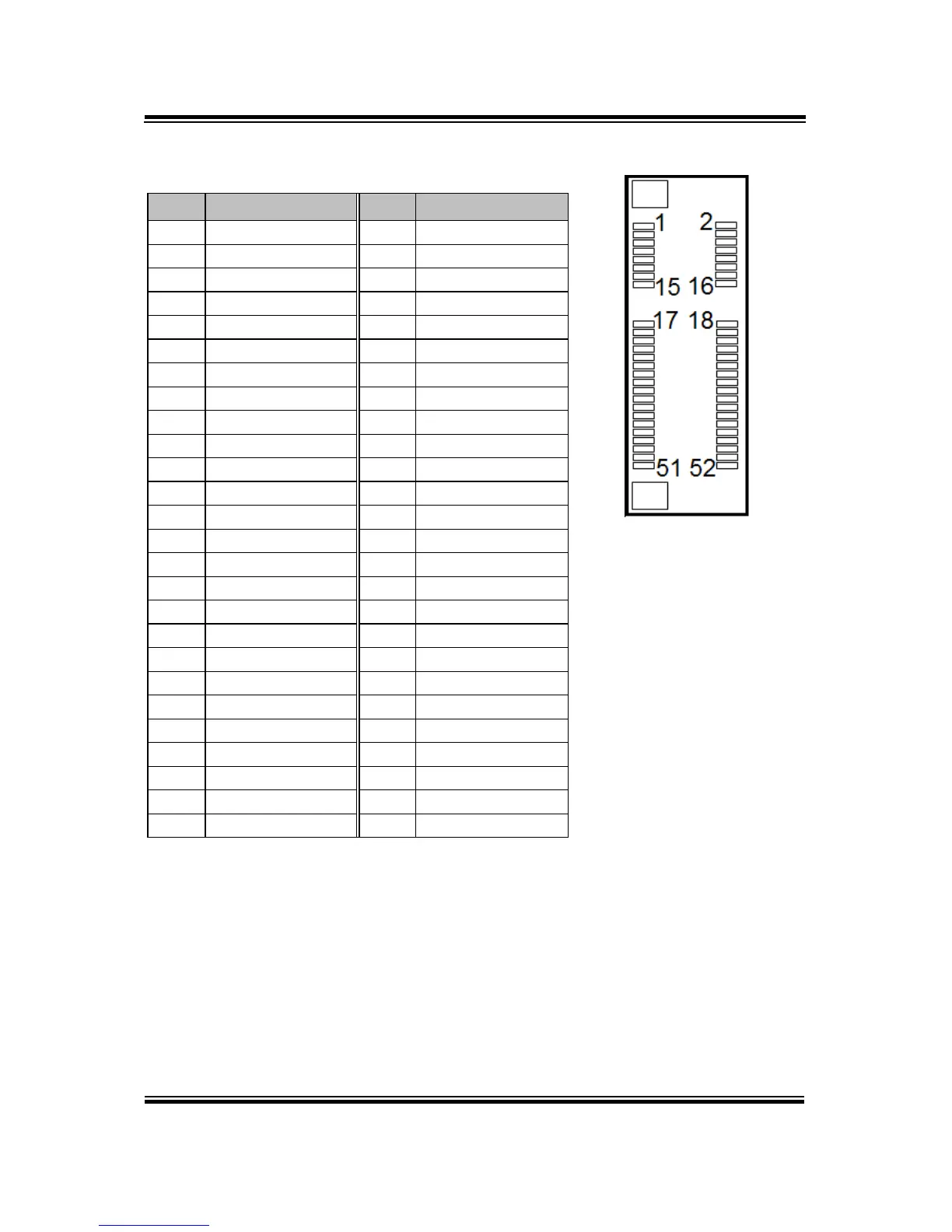

M_PCIE1: Mini-PCI Express Slot
PIN
ASSIGNMENT
PIN
ASSIGNMENT
1
PCIE_WAKEJ
2
V3P3S
3
Reserved
4
GND
5
Reserved
6
VCC1_5
7
M_CLKREQJ
8
Reserved
9
GND
10
Reserved
11
M_PCIE_CLKN
12
Reserved
13
M_PCIE_CLKP
14
Reserved
15
GND
16
Reserved
17
Reserved
18
GND
19
Reserved
20
Reserved
21
GND
22
PMU_PLTRST_N
23
PCIE_P2_RXN
24
V3_3SB
25
PCIE_P2_RXP
26
GND
27
GND
28
VCC1_5
29
GND
30
SMB_3P3_SCL
31
PCIE_P2_TXN
32
SMB_3P3_SDA
33
PCIE_P2_TXP
34
GND
35
GND
36
USB2_P7_DN
37
GND
38
USB2_P7_DP
39
V3P3S
40
GND
41
V3P3S
42
NC
43
GND
44
NC
45
NC
46
NC
47
NC
48
VCC1_5
49
NC
50
GND
51
NC
52
V3P3S
Mini PCI Express is the successor of the Mini PCI card and provides an increased
data throughput. The cards have a detached network interface and are equipped with
one lane. They are used in particular in embedded designs or compact box PCs.
M_PCIE1
