Chapter 3 Hardware Configuration
BE-0986 SERIES USER MANUAL
Page: 3-22

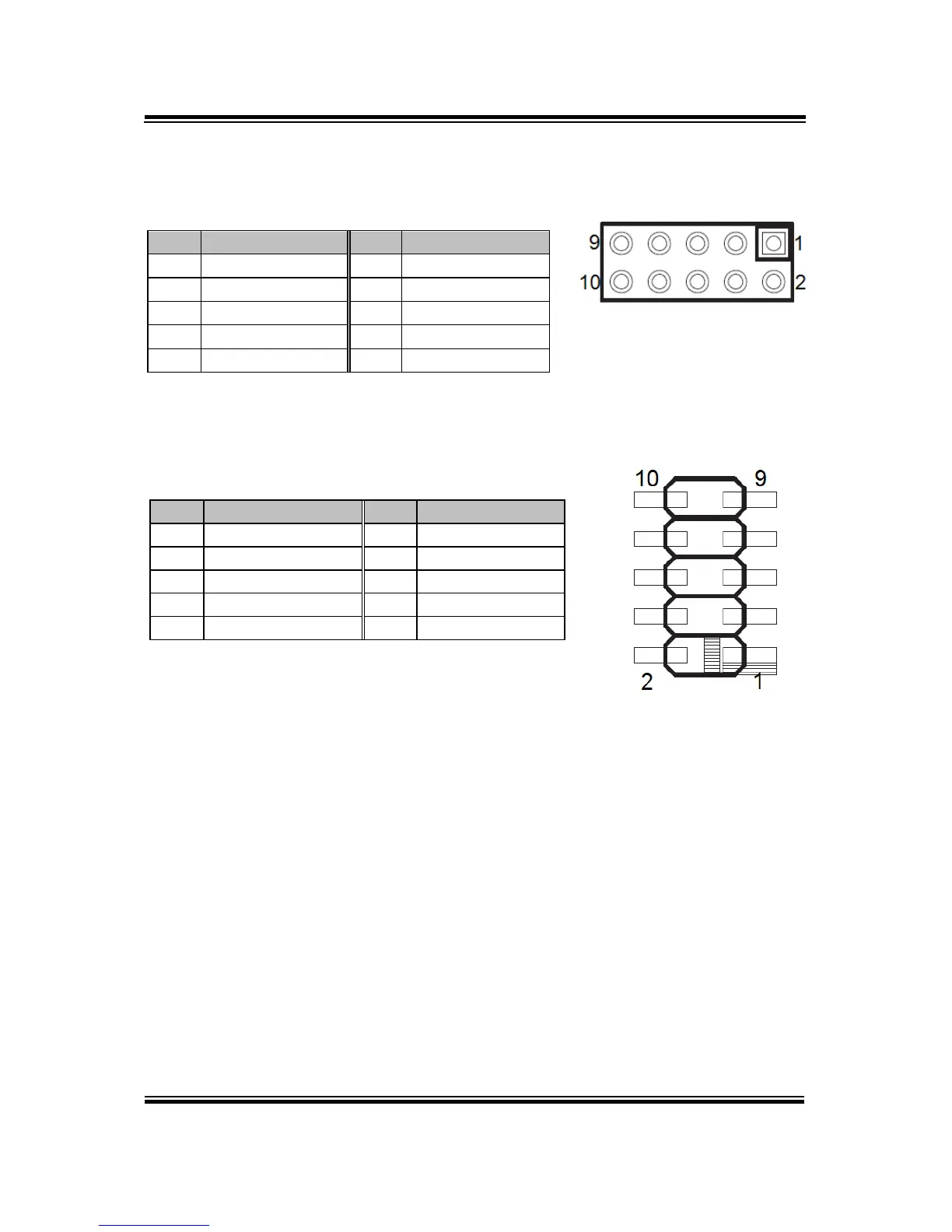

3.4.18 FRONT PANEL CONNECTOR
JFP1: Front Panel Connector
PIN
ASSIGNMENT
PIN
ASSIGNMENT
1
HDD LED+
2
POWER LED+
3
HDD LED-
4
GND
5
GND
6
GND
7
RESET BTN
8
GND
9
NC
10
POWER BTN
3.4.19 HD AUDIO CONNECTOR
AUDIO1: HD Audio Connector for Line_in/Line_out/Mic_in.
PIN
ASSIGNMENT
PIN
ASSIGNMENT
10
LINE-OUT-L
9
LINE-OUT-L
8
HD_GND
7
HD_GND
6
HD_LINE-IN-R
5
HD_LINE-IN-L
4
HD_GND
3
HD_GND
2
HD_MIC1-R
1
HD_MIC1-L
JFP1
AUDIO1
