Chapter 3 Hardware Configuration
BE-0986 SERIES USER MANUAL
Page: 3-25
3.4.25 LVDS VCC VOLTAGE SELECTION
Jumper Name: JP_VDD1
Description: Voltage selection jumper for selecting PIN1, PIN29, PIN30
(LVDS_VCC) voltage of LVDS1.

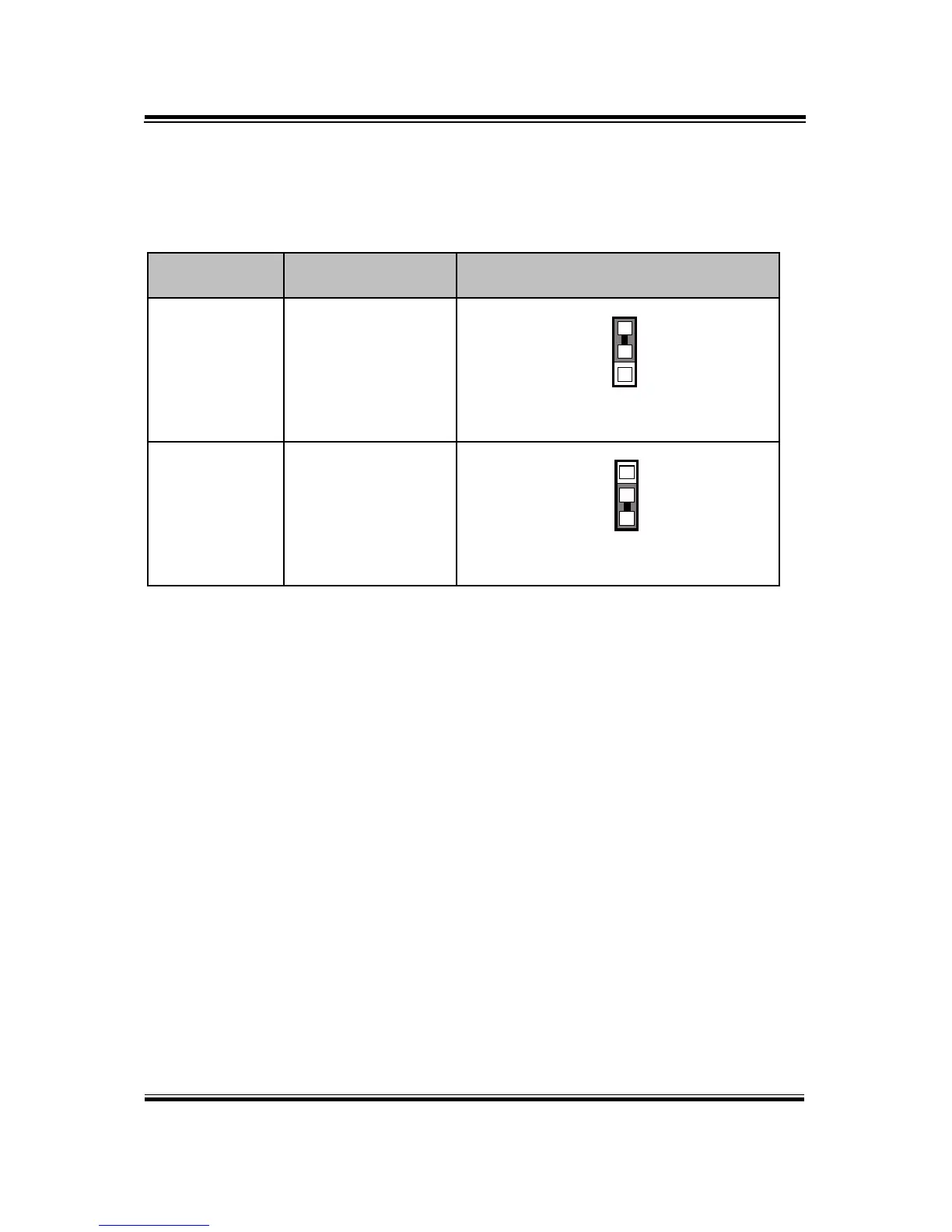

SELECTION
JUMPTER
SETTING
JUMPER ILLUSTRATION
3.3V
1-2
(Default Setting)
1
JP_VDD1
5V
2-3
1
JP_VDD1
Note: Please refer to PANEL INVERTER CONNECTOR for more information
about pin definition of JINV1.
