Chapter 3 Hardware Configuration
BE-0986 SERIES USER MANUAL
Page: 3-14

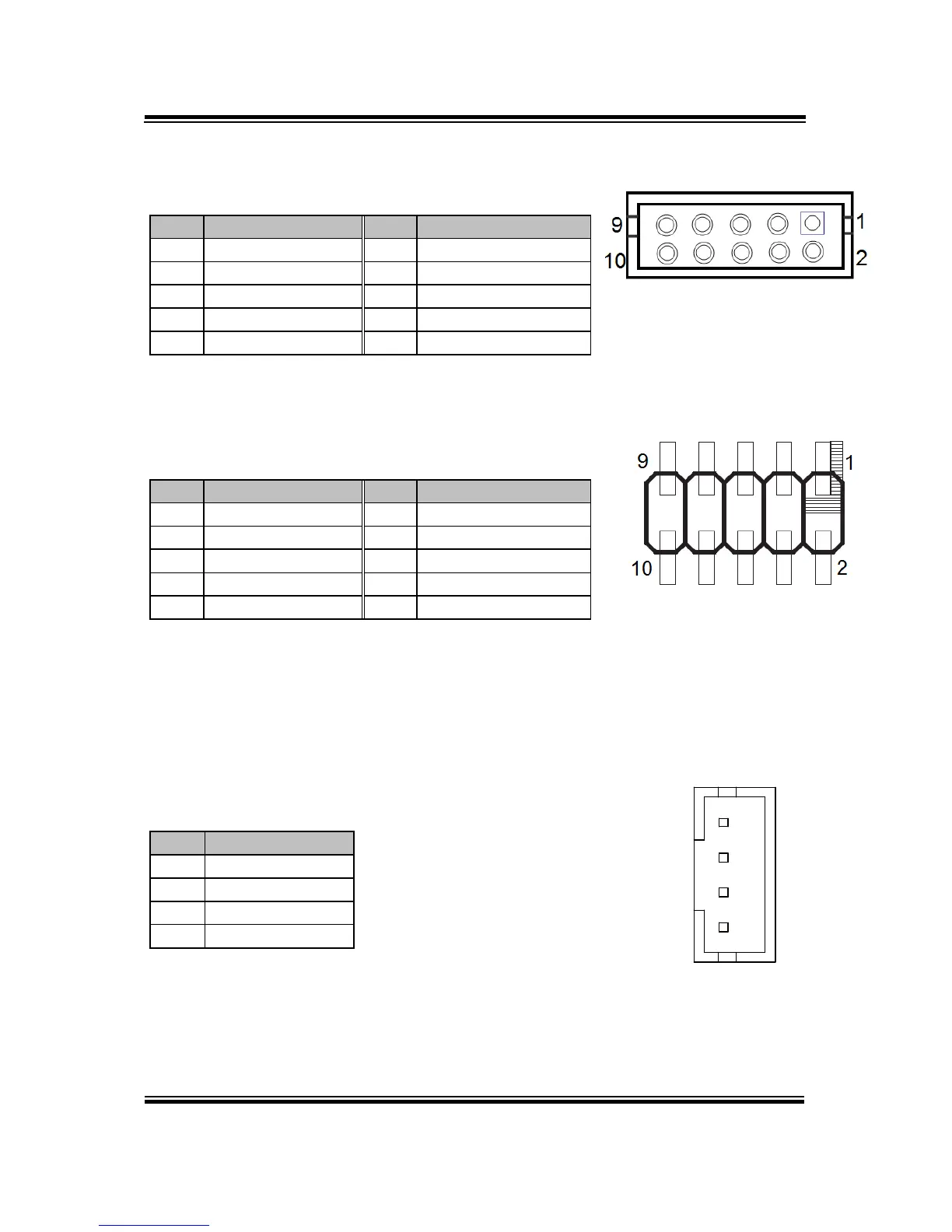

3.4.8 USB 2.0 PORT (USB3)
USB3: Internal USB 2.0 Port x 2
USB 2.0 signals
PIN
ASSIGNMENT
PIN
ASSIGNMENT
1
VCC5_USB3
2
VCC5_USB3
3
USB2_P5_DN
4
USB2_P6_DN
5
USB2_P5_DP
6
USB2_P6_DP
7
GND
8
GND
9
GND
10
GND
3.4.9 Programmable GPIO PIN HEADER
JDIO1: GPIO pin header and 5V power.
PIN
ASSIGNMENT
PIN
ASSIGNMENT
1
VCC5
2
GND
3
GPI/GPO 0
4
GPI/GPO 4
5
GPI/GPO 1
6
GPI/GPO 5
7
GPI/GPO 2
8
GPI/GPO 6
9
GPI/GPO 3
10
GPI/GPO 7
Notes:
3.4.10 I2C WAFER
JI2C1: I2C Wafer
PIN
ASSIGNMENT
1
GND
2
VCC5
3
I2C0_SCL_33
4
I2C0_SDA_33
JI2C1
USB3
JDIO1
1
1. Users can set the GPI/GPO configuration via Protech’s API/Utility.
2. Default setting is GPI every time when system AC power is re-applied from
power failure state
3. Configuration can be still kept even in S5 state unless system AC power is lost.
