Chapter 3 Hardware Configuration
BE-0986 SERIES USER MANUAL
Page: 3-23

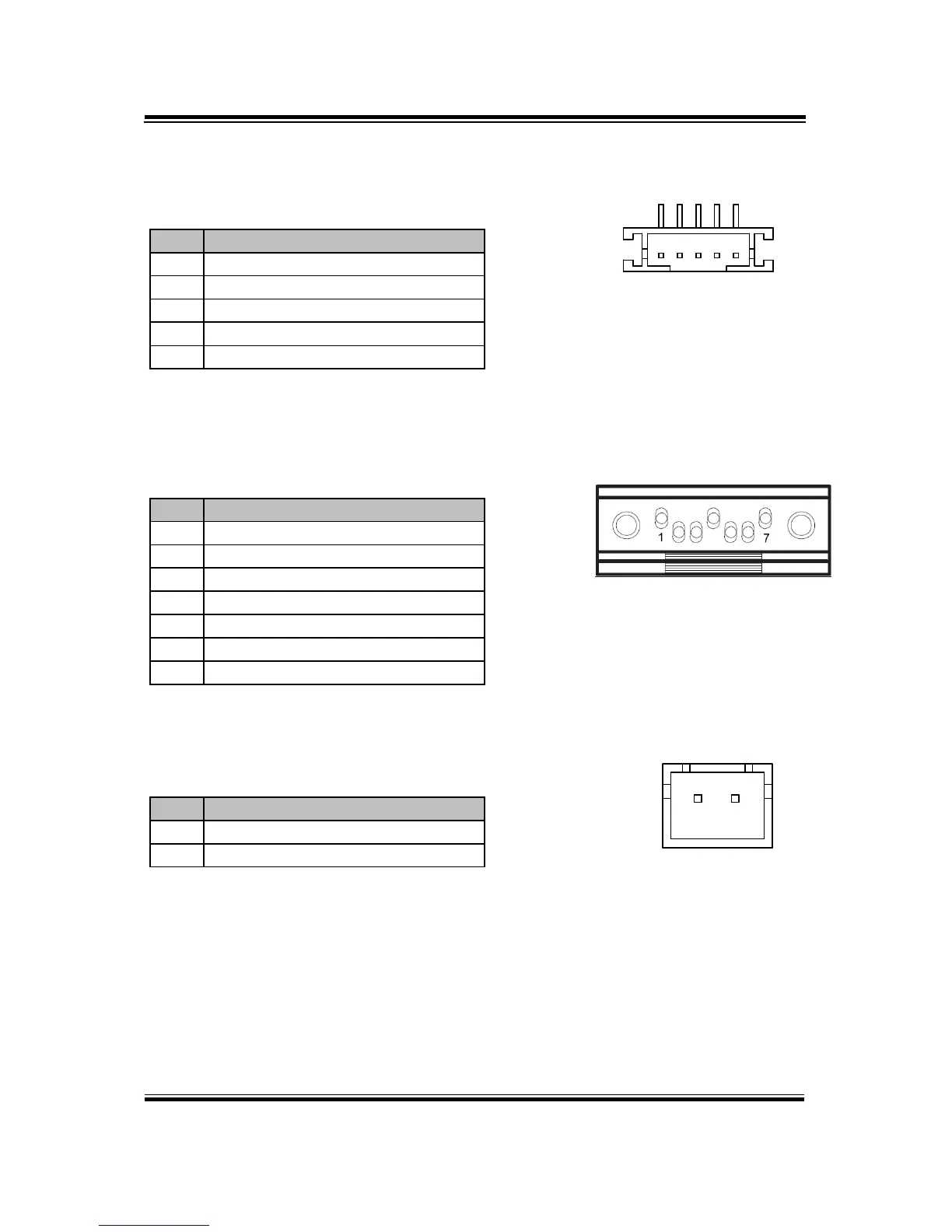

3.4.20 PANEL INVERTER CONNECTOR
JINV1: Panel Inverter Connector
PIN
ASSIGNMENT
1
VCC12
2
VCC12
3
GND
4
LVDS_BKLCTL
5
LVDS_BKLTEN
3.4.21 SATA 3.0 CONNECTOR
SATA1: Serial ATA 3.0 Connector
PIN
ASSIGNMENT
1
GND
2
SATA_TXP0
3
SATA_TXN0
4
GND
5
SATA_RXN0
6
SATA_RXP0
7
GND
3.4.22 SATA Power CONNECTOR
SATA_PWR1: Serial ATA Power Connector
PIN
ASSIGNMENT
2
GND
1
VCC5
JINV1
SATA1
SATA_PWR1
