Chapter 3 Hardware Configuration
BE-0986 SERIES USER MANUAL
Page: 3-18

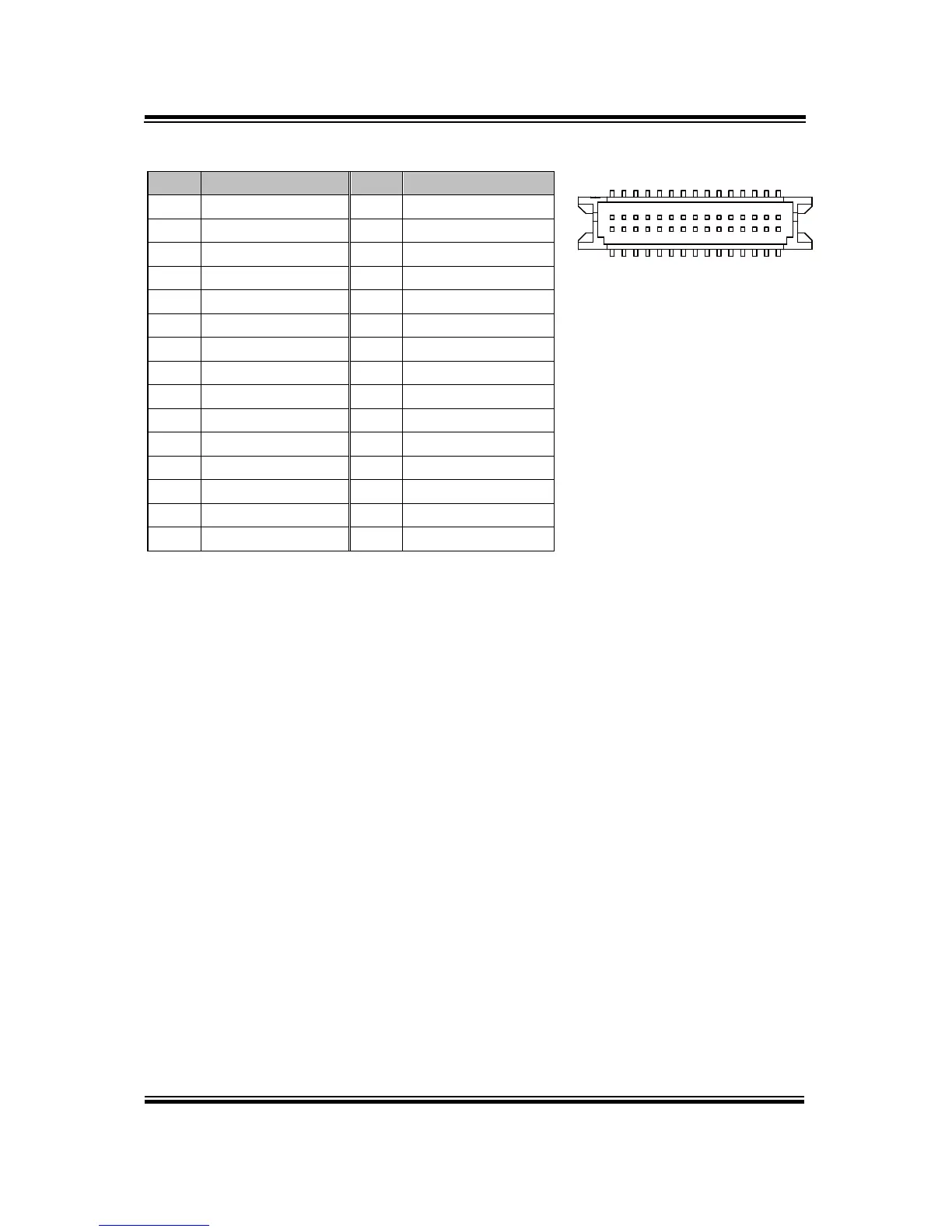

3.4.16 LVDS CONNECTOR
LVDS1: LVDS Connector
PIN
ASSIGNMENT
PIN
ASSIGNMENT
2
GND
1
LVDS_VCC
4
LVDS_CLKB_DP
3
LVDS_CLKB_DN
6
LVDS_B2_DN
5
GND
8
GND
7
LVDS_B2_DP
10
LVDS_B1_DP
9
LVDS_B1_DN
12
LVDS_B3_DN
11
LVDS_B3_DP
14
LVDS_B0_DN
13
LVDS_B0_DP
16
LVDS_CLKA_DP
15
GND
18
GND
17
LVDS_CLKA_DN
20
LVDS_A2_DN
19
LVDS_A2_DP
22
LVDS_A1_DP
21
GND
24
GND
23
LVDS_A1_DN
26
LVDS_A0_DN
25
LVDS_A0_DP
28
LVDS_A3_DN
27
LVDS_A3_DP
30
LVDS_VCC
29
LVDS_VCC
LVDS1
1
29
2 30
