Pro-Tech BE-0986 - MCU FW Rewrite Connector; System Fan Connector; DC Power Input Connector

Chapter 3 Hardware Configuration
BE-0986 SERIES USER MANUAL
Page: 3-15

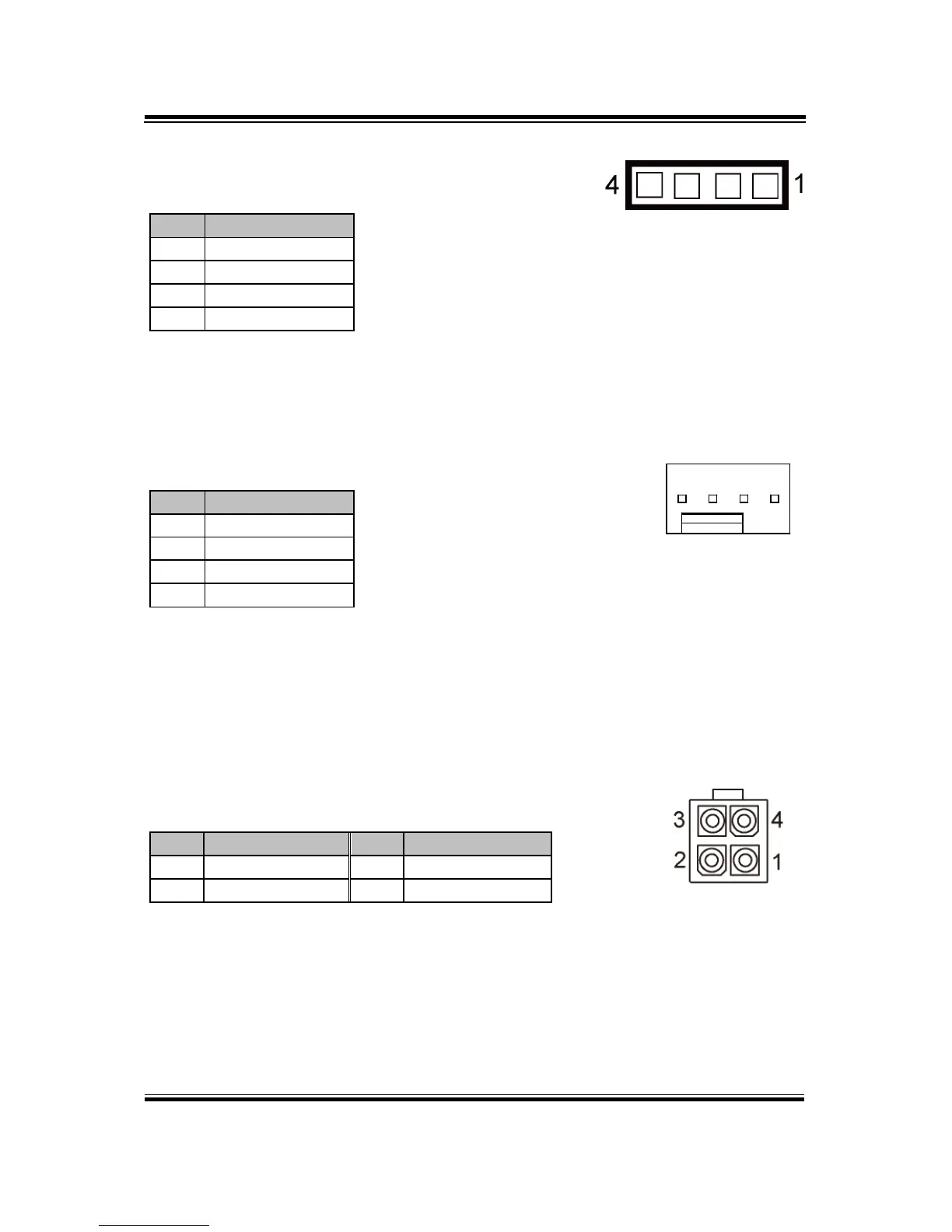

3.4.11 MCU FW Rewrite Connector
JMCU1: MCU FW Rewrite Connector
PIN
ASSIGNMENT
1
MCU_5VSB
2
GND
3
MCU_SPD
4
MCU_SPC
3.4.12 SYSTEM FAN CONNECTOR
FAN1: System Fan Connector
PIN
ASSIGNMENT
1
GND
2
VCC12
3
SYSFANIN
4
SYSFANOUT
Notes:
1. Fan speed mode can be set by BIOS or API.
2. Default BIOS setting is “Auto Duty-Cycle Mode”. Please see Chapter 5 or check
API document for more details.
3.4.13 DC POWER INPUT CONNECTOR
PWR2: DC Power Input Connector
PIN
ASSIGNMENT
PIN
ASSIGNMENT
3
VCC12
4
VCC12
2
GND
1
GND
FAN1
PWR2
JMCU1
1
