Profichip VPC3+S - Page 119

Operational Specifications 10
VPC3+S User Manual
Revision 1.04
119
Copyright © profichip GmbH, 2012
AB10..0
DB7..0
valid
data valid
XCS
R_W
E_CLOCK
35
40
37
39
42
41
33
31
36

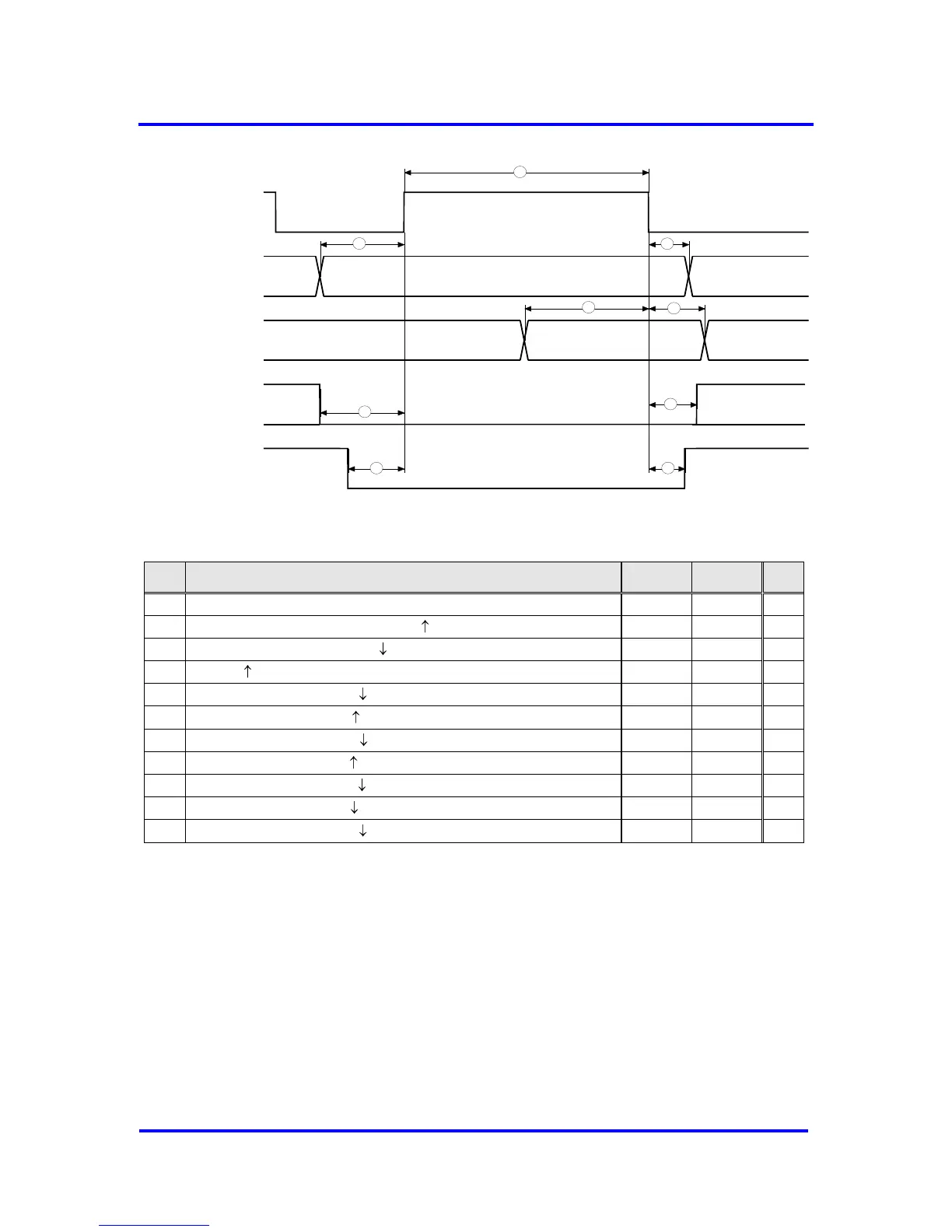

Figure 10-15: Synchronous Motorola-Mode, WRITE (AS = 1)
No.
Parameter
MIN
MAX
Unit
31
E_Clock pulse width
136.7
ns
33
Address setuptime (A10..0) to E_Clock
10
ns
37
Address holdtime after E_Clock
0
ns
32
E_Clock to Data valid
83
ns
38
Data holdtime after E_Clock
3
12
ns
35
R_W setuptime to E_Clock
10
ns
39
R_W holdtime after E_Clock
5
ns
36
XCS setuptime to E_Clock
0
ns
40
XCS holdtime after E_Clock
0
ns
41
Data setuptime to E_Clock
10
ns
42
Data holdtime after E_Clock
0
ns
Figure 10-16: Timing, Synchronous Motorola Mode
