3 Pin Description
3.1 Pinout
The VPC3+S is available in two package versions: LFBGA48 or LQFP48.
Several pins are sharing different functions. Which pin function actually
applies depends on the interface mode selected by the configuration pins.
Four parallel interface modes as well as I2C and SPI mode with con-
figurable clock phase and clock polarity are supported. Please see the
following chapters for details.

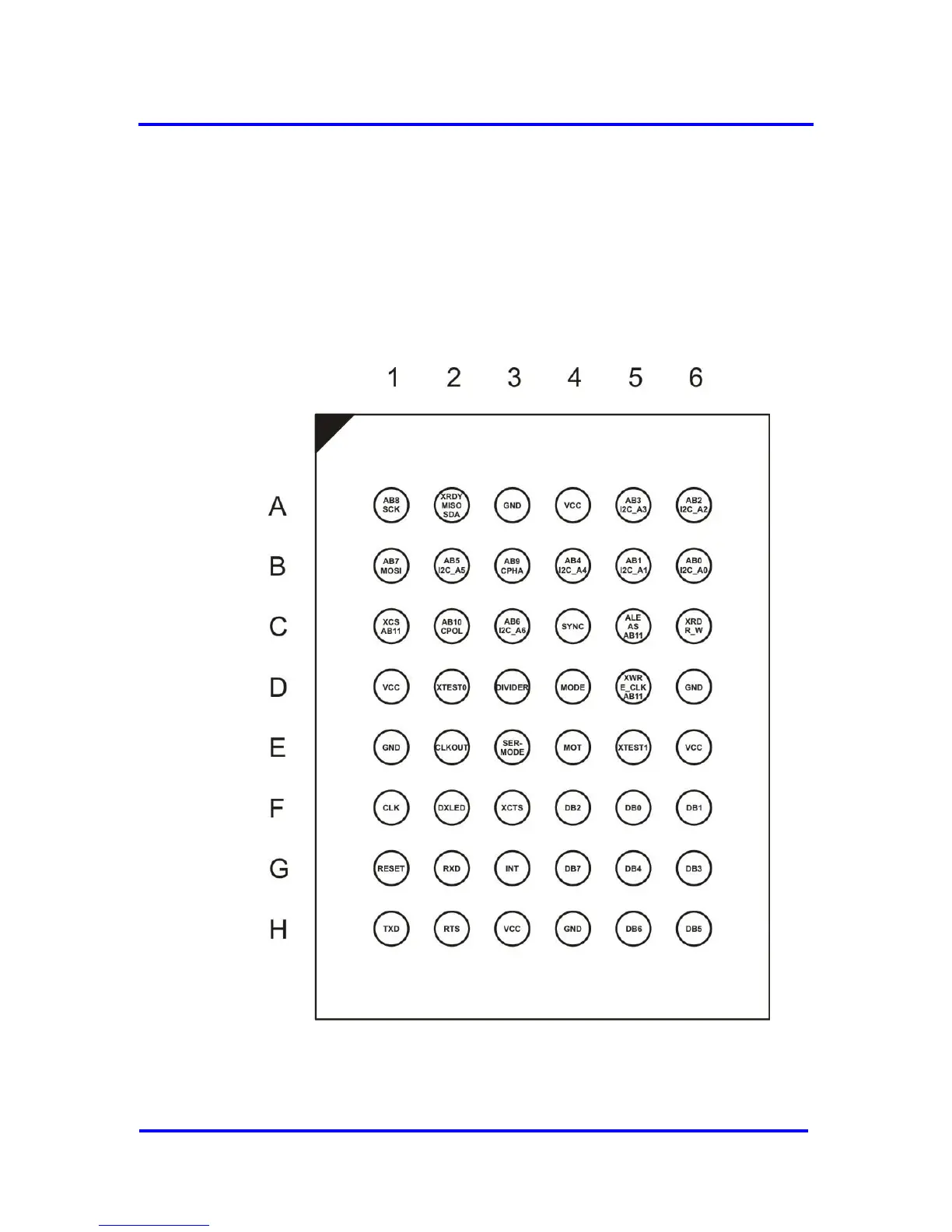

Figure 3-1: VPC3+S LFBGA48 Pinout (TOP VIEW)
