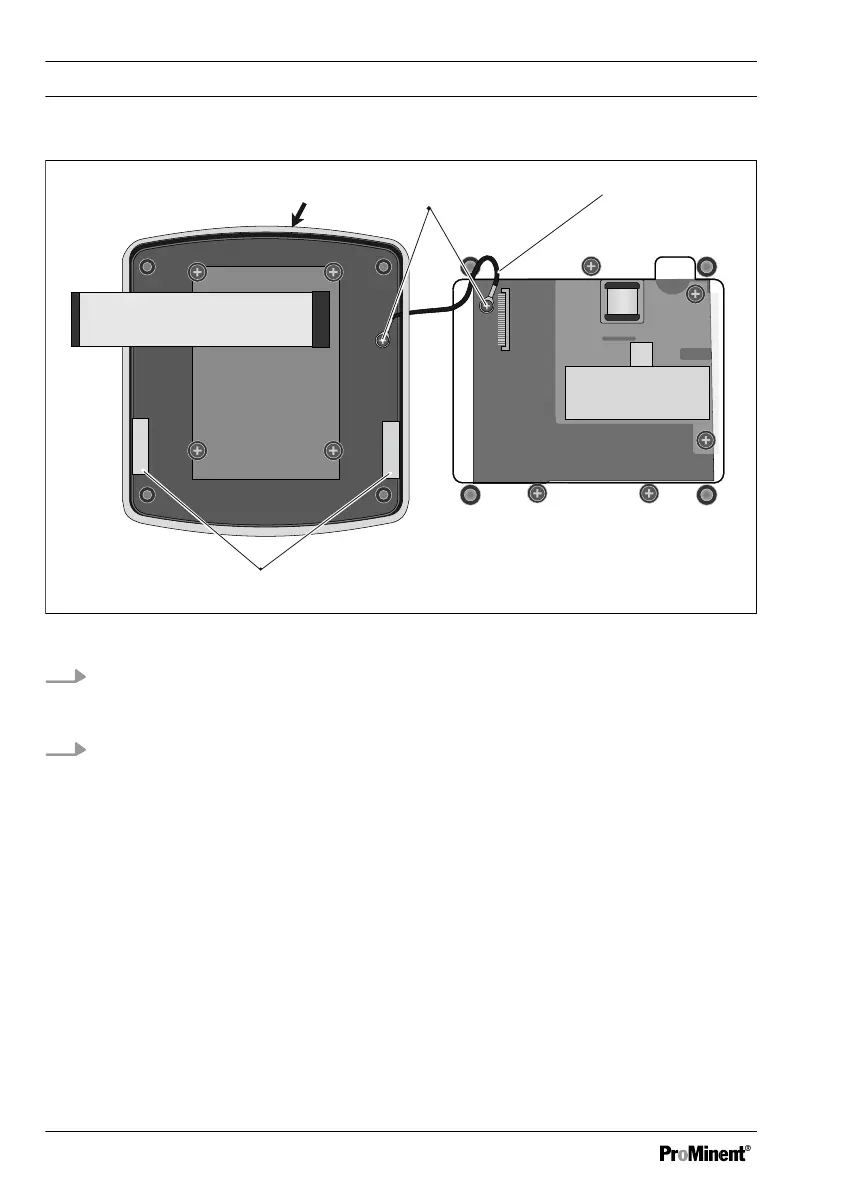

Fig. 9: Fitting the profile seal onto the top section of the controller housing
7. Position the profile seal (arrow) evenly into the groove in the top section of the
DULCOMETER
®
Compact Controller housing. Arrange the clips (3) as shown in
the figure
8. Secure the strain relief (2) using two screws (1)
