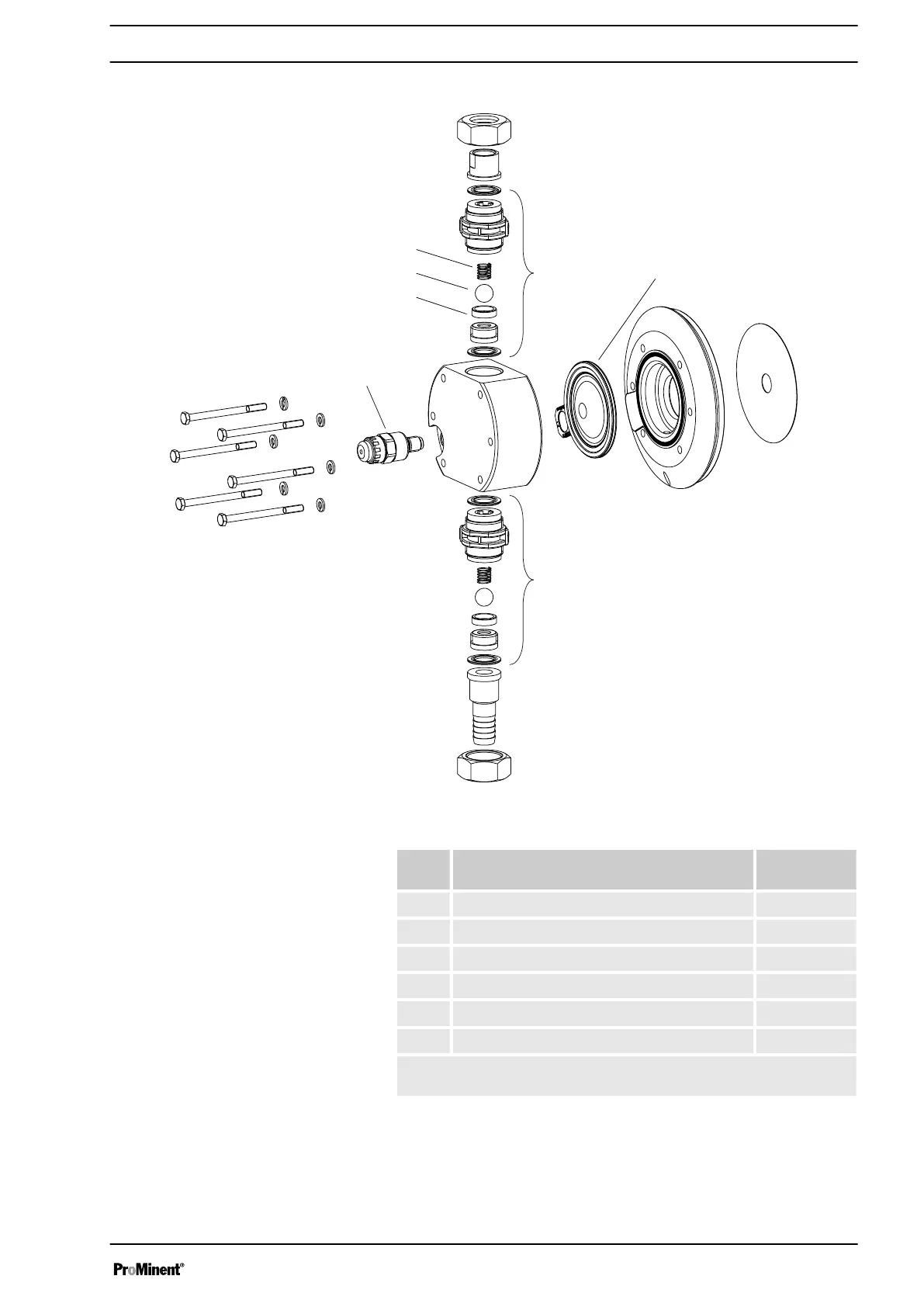

Fig. 42: Liquid end Sigma/ 1 120 SST
Item Description Type 04084,
04120, 07042
1 Spring **
2 Ball *
3 Ball seat *
4 Diaphragm rupture sensor, visual 1033323
5 Valve 809404
6 Multi-layer diaphragm 1035828*
* The items listed are included in the spare parts kit. ** Special accesso‐
ries (not included in the spare parts kit). Technical changes reserved.
Liquid end Sigma/ 1 120 SST
Exploded view drawings
