Promise Technology Pegasus32 Series
To migrate a logical drive:
1. Click on the Background Activities icon.
The list of background activities appears.
2. Mouse-over Migrate and click the Start button.
3. In the Select Disk Array dropdown menu, choose the source disk array.

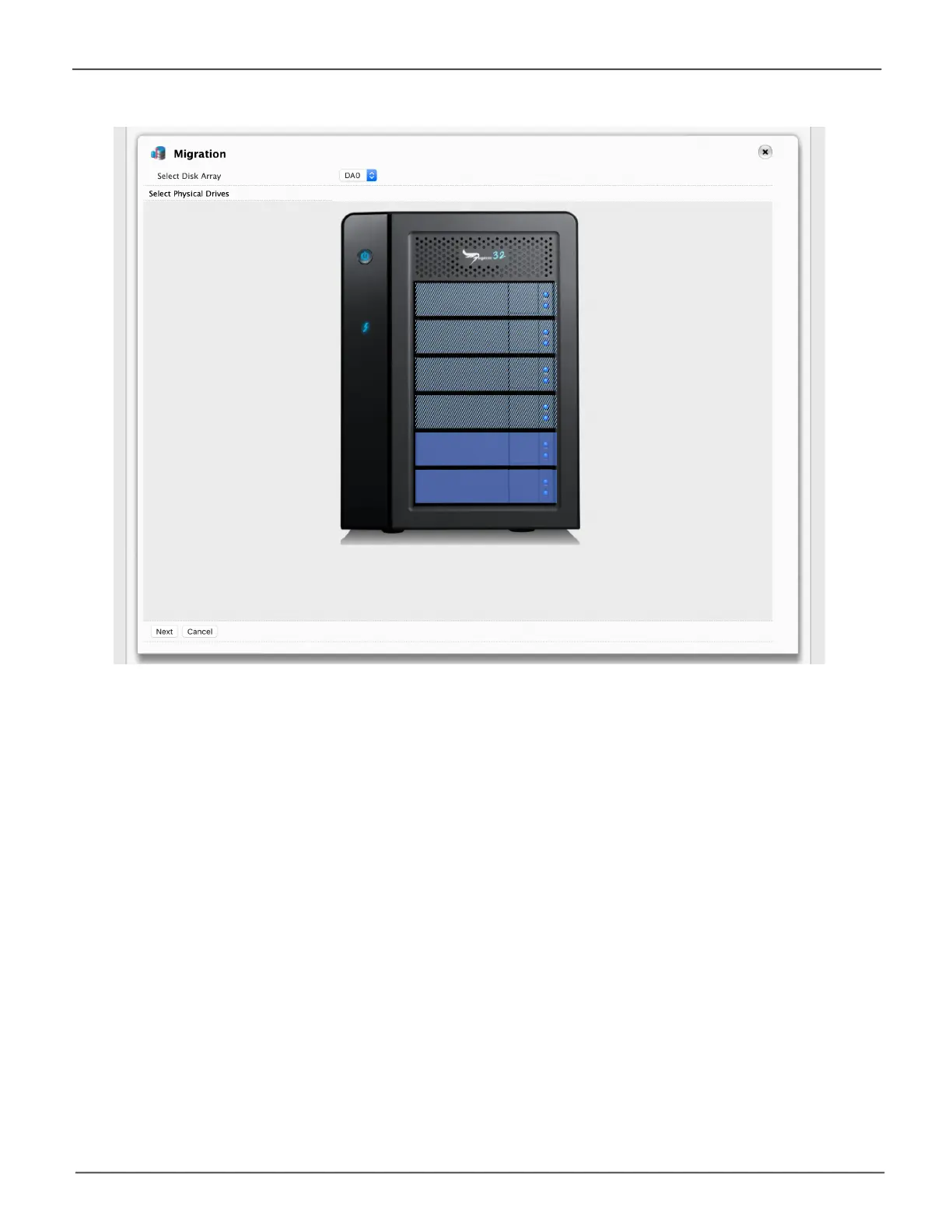

4. In the Select Physical Drives diagram, click the drives to add them to your array.
TheIDnumbersofthechosendrivesappearintheeldbelowthediagram.
5. Click the Next button.
6. Check the box next to the logical drive you want to modify.
7. From the dropdown menu, choose a target RAID level.
The choice of RAID levels depends the number of physical drives in the disk array. See the Note
below.
Migraon
