TroubleshootingPegasus32 Product Manual
Checking LEDs
When you boot Pegasus unit, the Power Button LED turns orange. When fully booted, the LED turns
blue. See page 102, Figure 1.
See “Subsystem LEDs” on page 102.
The drive carrier Power / Status LEDs turn blue if a physical drive is installed. See “Drive Carrier LEDs”
on page 103.

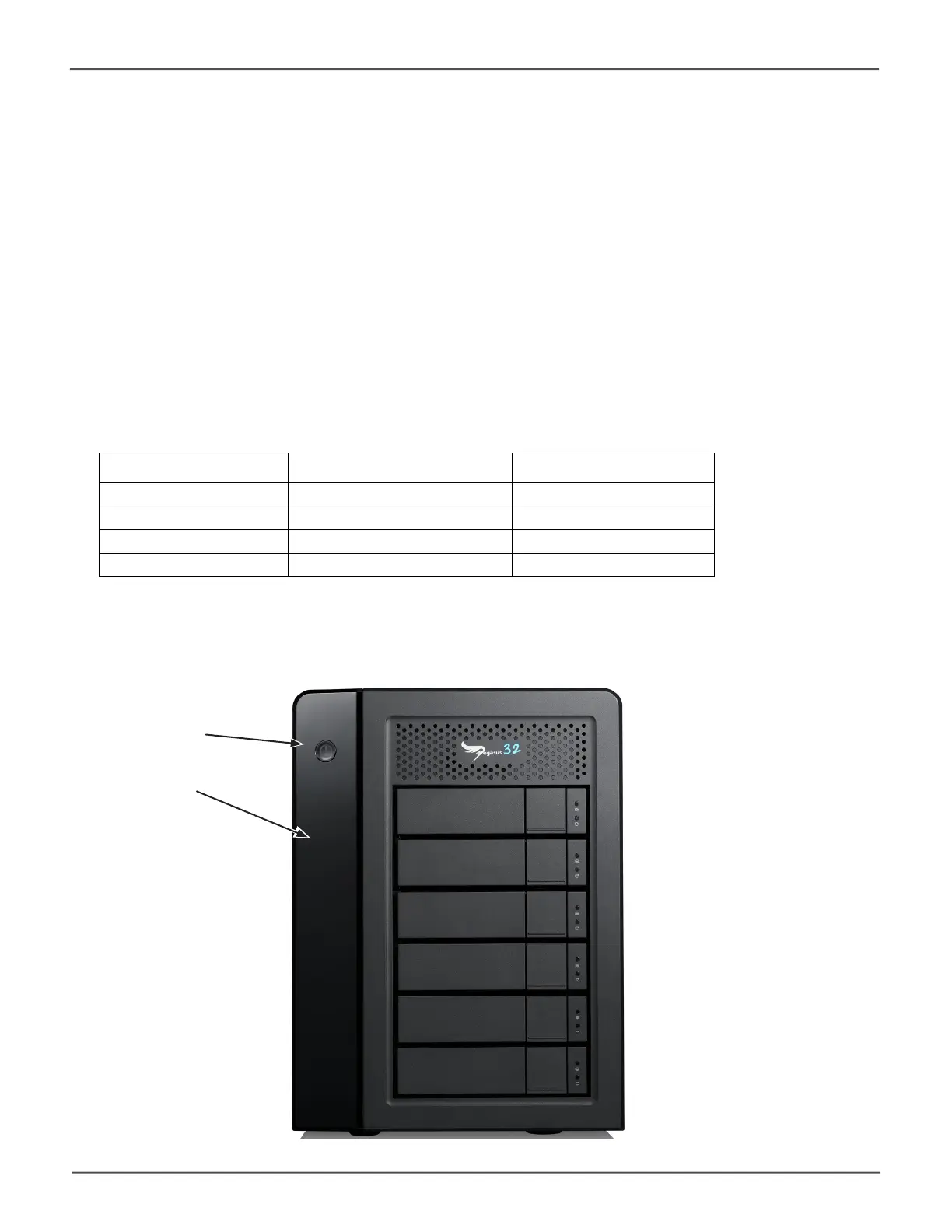

Subsystem LEDs
The Pegasus subsystem LEDs are the Power Button and the Thunderbolt ports.
State PowerButton LinkLEDs
Dark No power No connection
Blue Normal Normal
Flashing Blue — Activity
Orange Booting or shutting down —
Power Button/
Status LED
Link LED
Subsystem LEDs
