Connect the power cord
To connect the power cord the Pegasus32 unit:

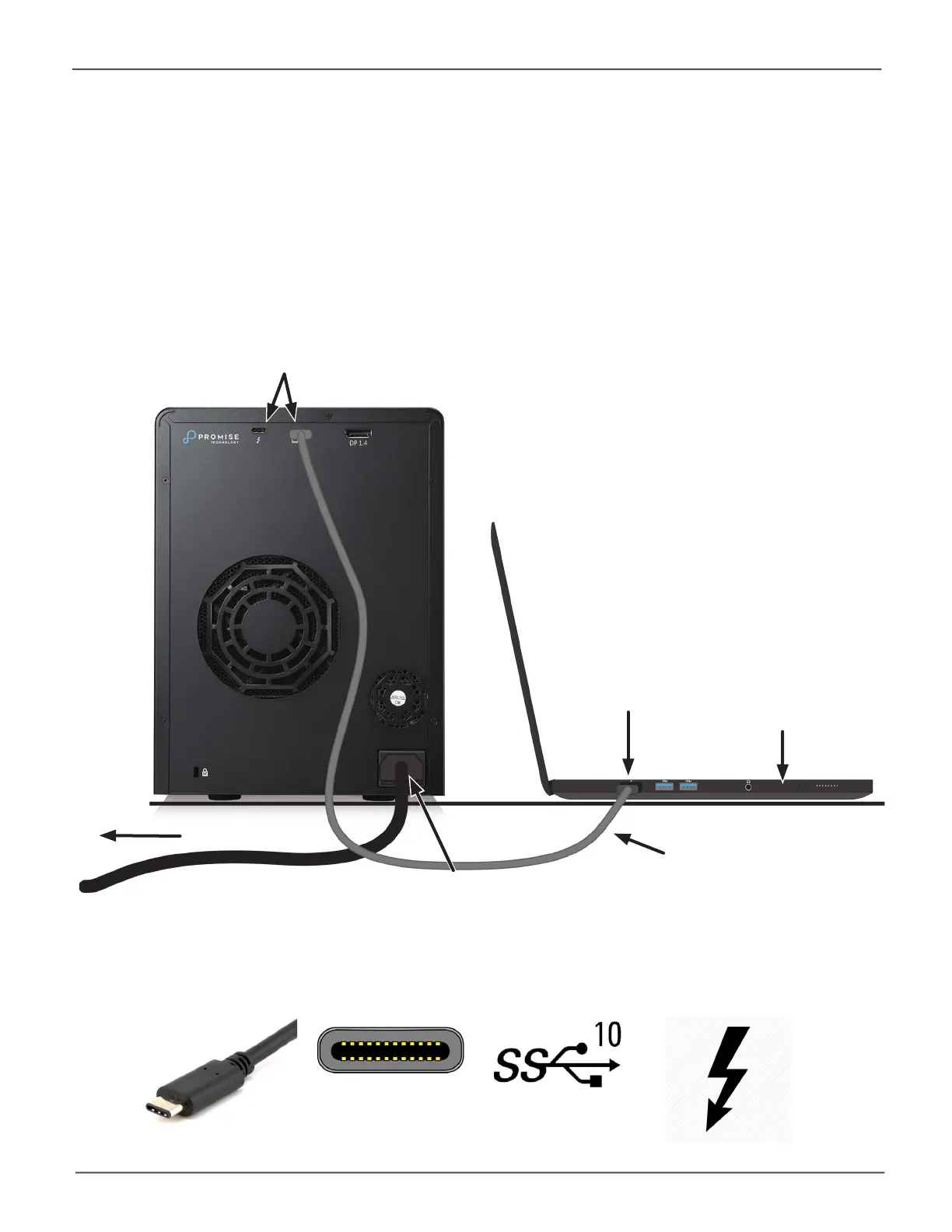

1. Attach the power cord on the back of the Pegasus32 unit. See the illustration below.
2. Plug the other end into a suitable power source.
Thunderbolt™ 3 / USB 3.2 Gen 2 data connecon and power connecon
To power source
Power cable
Thunderbolt™ 3 / USB cable
Thunderbolt™3/USB3.2Gen2Type-Cports
Computer
Thunderbolt™ 3
orUSB3.2Gen2Type-C
port on computer
MakesurethecomputerportisaType-Cfemaleconnection.IftheportisaThunderbolt™3port,youwillsee
aThunderbolt™iconnexttotheport.IftheportisaUSB3.2Gen2port,youwillseetheUSB3.2Gen2icon
next to the port.
Type-C Male connector Type-C Female port USB3.2Gen2icon Thunderbolt™ icon
